Crosstrail Disc
$600.00
Part No.

Crosstrail Disc

$600.00
Part No.  106407
load-spinner
Crosstrail Disc
Overview
Technical Specifications
Geometry
Reviews

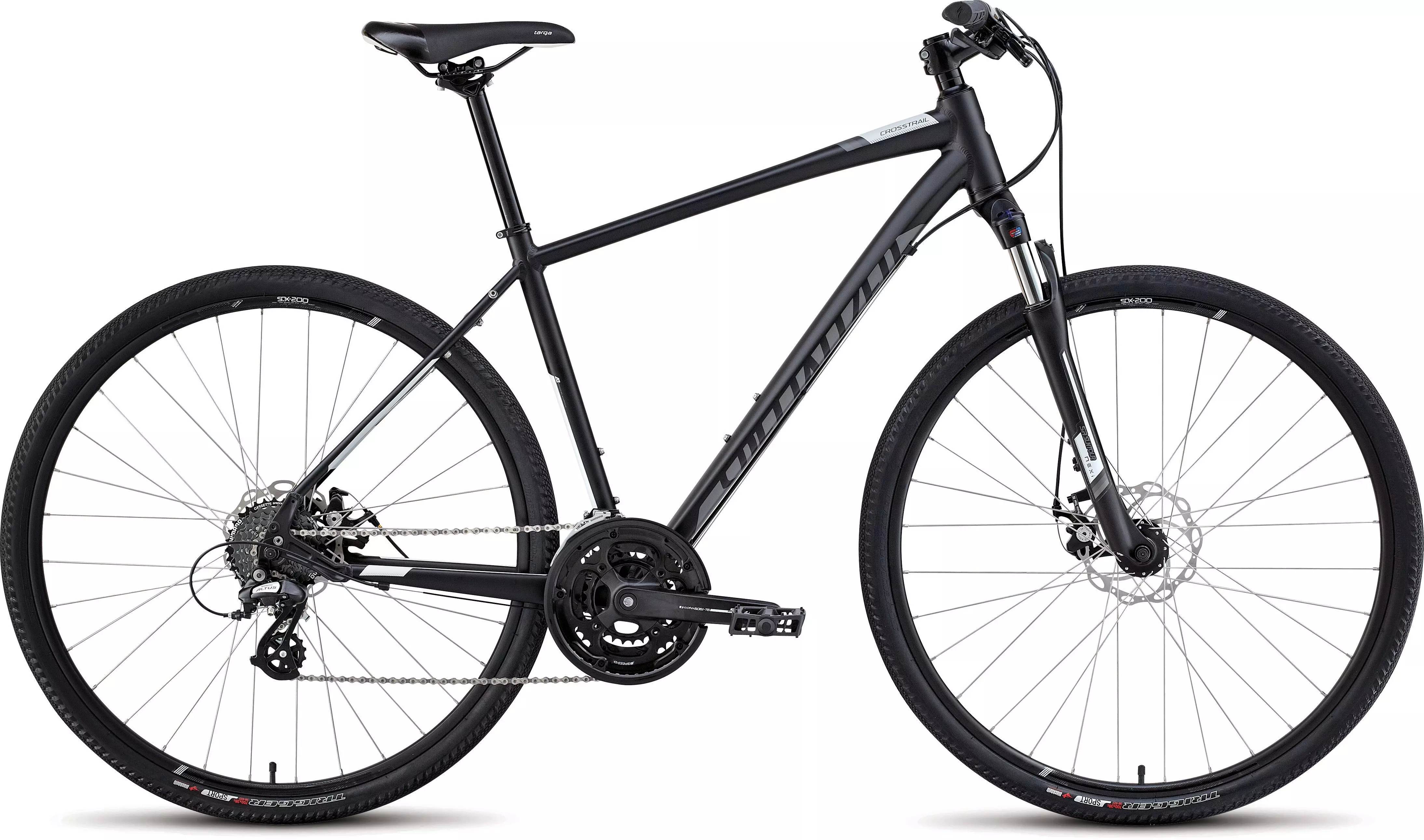

When you're at the gym, you use equipment that works for you. Likewise, you need a bike that performs exactly how you need it to—versatile, comfortable, and efficient. That's why our Crosstrail Disc comes equipped with a custom suspension fork with a lockout feature for fast and efficient use over any surface. To build on this blend of comfort and speed, the frame is built from lightweight A1 Premium aluminum tubing with a geometry that's made to fit just right from the minute you get on the bike. Add in a selection of strong, no-fuss components, reliable mechnical disc brakes, and rack/fender mounts, and you get a bike that's ready to roll wherever you choose to take it.
  • Working with our Body Geometry team, we designed a frame that strikes the optimal balance between comfort and efficiency. The A1 Premium aluminum tubing keeps the bike ultra-light, while the rack, fender, and disc mounts give you an incredibly versatile package.
  • Custom suspension fork features our Multi-Circuit Damping technology to eliminate any "pogo" effect over its 63mm of travel. This means that its hydraulic damped suspension and rebound will effectively smooth out bumpy or rough terrain.
  • The Targa Comp Saddle and XCT grips were developed with Body Geometry to increase blood flow and relieve pressure on soft tissue, ultimately resulting in increased comfort over short and long rides alike.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.8mm
HEADSET FSA, semi-integrated bearings
FRAME Specialized A1 Premium Aluminum, Fitness Geometry, fully-manipulated butted tubing, IS disc mount, fender/rack mounts
WHEELS
FRONT HUB Specialized, Hi Lo disc, QR, 32h
REAR HUB Specialized, Hi Lo disc, QR, 32h
SPOKES Stainless, 14g
FRONT TIRE Specialized Trigger Sport, 60TPI, BlackBelt protection, 700x38mm
RIMS Alloy, double-wall, disc
REAR TIRE Specialized Trigger Sport, 60TPI, BlackBelt protection, 700x38mm
DRIVETRAIN
BOTTOM BRACKET Square taper, cartridge bearings
CHAIN KMC X8, 8-speed, w/ reusable MissingLink
CRANKSET Specialized Stout, forged alloy, 48/38/28T, w/ chainguard
CASSETTE Shimano, 8-speed, 12-32t
SHIFT LEVERS Shimano SL-M310, RapidFire Plus, 8-speed
FRONT DERAILLEUR Shimano FD-M191, top swing, dual pull
REAR DERAILLEUR Shimano Altus, 8-speed
COCKPIT
SADDLE Body Geometry Targa Sport, steel rails, SWAT compatible mounts, 155mm
SEATPOST Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm
GRIPS Specialized Body Geometry XCT, lock-on
HANDLEBARS Specialized, 6061 alloy, 8-degree backsweep, 5-degree upsweep, 25mm rise, 25.4mm
STEM Forged alloy, 4-bolt, 10-degree rise
BRAKES
BRAKE LEVERS Tektro
FRONT BRAKE Tektro Aries, mechanical disc, organic pads, 160mm rotor
REAR BRAKE Tektro Aries, mechanical disc, organic pads, 160mm rotor
ACCESSORIES
PEDALS Nylon, w/ reflectors
SUSPENSION
FORK Custom SR Suntour i-NEX, custom Multi-Circuit Damping, custom coil spring weights, 63mm travel, hydraulic lockout, preload adjust, 1-1/8"" steerer, alloy lowers, Hi-Ten 28mm stanchions, post disc mount

Geometry

Geometry Chart

CrossTrail - Geometry

S M L XL XXL
  S M L XL XXL
Stem Length 60mm 75mm 90mm 90mm 100mm
Crank Length 170mm 170mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 350mm 350mm 350mm
Handlebar Width 680mm 680mm 680mm 680mm 680mm
Reach 400mm 406mm 417mm 427mm 432mm
Stack 571mm 586mm 600mm 614mm 633mm
Wheelbase 1063mm 1073mm 1089mm 1105mm 1116mm
Bike Stand-Over Height 737mm 772mm 800mm 833mm 868mm
Head-Tube Length 90mm 105mm 120mm 135mm 155mm
Front-Center 625mm 635mm 651mm 667mm 677mm
Fork Rake/Offset 38mm 38mm 38mm 38mm 38mm
Head-Tube Angle 70.5° 70.5° 70.5° 70.5° 70.5°
Trail 88mm 88mm 88mm 88mm 88mm
B-B Height 297mm 297mm 297mm 297mm 297mm
Chain-Stay Length 445mm 445mm 445mm 445mm 445mm
Fork Length (full) 465mm 465mm 465mm 465mm 465mm
Seat-Tube Angle 73° 73° 73° 73° 73°
B-B Drop 60mm 60mm 60mm 60mm 60mm
Seat-Tube Length 394mm 445mm 483mm 533mm 584mm
Top-Tube Length (horizontal) 575mm 585mm 600mm 615mm 625mm
