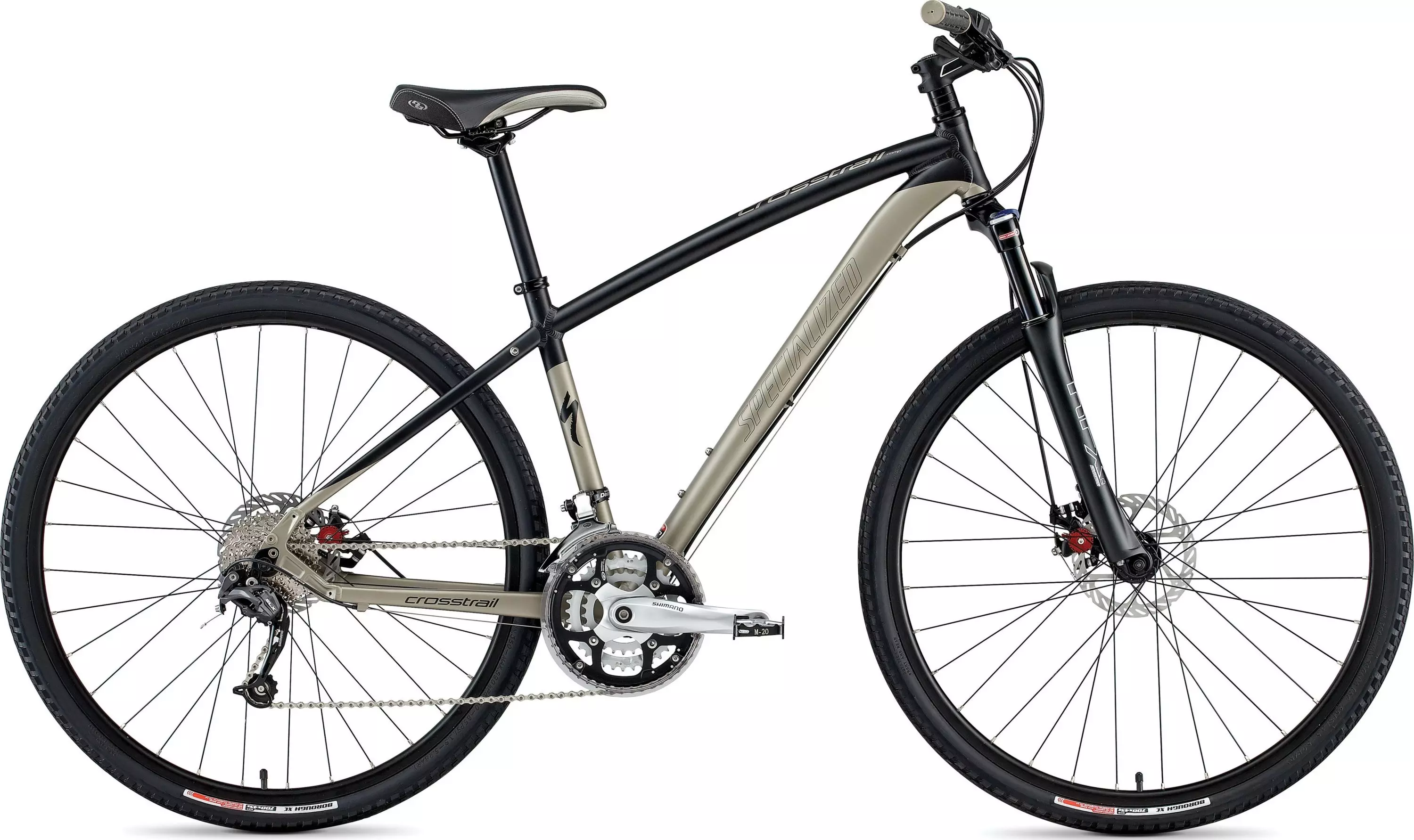

Crosstrail Comp
Part No.

Crosstrail Comp

Part No.  22777
Crosstrail Comp
Technical Specifications
As the only true hybrid bike on the market, our Crosstrail™ owns the title of "singletrack-capable commuter bike." For riders who want one bike for all terrain, with the versatility to handle road, mountain and everything in between, the Crosstrail's fast-rolling 700c tires and true MTB drivetrain will cover all your bases.
  • Roll with confidence on sturdy, double-walled 26-inch alloy rims
  • Avid BB5 mechanical disc brakes with G2 Clean Sweep rotors for controlled stopping power
  • 75mm-travel coil-sprung fork with hydraulic damping for greater adjustability and control
  • Specialized Indiex XC saddle uses front and rear bumpers and a wide platform for extra comfort
  • Shimano SLX rear derailleur with Shadow technology delivers rock-solid performance and extra derailleur protection

Technical Specifications

SEAT BINDER Forged alloy
HEADSET 1-1/8"" threadless, sealed loose ball bearings
FRAME Crosstrail A1 Premium Aluminum, formed TT, ORE DT, forged dropouts w/ replaceable hanger, integrated kickstand mount, chainstay disc mount
FRONT HUB Forged alloy, Hi Lo flange, machined disc mount, QR
REAR HUB Shimano FH-M475, forged alloy, disc 6-bolt, QR
INNER TUBES Schraeder valve
SPOKES 1.8mm (15g) stainless
RIMS Alex Crosstrail, 700c, alloy double wall w/ eyelets, 32h
FRONT TIRE Specialized Borough XC Sport 700x45c, 60TPI, wire bead
REAR TIRE Specialized Borough XC Sport 700x45c, 60TPI, wire bead
BOTTOM BRACKET Cartridge bearing, square spindle with crank stop right side and capless bolts
CHAIN KMC X-9, 9-speed w/ reusable Missing Link
CRANKSET Shimano FC-M443, 9-Speed, w/ chainguard
CASSETTE Shimano CS-HG50, 9-speed, 11-32t
SHIFT LEVERS Shimano Deore 9-speed, rapid fire
FRONT DERAILLEUR Shimano FD-M590, 31.8mm clamp, top swing, dual pull
CHAINRINGS 48 x 36 x 26T w/ chainguard
REAR DERAILLEUR Shimano SLX, 9-speed
SADDLE Specialized Body Geometry Indie XC, front and rear bumpers, 143mm width
SEATPOST Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm
GRIPS Specialized Enduro, closed end, 130mm
HANDLEBARS Alloy riser bar, 31.8mm, 25mm rise, 620mm wide, 8 degree back sweep, 8 degree up
STEM 3D forged alloy, 4-bolt, 31.8mm, 7 degree rise
BRAKE LEVERS Avid FR-5, alloy, two-finger linear pull
FRONT BRAKE Avid BB5, mechanical disc w/ G2 Clean Sweep rotor
REAR BRAKE Avid BB5, mechanical disc w/ G2 Clean Sweep rotor
PEDALS Alloy body, sealed bearings
FORK SR SunTour SF10-NRX-D-LO-700, magensium lower, Cr-Mo stanchions, hydraulic lock out


Geometry Chart

CrossTrail - Geometry

Wheelbase 1095mm 1105mm 1121mm 1125mm
Seat-Tube Length, B-B Center to Top 381mm 432mm 483mm 533mm
Head-Tube Length 90mm 100mm 110mm 120mm
Top-Tube Length, Horizontal 575mm 590mm 605mm 635mm
Front-Center 648mm 658mm 673mm 681mm
Head-Tube Angle 69.5° 70° 70° 70.5°
Fork Rake 38mm 38mm 38mm 38mm
Trail 91mm 88mm 88mm 85mm
Stand-Over Height 741mm 778mm 812mm 844mm
Chain-Stay Length 455mm 455mm 455mm 455mm
Seat-Tube Angle 74° 74° 74° 72.5°
B-B Drop 65mm 65mm 65mm 65mm
Seat-Post Length 0mm 0mm 0mm 0mm
