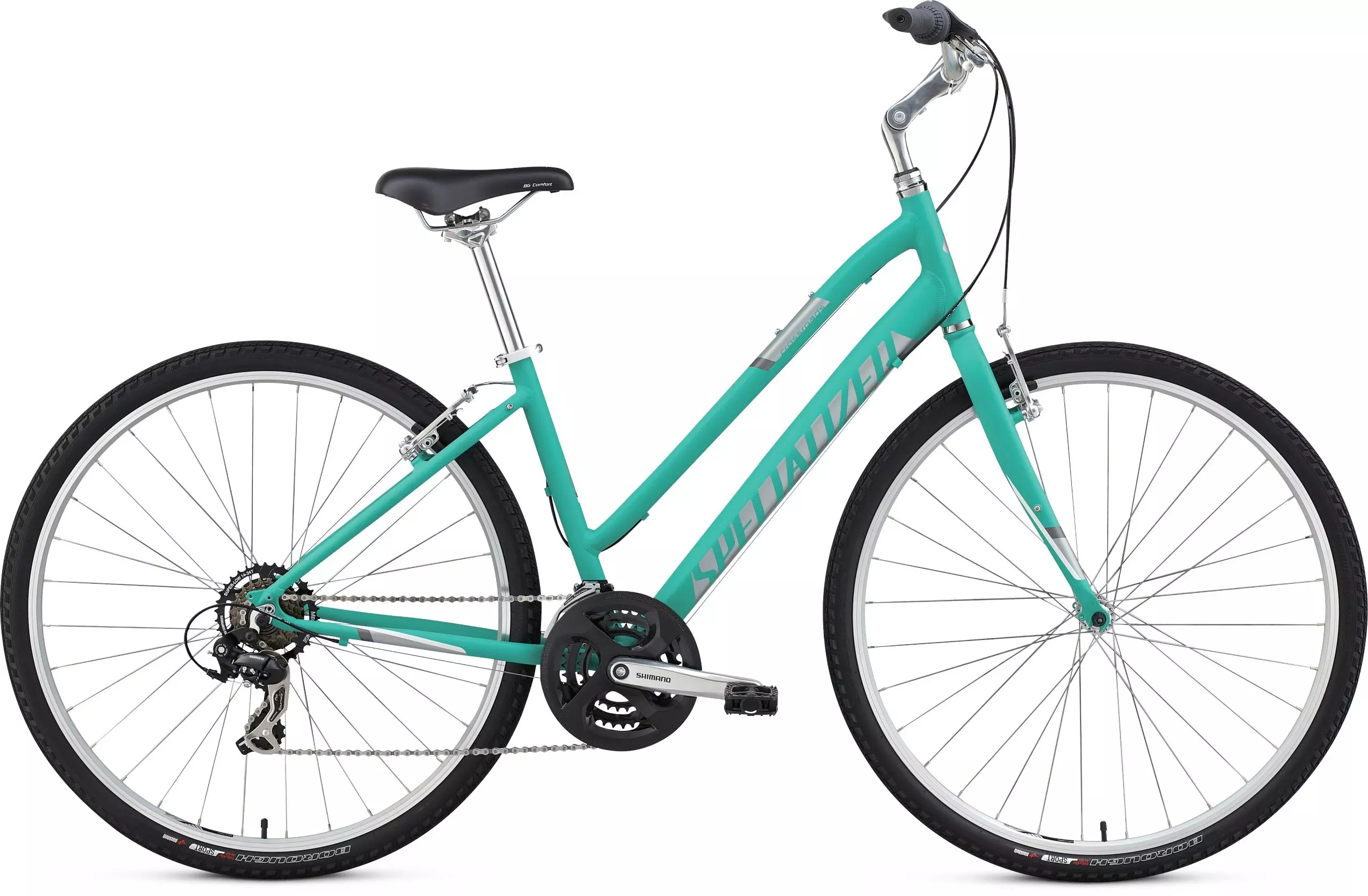

Crossroads Step Through
Part No.

Crossroads Step Through

Part No.  134477
load-spinner

The Crossroads Step-Through is your companion to a better, fitter, happier you—whether it be along the road or dirt path. It's a tall order, sure, but it's up for the challenge.

To start, we included wide 45mm tires for confident handling as you're speeding along the bike path, and then came a hand-selected component package that's nothing short of reliable. Of course, we devoted ourselves to achieving the perfect geometry for comfort and performance over a diverse set of riding styles, ultimately making the Crossroads a purpose-built machine to help you stay fit and healthy. And with the rugged versatility of its aluminum frame, easy on and off step-through design, plus rack and fender mounts, it ensures that this bike earns its keep in your household.

So get out there, enjoy the sunshine, and achieve your goals with the Crossroads Step-Through.

  • The sturdy A1 Premium Aluminum frame, combined with a steel fork and rack/fender mounts, delivers reliable handling for a confident ride and plenty of options for carrying your goodies.
  • Durable and wide 700x45mm Specialized Borough Armadillo tires provide a stable ride on dirt paths and roads, and feature super-tough Armadillo puncture protection.
  • The Body Geometry Comfort saddle provides comfort and support, while also reducing soft tissue pressure.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, QR, 31.8mm
FORK Steel, fender/rack mounts
FRAME Specialized A1 Premium Aluminum, formed tubes, fender/rack mounts
WHEELS
FRONT HUB Specialized V-brake, alloy, loose ball bearings, 9mm, QR, 32h
REAR HUB Specialized V-brake, loose ball bearings, QR, 32h
INNER TUBES Specialized, 700x45mm tube, Presta valve
SPOKES Stainless, 14g
FRONT TIRE Borough, 700x45mm, 60 TPI, BlackBelt protection
RIMS 700C, 6061 aluminum, double-wall
REAR TIRE Borough, 700x45mm, 60 TPI, BlackBelt protection
DRIVETRAIN
BOTTOM BRACKET BSA, square taper, cartridge bearings
CHAIN KMC Z7, 7-speed w/ reusable Missing Link™
CRANKSET Shimano Tourney w/ chainguard
CASSETTE Shimano Tourney freewheel, 7-speed, 14-34t
SHIFT LEVERS Shimano Tourney, Revo-style, 7-speed w/ gear display
FRONT DERAILLEUR Shimano Tourney, 31.8mm adapter, top-swing
CHAINRINGS 48/38/28T
REAR DERAILLEUR Shimano Tourney, 7-Speed
COCKPIT
SADDLE Body Geometry Comfort, steel rails, 200mm
TAPE Specialized Body Geometry Contour, lock-on
SEATPOST Dual-Bolt Diecast Head, AL6061 Post, Spring Suspension, 27.2mm
HANDLEBARS Alloy, 15-degree backsweep, 4-degree upsweep, 60mm rise, 25.4mm
STEM Quill, adjustable, alloy
BRAKES
FRONT BRAKE V-brake, linear pull
REAR BRAKE V-brake, linear pull
ACCESSORIES
PEDALS Specialized City, platform

Geometry

Geometry Chart

- Geometry


Crank Length 170mm 170mm 170mm 170mm
Stem Length 85mm 85mm 85mm 85mm
Seatpost Length 300mm 350mm 350mm 350mm
Saddle Width 200mm 200mm 200mm 200mm
Handlebar Width 645mm 645mm 645mm 645mm
Reach 360mm 371mm 375mm 385mm
Top Tube Length, Horizontal 555mm 570mm 585mm 600mm
Stack 566mm 577mm 611mm 625mm
Wheelbase 1072mm 1082mm 1083mm 1098mm
Chainstay Length 465mm 465mm 465mm 465mm
Front Center 615mm 625mm 625mm 641mm
BB Drop 65mm 65mm 65mm 65mm
BB Height 291mm 291mm 291mm 291mm
Seat Tube Angle 71° 71° 71° 71°
Head Tube Angle 69° 69.5° 70.5° 70.5°
Seat Tube Length 370mm 385mm 430mm 480mm
Head Tube Length 135mm 145mm 175mm 190mm
Bike Standover Height 592.3mm 598.3mm 613.5mm 623mm
Fork Rake/Offset 55mm 55mm 51mm 51mm
Fork Length, Full 410mm 410mm 410mm 410mm
Trail 78mm 74mm 72mm 72mm
