Crossroads Elite
Overview
Technical Specifications
Geometry
Reviews

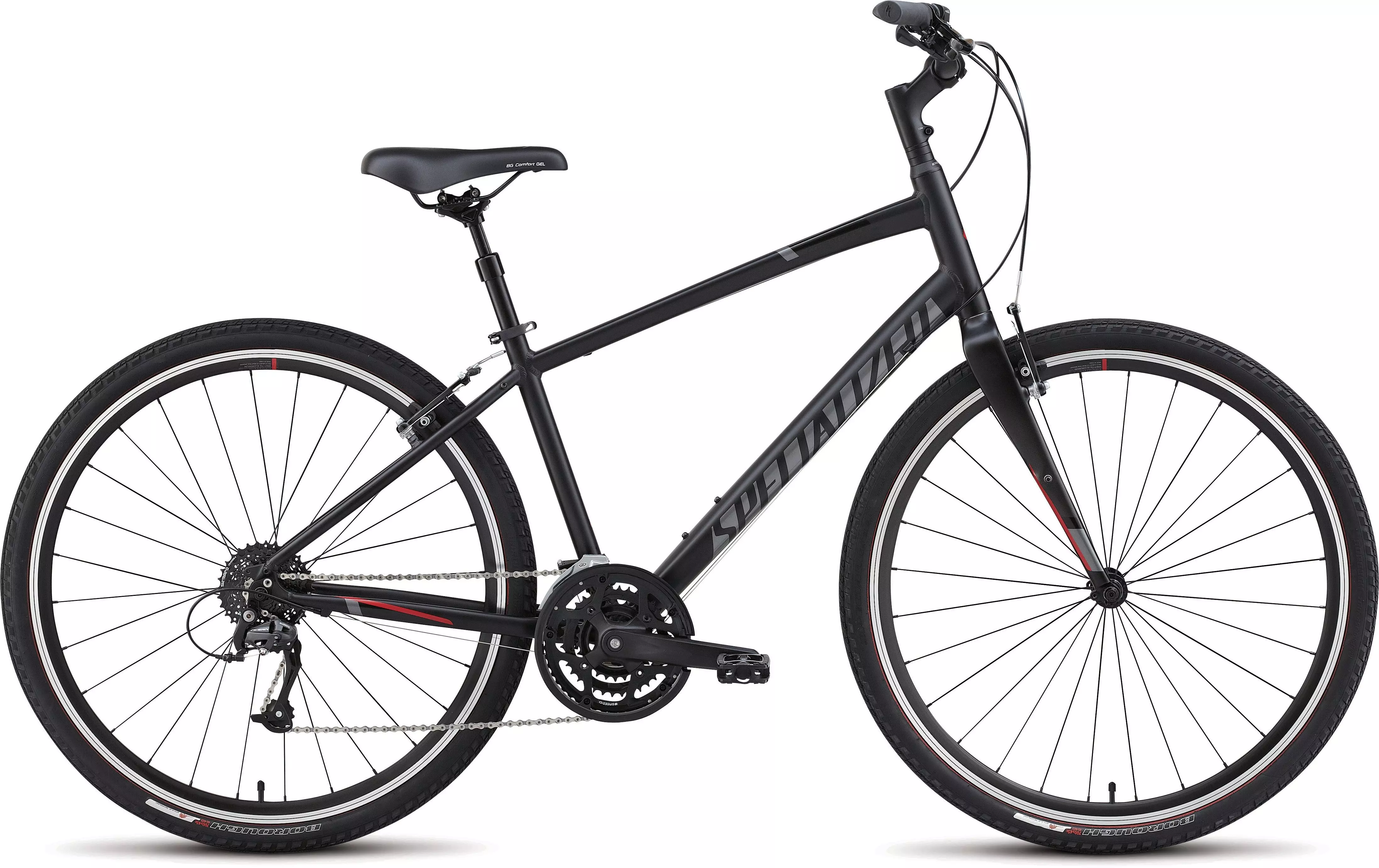

Blaze the bike path, explore the outdoors! Fun and fast, forgiving and stable, the Crossroads Elite, with 27-speeds and Armadillo flat-protection tires, is the perfect tool to get out there and test boundaries—both yours and the neighborhood's.
  • Specialized Borough Armadillo 700x45c tires prevent flats and roll fast
  • Specialized Body Geometry Contour, lock-on grips for safety and comfort
  • Body Geometry Comfort Gel saddle has dense foam plus gel for the most comfortable ride
  • A1 Premium Aluminum frame w/ custom geometry for quick and correct fit to size
  • Specialized FACT carbon, straight blade fork for lightweight and precise steering
  • Shimano Acera, 9-speed, direct mount derailleur for quick and accurate shifts

Technical Specifications

DRIVETRAIN
BOTTOM BRACKET Square spindle, cartridge bearings, capless bolts
CHAIN KMC X9, 9-speed, reusable Missing Link
CRANKSET Shimano FC-M361, replaceable rings, w/ chainguard
SHIFT LEVERS Shimano Acera Rapidfire Plus, 9-speed, w/ optical display
FRONT DERAILLEUR Shimano Acera, top swing, dual-pull
CASSETTE Shimano, 9-speed, 11-32
CHAINRINGS 48/36/26
REAR DERAILLEUR Shimano Acera, 9-speed
WHEELS
FRONT HUB Double-sealed, QR, 28h
REAR HUB Double-sealed, QR, 28h
SPOKES Stainless, 14g
RIMS 700c, alloy double-wall, CNC sidewalls, pin joint, 30mm, 28h
FRONT TIRE Specialized Borough Armadillo, 60TPI, wire bead, 700x45c
REAR TIRE Specialized Borough Armadillo, 60TPI, wire bead, 700x45c
COCKPIT
SADDLE Body Geometry Comfort Gel, 200mm
TAPE Specialized Body Geometry Contour, Kraton, lock-on
SEATPOST Suspension Plus, 2-bolt, 27.2mm
HANDLEBARS Specialized riser, alloy, 15-degree backsweep, 4-degree upsweep, 60mm rise, 25.4mm
STEM Specialized 3D forged alloy, 25-degree rise, w/ integrated top cap, 31.8mm clamp
BRAKES
FRONT BRAKE Die-cast alloy V-brake, alloy adjuster housing, 1 pc. 60mm pads
BRAKE LEVERS Die-cast alloy, Kraton pad
REAR BRAKE Die-cast alloy V-brake, alloy adjuster housing, 1 pc. 60mm pads
ACCESSORIES
PEDALS Comfort, composite body w/ rubber top, sealed loose ball bearings
FRAMESET
HEADSET 1-1/8"" upper/lower, integrated cartridge bearings, 15mm cone spacer
SEAT BINDER Alloy, nylon/glass fiber washer, QR, 31.8mm
FORK Specialized FACT carbon, straight blade, aluminum steerer/crown
FRAME Specialized A1 Premium Aluminum, custom formed tubes, forged dropouts w/ replaceable derailleur hanger

Geometry

Geometry Chart

- Geometry

S M L XL XXL
  S M L XL XXL
Crank Length 170mm 170mm 175mm 175mm 175mm
Stem Length 75mm 75mm 95mm 95mm 95mm
Seatpost Length 300mm 350mm 350mm 350mm 350mm
Handlebar Width 645mm 645mm 685mm 685mm 685mm
Reach 405mm 405mm 415mm 425mm 433mm
Stack 578mm 611mm 625mm 639mm 658mm
Bottom Bracket Drop 65mm 65mm 65mm 65mm 65mm
Chainstay Length 465mm 465mm 465mm 465mm 465mm
Front Center 655mm 656mm 671mm 685mm 700mm
Seat Tube Angle 71° 71° 71° 71° 71°
Head Tube Angle 69.5° 70.5° 70.5° 70.5° 70.5°
Head Tube Length 165mm 195mm 210mm 225mm 245mm
Top Tube Length (Actual) 574mm 582mm 596mm 613mm 636mm
Top Tube Length (Horizontal) 604mm 615mm 630mm 645mm 660mm
Seat Tube Length, Center to Top 385mm 430mm 480mm 540mm 610mm
Standover Height 717mm 755mm 790mm 832mm 879mm
Wheel Base 1112mm 1113mm 1128mm 1143mm 1157mm
Bottom Bracket Height 291mm 291mm 291mm 291mm 291mm
