Crossroads Elite
Overview
Technical Specifications
Geometry
Reviews

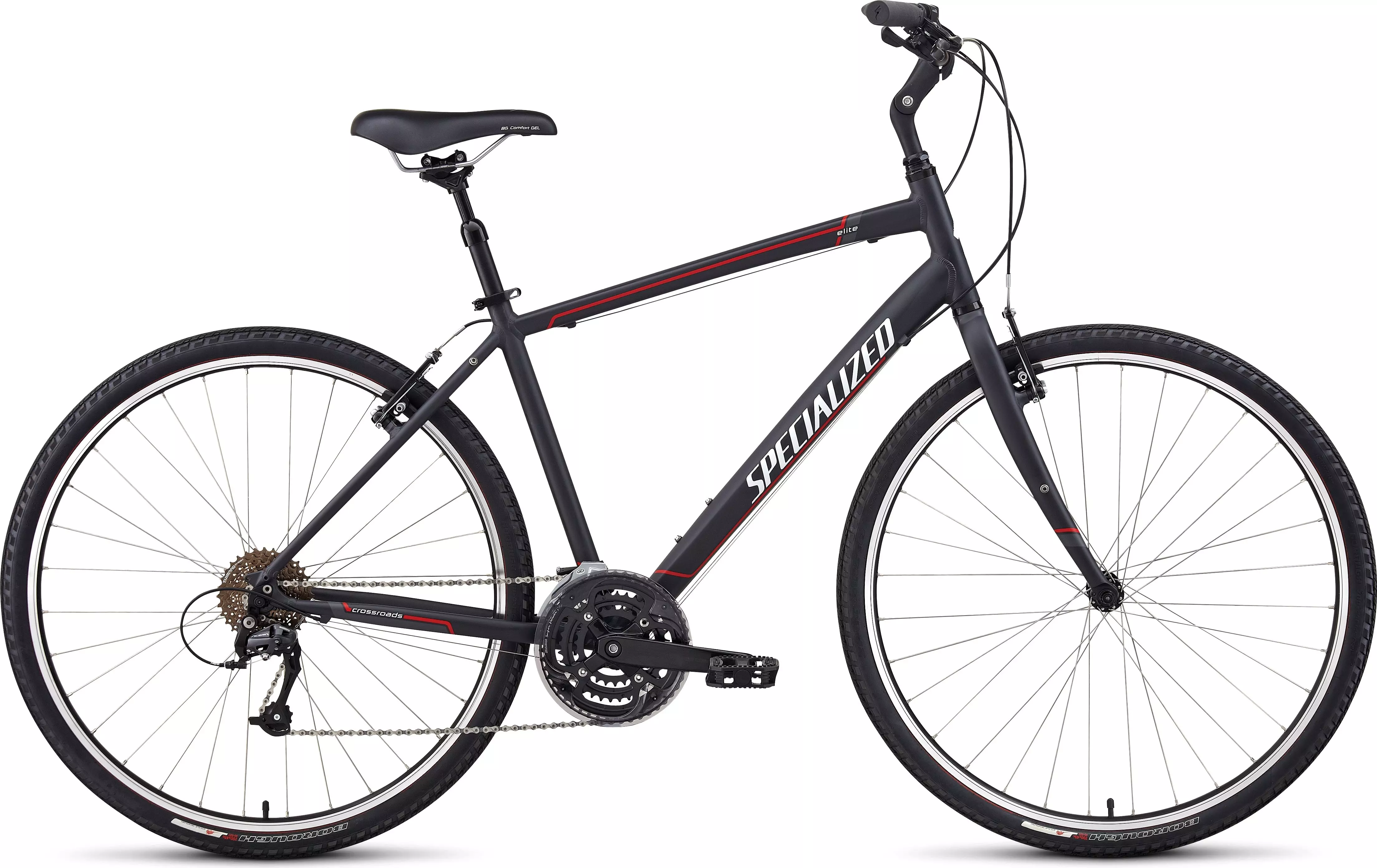

Blaze the bike path, explore the outdoors! Fun and fast, forgiving and stable, the Crossroads Elite, with 27-speeds and Armadillo flat-protection tires, is the perfect tool to get out there and test boundaries—both yours and the neighborhood's.
  • A1 Premium Aluminum frame with custom geometry for quick and correct fit to size, includes integrated kickstand mount
  • Lightweight, rigid alloy fork delivers improved handling, plus rack/fender mounts for added utility
  • Smooth-rolling and super-tough Borough tires can comfortably handle any terrain
  • Body Geometry Comfort closed-end grips for an ergonomic contact point to keep hands fatigue-free, with bell for safety
  • Body Geometry Comfort Gel saddle has dense foam plus gel to give the most comfortable ride, but still allows you full range of motion on the bike

Technical Specifications

DRIVETRAIN
BOTTOM BRACKET Cartridge bearings, square spindle, capless bolts
CHAIN KMC X9
CRANKSET SR Suntour XCR, 9-speed, square spindle, w/ chainguard
SHIFT LEVERS Shimano Acera, 9-Speed, Rapidfire
FRONT DERAILLEUR Shimano Acera, top-swing, dual-pull
CASSETTE Shimano, 9-speed, 11-32
CHAINRINGS 48/36/26, w/ chainguard
REAR DERAILLEUR Shimano Acera, 9-speed
WHEELS
FRONT HUB Double-sealed, ground race, dual-lock nuts w/ 17mm contact side, 5mm QR
REAR HUB Double-sealed, dual-lock nuts, steel axle, 5mm QR
INNER TUBES Standard Schrader valve
SPOKES Stainless, 14g (2.0mm)
RIMS Alloy double-wall, CNC sidewalls, 32h
FRONT TIRE Specialized Borough Armadillo, 60TPI, wire bead, 700x45c
REAR TIRE Specialized Borough Armadillo, 60TPI, wire bead, 700x45c
COCKPIT
SADDLE Specialized Body Geometry Comfort Gel Men's, 200mm
TAPE Specialized Body Geometry Comfort, dual compound, lock-on
SEATPOST Alloy suspension, 2-bolt, 27.2mm
HANDLEBARS Specialized riser bar, alloy, 8-degree backsweep, 60mm rise, 25.4mm
STEM Adjustable quill, die-cast alloy, 2-bolt, 150mm x 25.4mm clamp
BRAKES
FRONT BRAKE Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull
BRAKE LEVERS Alloy, four-finger, Kraton comfort lever
REAR BRAKE Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull
ACCESSORIES
PEDALS Comfort, composite body w/ rubber top, sealed loose ball bearings
FRAMESET
HEADSET 1-1/8"" FSA Intelaset, threaded, Cr-Mo cups
SEAT BINDER Alloy, QR
FORK Specialized A1 Premium Aluminum, w/ custom butting and profile
FRAME A1 Premium Aluminum, custom formed tubes, forged dropouts w/ replaceable derailleur hanger

Geometry

Geometry Chart

- Geometry

  SM MD LG XL XXL
Crank Length 170mm 175mm 175mm 175mm 175mm
Stem Length 50mm 50mm 50mm 50mm 50mm
Handle-Bar Width 660mm 660mm 660mm 660mm 660mm
Wheelbase 1111mm 1112mm 1128mm 1143mm 1158mm
Seat-Tube Length, B-B Center to Top 425mm 485mm 535mm 584mm 634mm
Head-Tube Length 145mm 175mm 190mm 205mm 225mm
Top-Tube Length, Horizontal 600mm 615mm 630mm 645mm 660mm
Front-Center 654mm 655mm 670mm 685mm 701mm
Head-Tube Angle 69.5° 70.5° 70.5° 70.5° 70.5°
Stand-Over Height 757mm 799mm 828mm 860mm 895mm
Fork Rake 55mm 51mm 51mm 51mm 51mm
Trail 74mm 72mm 72mm 72mm 72mm
Chain-Stay Length 465mm 465mm 465mm 465mm 465mm
Seat-Tube Angle 71° 71° 71° 71° 71°
B-B Drop 65mm 65mm 65mm 65mm 65mm
Seat-Post Length 350mm 350mm 350mm 350mm 350mm
