Crossroads Elite Step Through
Part No.

Crossroads Elite Step Through

Part No.  65221
Crossroads Elite Step Through
Overview
Technical Specifications
Geometry
Reviews
Back To Top

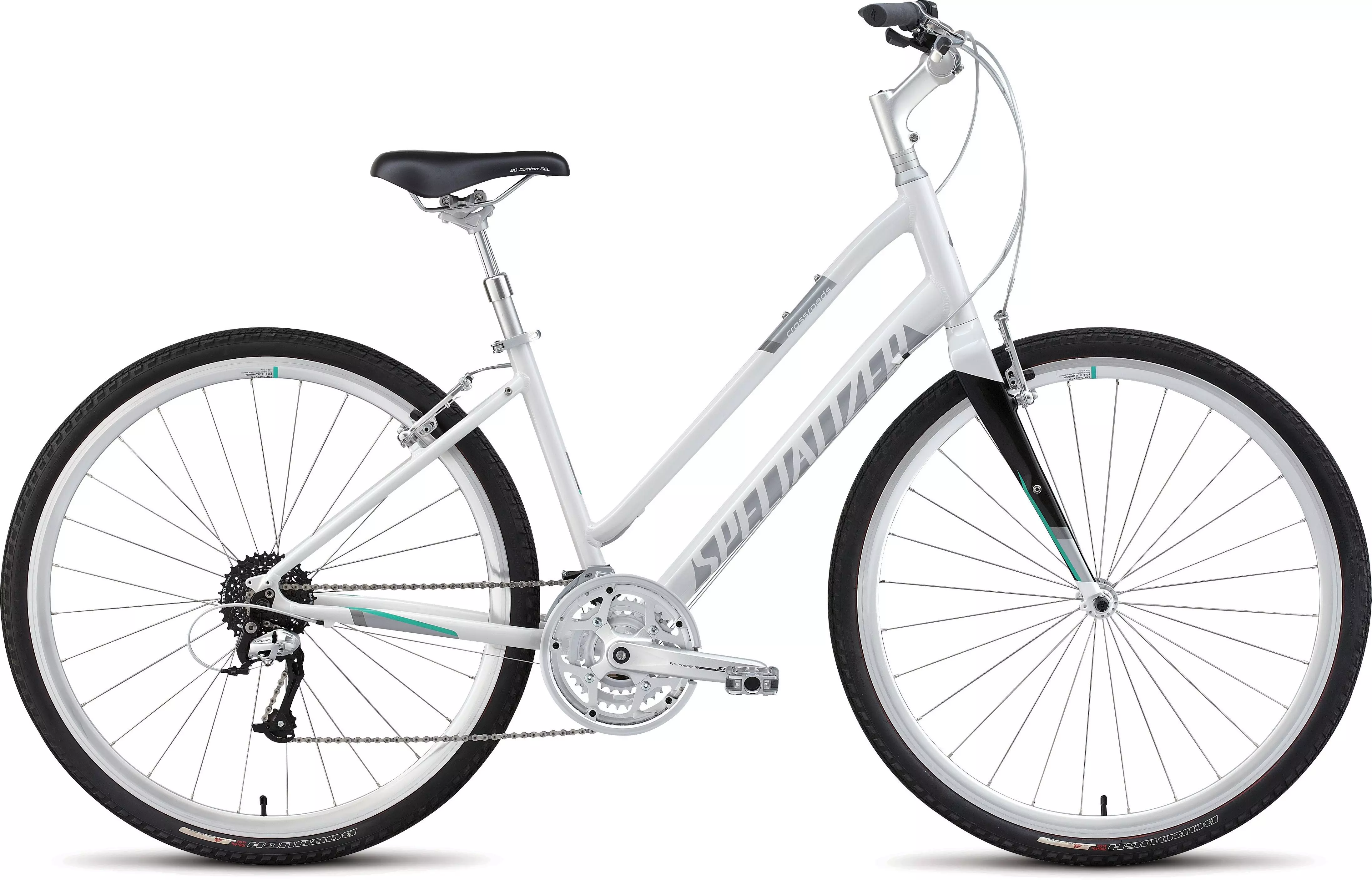

Blaze the bike path, explore the neighborhood! Fun and fast, forgiving and stable, the Crossroads Elite Step Through, with 27-speeds and Armadillo flat-protection tires, is the perfect tool to get out there and test boundaries. The step through frame makes getting on and off the bike a breeze.
  • Specialized FACT carbon, straight blade fork for lightweight and precise steering
  • Specialized Body Geometry Contour, lock-on grips for safety and comfort
  • Specialized Borough Armadillo 700x45c tires prevent flats and roll fast
  • Body Geometry Comfort Gel saddle has dense foam plus gel for the most comfortable ride
  • A1 Premium Aluminum frame w/ custom geometry for quick and correct fit to size
  • Shimano Acera, 9-speed, direct mount derailleur for quick and accurate shifts

Technical Specifications

Technical Specifications

DRIVETRAIN
CHAIN KMC X9, 9-speed, reusable Missing Link
BOTTOM BRACKET Square spindle, cartridge bearings, capless bolts
CRANKSET Shimano FC-M361, replaceable rings, w/ chainguard
FRONT DERAILLEUR Shimano Acera, top swing, dual-pull
SHIFT LEVERS Shimano Acera Rapidfire Plus, 9-speed, w/ optical display
CASSETTE Shimano, 9-speed, 11-32
CHAINRINGS 48/36/26
REAR DERAILLEUR Shimano Acera, 9-speed
WHEELS
FRONT HUB Double-sealed, QR, 28h
REAR HUB Double-sealed, QR, 28h
SPOKES Stainless, 14g
RIMS 700c, alloy double-wall, CNC sidewalls, pin joint, 30mm, 28h
FRONT TIRE Specialized Borough Armadillo, 60TPI, wire bead, 700x45c
REAR TIRE Specialized Borough Armadillo, 60TPI, wire bead, 700x45c
COCKPIT
SADDLE Body Geometry Comfort Gel Women's, 200mm
TAPE Specialized Body Geometry Contour, Kraton, lock-on
SEATPOST Suspension Plus, 2-bolt, 27.2mm
STEM Specialized 3D forged alloy, 25-degree rise, w/ integrated top cap, 31.8mm clamp
HANDLEBARS Specialized riser, alloy, 15-degree backsweep, 4-degree upsweep, 60mm rise, 25.4mm
BRAKES
FRONT BRAKE Die-cast alloy V-brake, alloy adjuster housing, 1 pc. 60mm pads
BRAKE LEVERS Die-cast alloy, Kraton pad
REAR BRAKE Die-cast alloy V-brake, alloy adjuster housing, 1 pc. 60mm pads
ACCESSORIES
PEDALS Comfort, composite body w/ rubber top, sealed loose ball bearings
FRAMESET
HEADSET 1-1/8"" upper/lower, integrated cartridge bearings, 15mm cone spacer
SEAT BINDER Alloy, nylon/glass fiber washer, QR, 31.8mm
FORK Specialized FACT carbon, straight blade, aluminum steerer/crown
FRAME Specialized A1 Premium Aluminum, custom formed tubes, forged dropouts w/ replaceable derailleur hanger
* Specifications are subject to change without notice

Geometry

Geometry Chart

Crossroads - Geometry

XS S M L
  XS S M L
Stem Length 75mm 75mm 95mm 95mm
Crank Length 170mm 170mm 170mm 170mm
Seatpost Length 300mm 300mm 350mm 350mm
Handlebar Width 645mm 645mm 685mm 685mm
Reach 364mm 375mm 375mm 385mm
Stack 567mm 578mm 611mm 625mm
Chainstay Length 465mm 465mm 465mm 465mm
Bottom Bracket Drop 65mm 65mm 65mm 65mm
Front Center 615mm 625mm 626mm 641mm
Seat Tube Angle 71° 71° 71° 71°
Head Tube Angle 69° 69.5° 70.5° 70.5°
Head Tube Length 155mm 165mm 195mm 210mm
Top Tube Length (Actual) 591mm 600mm 617mm 627mm
Top Tube Length (Horizontal) 559mm 574mm 585mm 600mm
Seat Tube Length, Center to Top 370mm 385mm 430mm 480mm
Standover Height 572mm 581mm 581mm 600mm
Wheel Base 1072mm 1082mm 1083mm 1098mm
Bottom Bracket Height 291mm 291mm 291mm 291mm
