Crossroads Elite Low-Entry
Overview
Technical Specifications
Geometry
Reviews

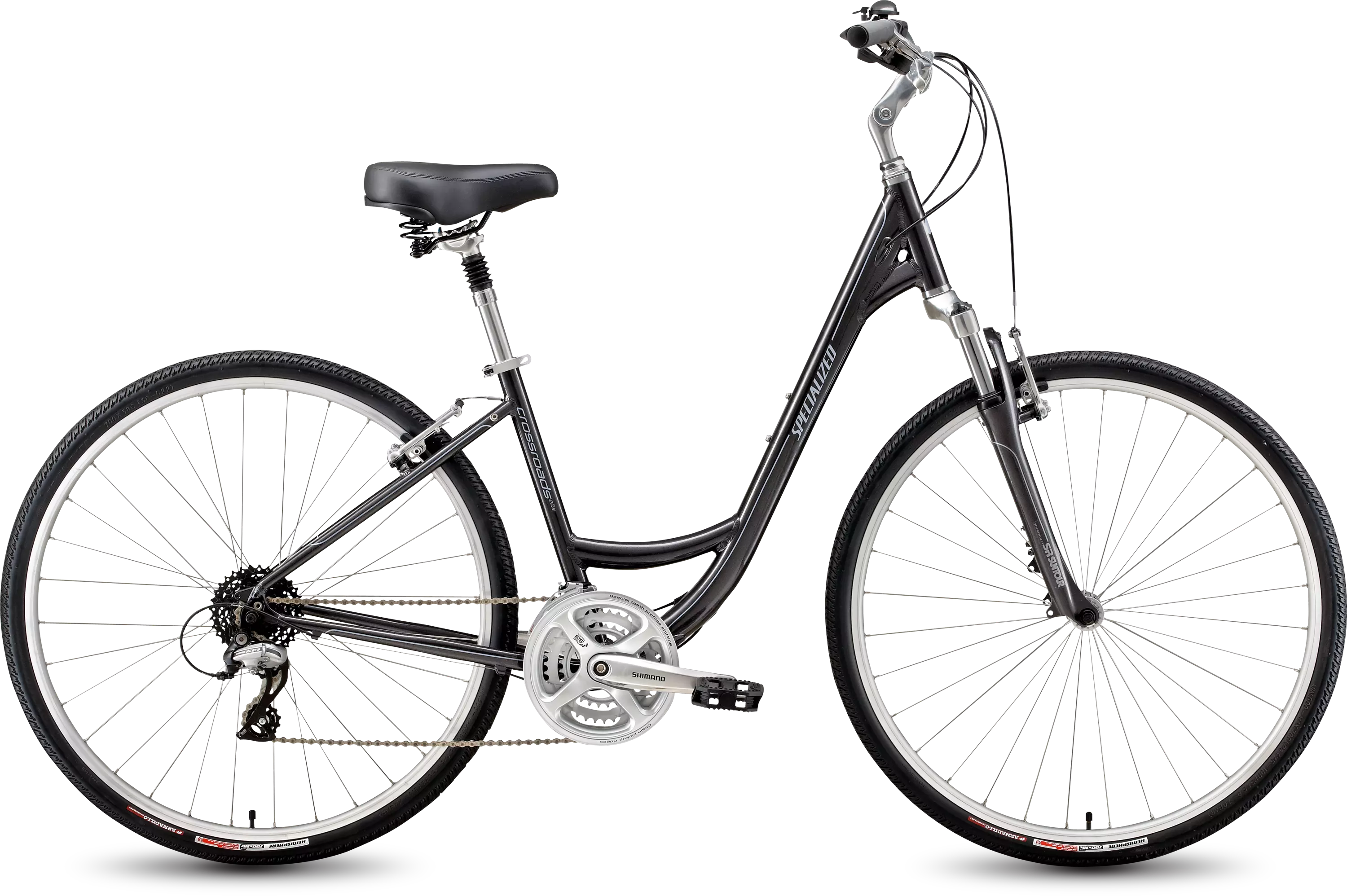

Fun and fast, plush and stable, the Crossroads Elite, with 24-speeds and Armadillo flat-protection tires, is a great way to navigate the neighborhood and blaze the bike path. Low-entry frame frame improves convenience and confidence.
  • A1 Premium Aluminum 700c frame with hybrid geometry for an upright, stable riding position and super-low standover for bike path bliss, includes integrated kickstand mount
  • 63mm-travel suspension fork with preload adjustment creates a smoother, more comfortable ride
  • Double-walled, alloy, eyeleted 700c rims are durable and low maintenance, with machined sidewalls for consistent braking
  • Smooth-rolling Hemisphere 700x38c tires use Armadillo protection to eliminate flats and a semi-connected tread pattern for traction and control on pavement or gravel
  • Shimano triple crankset with chainguard gives you precise, hassle-free shifting and efficient gearing for varied terrain
  • Die cast alloy, adjustable quill-stem for lightweight strength and comfortable positioning
  • Aluminum riser bar creates a stable and comfortable position
  • Women's BG Comfort grips alleviate hand pain and tingling fingers, with an integrated bell for added safety
  • Comfort Plus saddle uses springs, dual-density foam, and a wide platform for over-the-top comfort, while a suspension seatpost takes the edge off bumpy roads or paths

Technical Specifications

FRAMESET
SEAT BINDER Forged alloy w/ QR
HEADSET 1-1/8"" threaded, sealed loose ball bearings
FORK SR Suntour NEX-4110V2, alloy lower, Hi-Ten stanchions and steerer, coil/Mcu spring, preload adjust, 63mm travel
FRAME Specialized A1 Premium Aluminum, 700c Hybrid geometry, formed tubes, integrated kickstand mount, replaceable hanger
WHEELS
FRONT HUB Double sealed, ground race, dual lock nuts w/ 17mm contact side, 5mm QR
REAR WHEEL ---
REAR HUB Double sealed, ground race, dual lock nuts w/ 19mm contact side, 5mm QR
INNER TUBES Schrader valve
SPOKES 2mm (14g) stainless
RIMS Alloy double-wall, machined, pinned w/ eyelets, 32h
FRONT TIRE Specialized Hemisphere Armadillo, 60 TPI, 700x38c
REAR TIRE Specialized Hemisphere Armadillo, 60 TPI, 700x38c
FRONT WHEEL ---
DRIVETRAIN
BOTTOM BRACKET Cartridge bearing, square spindle w/ crank stop right side, capless bolts
CHAIN KMC Z8 w/ reusable Missing Link
CRANKSET Shimano FC-M171, w/chainguard
CASSETTE SRAM, 8-speed, 11-32t
SHIFT LEVERS Shimano, SL-M360, Rapidfire, 8-speed
FRONT DERAILLEUR Shimano, top swing, dual pull
CHAINRINGS 48/38/28, w/ chainguard
REAR DERAILLEUR Shimano Acera, 8-speed
COCKPIT
SADDLE Comfort Plus, dual-density foam, springs
TAPE Body Geometry Comfort Women's w/ integrated bell, closed end, 132mm
SEATPOST A-1 Suspension Seatpost, alloy, 27.2mm w/ 3.8mm spring
HANDLEBARS Comfort riser bar, alloy, 60mm rise, 15-degree sweep, 25.4mm
STEM Ground Control adjustable rise, alloy head/quill, 2-bolt, 25.4mm clamp
BRAKES
BRAKE LEVERS Alloy 4-finger, Kraton lever for Rapidfire shifter
FRONT BRAKE Alloy linear pull, 1pc. pad
REAR BRAKE Alloy linear pull, 1pc. pad
ACCESSORIES
PEDALS Comfort Pedal, composite body w/rubber top, sealed loose ball
SUSPENSION
REAR SHOCK ---

Geometry

Geometry Chart

Crossroads - Geometry

SM MD LG
  SM MD LG
Wheelbase 1102mm 1118mm 1140mm
Seat-Tube Length, B-B Center to Top 370mm 425mm 480mm
Head-Tube Length 130mm 150mm 170mm
Top-Tube Length, Horizontal 590mm 605mm 620mm
Front-Center 641mm 657mm 679mm
Head-Tube Angle 69.5° 69.5° 69°
Fork Rake 40mm 40mm 40mm
Trail 89mm 89mm 93mm
Stand-Over Height 451mm 452mm 453mm
Chain-Stay Length 470mm 470mm 470mm
Seat-Tube Angle 72° 72° 72°
B-B Drop 70mm 70mm 70mm
Seat-Post Length 0mm 0mm 0mm
