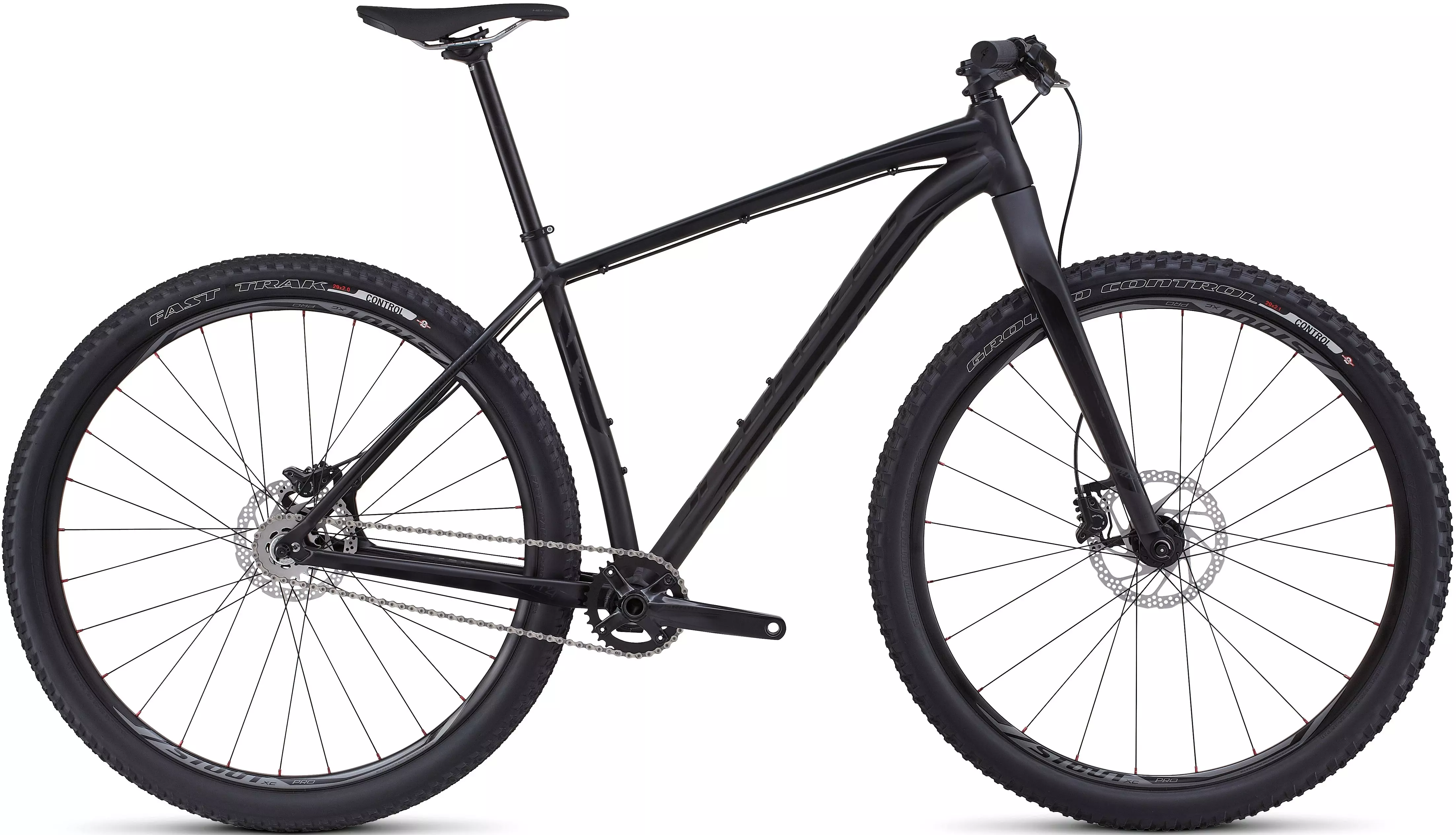

Crave SL 29
$1,350.00
Part No.

Crave SL 29

$1,350.00
Part No.  106470
load-spinner
Crave SL 29
Overview
Technical Specifications
Geometry
Reviews
From the ultra-minimalist to the beginning racer, the single speed, fully rigid Crave SL 29 will deliver all of the performance you need for either a ride with your buddies or a race on the weekend. It features a M4 aluminum construction that's light and stiff, plus a carbon fiber fork that maintains efficiency while soaking up minor bumps and vibrations. For the build, we took a minimal approach, spec'ing it with durable components that can take a beating and hand one right back out—perfect for the simplified rigors of single speed mountain biking.
  • Our Chisel carbon fork features a monocoque design to ensure a low overall weight and plenty of stiffness. This results in a fork that delivers plenty of speed and response, making it perfect for the minimalist racer.
  • Our Stout XC Pro 29" rims have been laced to hubs of the same name, and when combined, you get a light wheelset with plenty of stiffness and control for mixed terrain.
  • M4 Premium Aluminum proved to be the right material for the job, allowing a lightweight, durable frame with our XC 29 Geometry for an efficient power transfer and handling at speed.
  • Shimano Deore M506 brakes handle stopping duties, providing the perfect blend of reliability, strength, and power.
  • 29x2.1" Ground Control (front) and 29x2.0" Fast Trak (rear) tires provide plenty of traction over a multitude of terrain types, while still remaining one of the fastest tires for XC racing in our fleet.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.8mm
HEADSET 1-1/8"" upper, 1-1/2"" lower, threadless, Campy style, cartridge bearings
FRAME Specialized M4 Premium Aluminum, XC 29 Geometry, fully-butted w/ smooth welds, tapered head tube, tapered seat tube, forged post-mount 160mm disc dropouts, replaceable alloy derailleur hanger
WHEELS
FRONT HUB Specialized Stout XC Pro, Hi Lo disc, alloy, sealed cartridge bearings, QR, 24h
REAR HUB Specialized Stout XC Pro, Hi Lo disc, alloy, sealed cartridge bearings, QR, 28h
INNER TUBES Standard, Presta valve
SPOKES Stainless, butted, 2.0/1.8/2.0mm, black
FRONT TIRE Specialized Ground Control, 60TPI, 2Bliss Ready, folding bead, 29x2.1""
RIMS Specialized Stout XC Pro 29, disc, alloy, double-wall, sleeve joint, 26mm inner width, tubeless ready, 24/28h
REAR TIRE Specialized Fast Trak Control, 60TPI, 2Bliss Ready, folding bead, 29x2.0""
DRIVETRAIN
BOTTOM BRACKET SRAM GXP, 73mm
CHAIN KMC X8, 8-speed, w/ reusable MissingLink
CRANKSET Custom SRAM S-1255, singlespeed specific, GXP, 32T, 104mm BCD spider
CASSETTE Singlespeed conversion kit, 20t Cr-Mo 3/32"" cog, alloy spacers, lock ring
COCKPIT
SADDLE Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST Alloy, 2-bolt, 12.5mm offset, 30.9mm, anti-corrosion hardware
GRIPS Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
HANDLEBARS Specialized Stout XC, flat bar, double-butted 6061 alloy, 9-degree backsweep, 4-degree upsweep, 31.8mm
STEM Specialized Stout XC, 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware
BRAKES
BRAKE LEVERS Shimano BL-M506, hydraulic, reach adjust
FRONT BRAKE Shimano Deore, hydraulic disc, dual piston, resin pads
REAR BRAKE Shimano Deore, hydraulic disc, dual piston, resin pads
ACCESSORIES
PEDALS Alloy, 1 pc. body, 9/16"", w/ reflectors
SUSPENSION
FORK Specialized Chisel, carbon, monocoque, tapered carbon steerer, alloy dropouts, disc mount, OS28 hub compatible

Geometry

Geometry Chart

Crave - Geometry

S M L XL XXL
  S M L XL XXL
Stem Length 60mm 70mm 70mm 90mm 90mm
Crank Length 170mm 175mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm 400mm
Handlebar Width 720mm 740mm 740mm 740mm 740mm
Reach 400mm 412mm 430mm 450mm 464mm
Stack 617mm 626mm 641mm 655mm 674mm
Wheelbase 1071mm 1086mm 1109mm 1134mm 1154mm
Bike Stand-Over Height 758.3mm 790.5mm 818.9mm 853.2mm 887.8mm
Head-Tube Length 110mm 100mm 115mm 130mm 150mm
Front-Center 637mm 652mm 675mm 699mm 720mm
Fork Rake/Offset 46mm 46mm 46mm 46mm 46mm
Head-Tube Angle 71.5° 71.5° 71.5° 71.5° 71.5°
Trail 75mm 75mm 75mm 75mm 75mm
B-B Height 306.5mm 306.5mm 306.5mm 306.5mm 306.5mm
Chain-Stay Length 442mm 442mm 442mm 442mm 442mm
Fork Length (full) 485mm 505mm 505mm 505mm 505mm
Seat-Tube Angle 74° 73° 73° 73° 73°
B-B Drop 64mm 64mm 64mm 64mm 64mm
Seat-Tube Length 394mm 445mm 483mm 533mm 584mm
Top-Tube Length (horizontal) 577mm 604mm 626mm 650mm 670mm

Reviews
