Chisel

2021 Chisel

The all-new Chisel has been purpose-built to tackle modern cross country trails and race courses with the utmost speed. In fact, it shares many of the same modern features as its Epic Hardtail sibling, but in a more budget-friendly package—making it the most efficient and capable alloy hardtail out there.

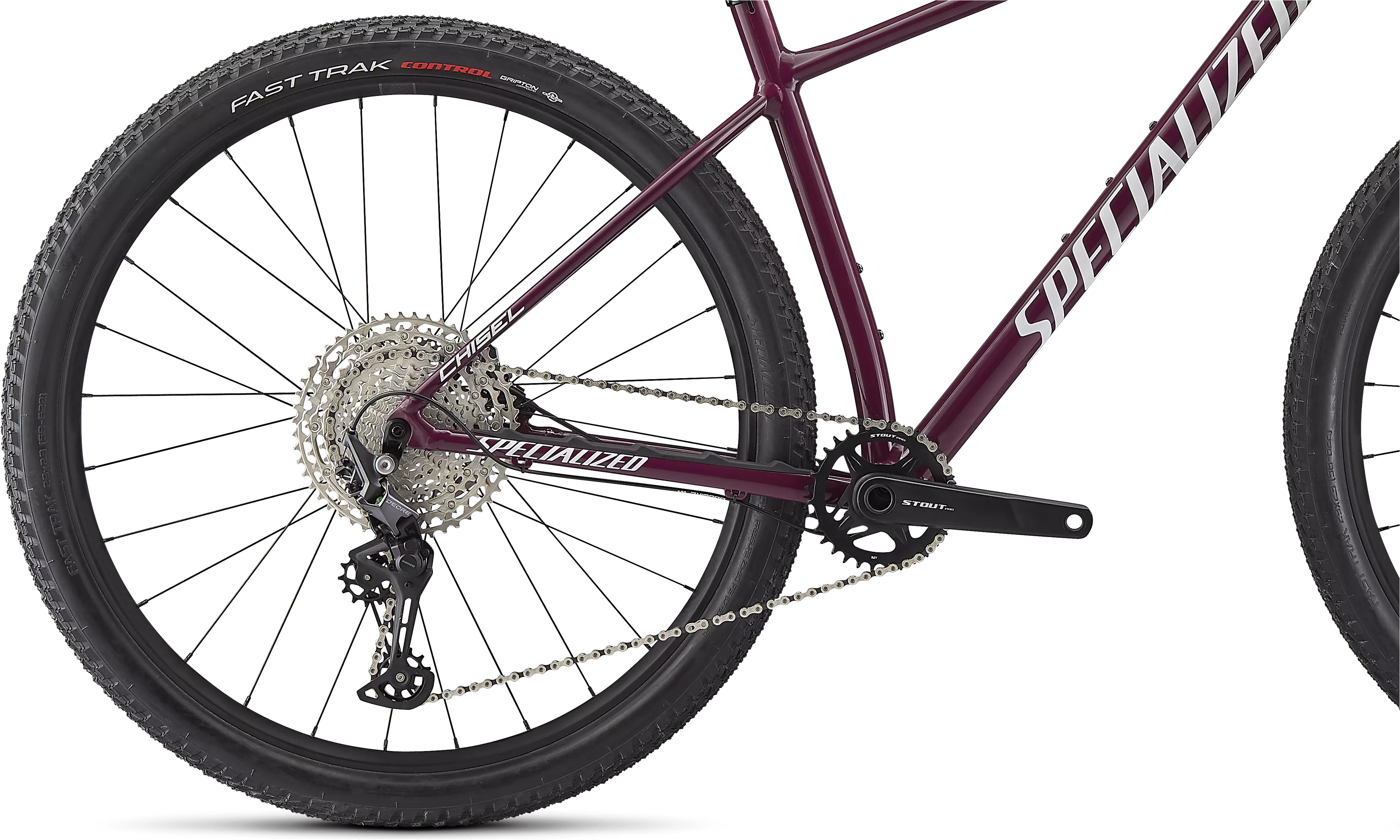

This Chisel comes spec'd with Shimano's tried and true Deore 1x12 speed drivetrain and MT400 hydraulic disc brakes, a RockShox Judy Silver fork, and 25mm internal width alloy wheels wrapped in 2.3 Fast Track Control casing tires.

Technical Specifications

COCKPIT

Handlebars

Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm

SeatPost

Alloy, 2-bolt clamp, 30.9mm

Tape

Specialized Trail Grips

Stem

Specialized, 3D-forged alloy, 4-bolt, 7-degree rise

Saddle

Body Geometry Power Sport, steel rails

DRIVETRAIN

Chain

KMC X12, 12-speed w/ Missing Link™

Bottom Bracket

BSA for 24mm spindle

Cassette

Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t

Rear Derailleur

Shimano Deore, M6100, 12pd, Shadow Plus

Crankset

Stout Pro, 2-Piece Forged Alloy, Direct Mount chainring

Shift Levers

Shimano Deore, M6100, I-Spec EV, 12 speed

WHEELS

Inner Tubes

Presta, 60mm valve

Rear Hub

Shimano MT410-B, Centerlock 28h, 12x148 Boost, Microspline

Rear Tire

Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"

Front Tire

Fast Trak, Control casing, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"

Rims

Specialized Alloy, hookless, Tubeless ready, 25mm inner width

Front Hub

Shimano MT410-B, Centerlock 28h, 15x110 Boost

FRAMESET

Frame

Specialized D'Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible

Seat Binder

Specialized Alloy 34.9

ACCESSORIES

Pedals

WHEELS & TIRES

Spokes

Stainless, 14g

BRAKES

Rear Brake

Shimano M4100, 2-piston, 180/160mm

Front Brake

Shimano M4100, 2-piston caliper, hydraulic disc

Suspension

Fork

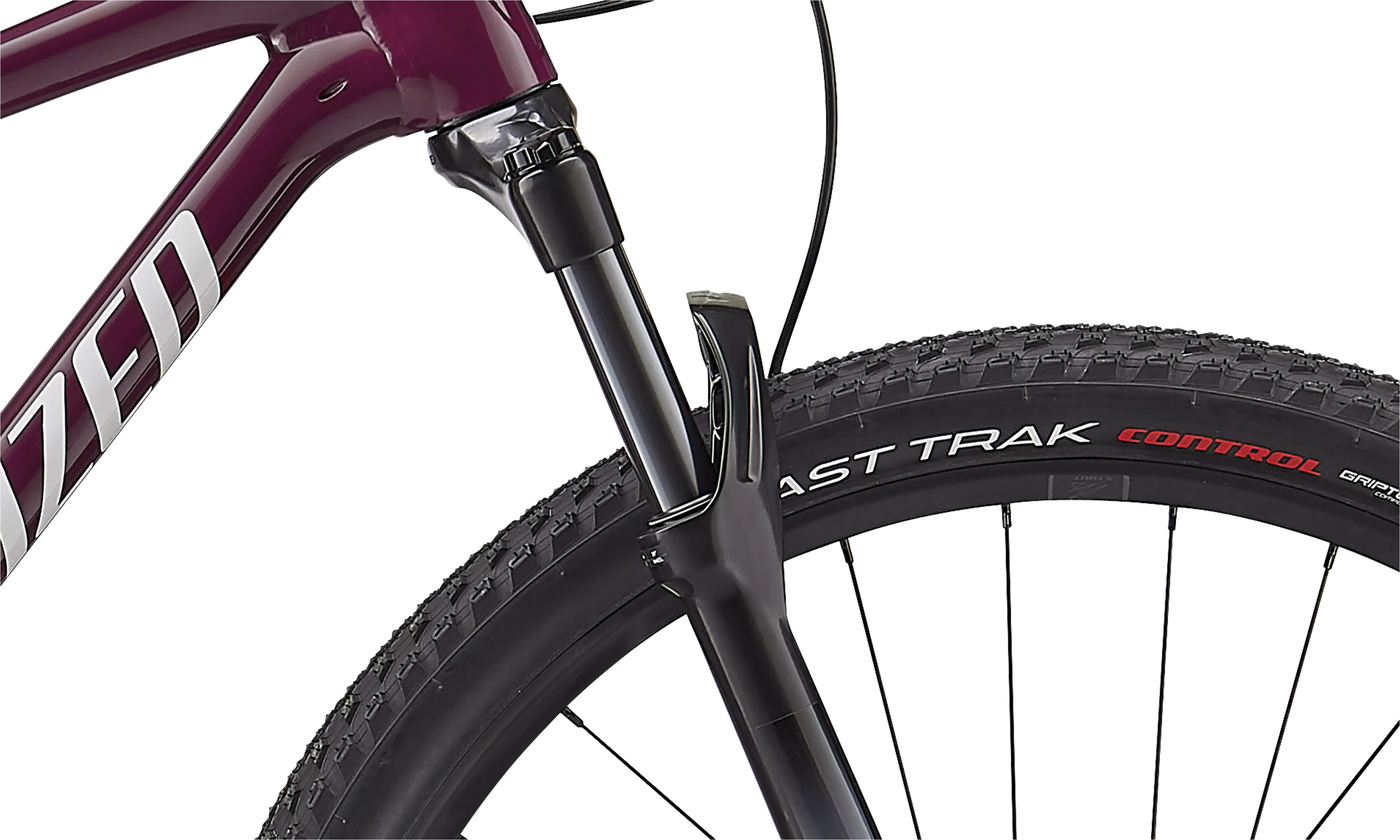

RockShox Judy Silver, TurnKey damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS - 80mm travel)

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

XSSMLXL
Crank Length165mm170mm175mm175mm175mm
Handlebar Width750mm750mm750mm750mm750mm
Stem Length60mm60mm70mm70mm70mm
Saddle Width155mm155mm143mm143mm143mm
Seatpost Length350mm350mm400mm400mm400mm
Stack591mm605mm605mm619mm633mm
Reach385mm405mm430mm455mm480mm
Head Tube Length95mm95mm95mm110mm125mm
Head Tube Angle68°68°68°68°68°
BB Height304mm309mm309mm309mm309mm
BB Drop68mm63mm63mm63mm63mm
Trail103mm103mm103mm103mm103mm
Fork Length, Full486mm506mm506mm506mm506mm
Fork Rake/Offset44mm44mm44mm44mm44mm
Front Center647mm674mm699mm730mm760mm
Chainstay Length432mm432mm432mm432mm432mm
Wheelbase1070mm1099mm1124mm1154mm1185mm
Top Tube Length, Horizontal555mm578mm603mm632mm661mm
Bike Standover Height732mm762mm792mm816mm847mm
Seat Tube Length367mm400mm430mm470mm520mm
Seat Tube Angle74°74°74°74°74°
Geometry
