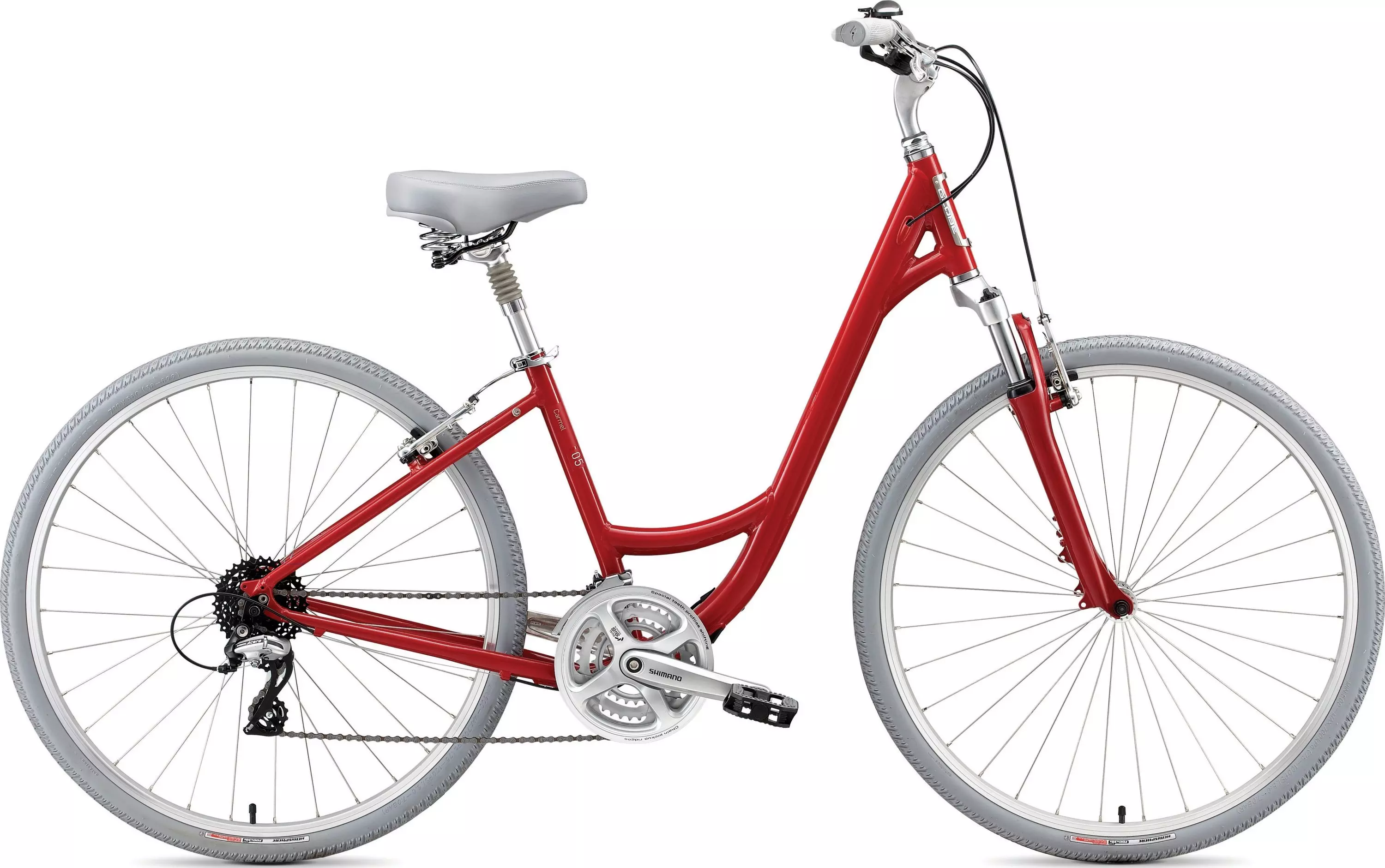

Carmel 700 5 Low Entry
$550.00
Part No.

Carmel 700 5 Low Entry

$550.00
Part No.  22776
load-spinner
Carmel 700 5 Low Entry
Overview
Technical Specifications
Geometry
Reviews
  • Suspension seatpost takes the edge off bumpy roads
  • Roll with confidence on sturdy, double-walled Globe 26-inch alloy rims
  • Shimano Acera 8-speed rear derailleur provides sure-fire shifts every time
  • Women's Body Geometry Comfort grips alleviate hand pain and tingling fingers
  • Globe A1 Premium Aluminum frame with Ground Control geometry for an upright, stable seating position
  • Globe Comfort Plus saddle uses springs and dual-density foam with a wide platform for amazing comfort
  • 63mm-travel suspension fork uses coil/MCU springs for a smooth ride and external preload adjustment for easy dial-in
  • Smooth-rolling Specialized Hemishphere 700c tires use tried and true Armadillo casing to all but eliminate punctures

Technical Specifications

FRAMESET
SEAT BINDER Globe Chevron forged alloy, chrome plated w/ QR
HEADSET 1-1/8"" threaded, sealed loose ball bearings
FORK SR Suntour NEX-4110V2, 63mm travel, 1pc. alloy lower, Hi-Ten stanchions and steerer, coil/mcu w/ preload adjust, spring assisted seals
FRAME Globe A1 Premium Aluminum, ground control geometry, 700c low entry comfort frame, formed tubes w/ integrated kickstand mount, forged dropouts w/ replaceable hanger
WHEELS
FRONT HUB Forged alloy, double sealed, ground race, QR
REAR HUB Forged alloy, double sealed, ground race, cassette, QR, 32h
INNER TUBES Schraeder valve
SPOKES 1.8mm (15g) stainless
RIMS Globe 700c, double wall, 32h w/CNC side wall
FRONT TIRE Specialized Hemisphere Armadillo, 700x38c, 60TPI, wire bead
REAR TIRE Specialized Hemisphere Armadillo, 700x38c, 60TPI, wire bead
DRIVETRAIN
BOTTOM BRACKET Cartridge bearing, square spindle with crank stop right side and capless bolts
CHAIN KMC Z8, w/ reusable Missing Link
CRANKSET Shimano FC-M191, w/ chainguard
CASSETTE SRAM PG-820, 8-speed, 11-32t
SHIFT LEVERS Shimano SL-MC40, 8-speed, Rapid Fire
FRONT DERAILLEUR Shimano FD-C102, 31.8mm clamp, top swing, dual pull
CHAINRINGS 48 x 38 x 28t w/ chainguard
REAR DERAILLEUR Shimano Acera, 8-speed
COCKPIT
SADDLE Comfort Plus with dual density foam and springs for extra comfort
TAPE Women's Body Geometry Comfort w/ integrated bell, closed end, 132mm
SEATPOST Alloy suspension, 2-bolt head, 27.2mm w/ 3.8mm spring
HANDLEBARS Aluminum Comfort riser bar, 25.4mm, 60mm rise, 620mm wide, 15 degree back sweep, 5 degree up
STEM Ground control, 4-bolt, alloy head/Cr-Mo quill, 25.4mm clamp
BRAKES
BRAKE LEVERS Alloy 4-finger, kraton lever pad, for Rapid Fire shifter
FRONT BRAKE Alloy linear pull, 1pc. pad
REAR BRAKE Alloy linear pull, 1pc. pad
ACCESSORIES
PEDALS Comfort pedal, composite body w/rubber top, sealed loose ball bearings

Geometry

Geometry Chart

Carmel - Geometry

SM MD
  SM MD
Wheelbase 1132mm 1134mm
Seat-Tube Length, B-B Center to Top 370mm 425mm
Head-Tube Length 140mm 160mm
Top-Tube Length, Horizontal 600mm 615mm
Front-Center 641mm 644mm
Head-Tube Angle 69.5° 69.5°
Fork Rake 40mm 40mm
Trail 89mm 89mm
Stand-Over Height 457mm 455mm
Chain-Stay Length 500mm 500mm
Seat-Tube Angle 70° 69°
B-B Drop 73mm 73mm
Seat-Post Length 0mm 0mm
