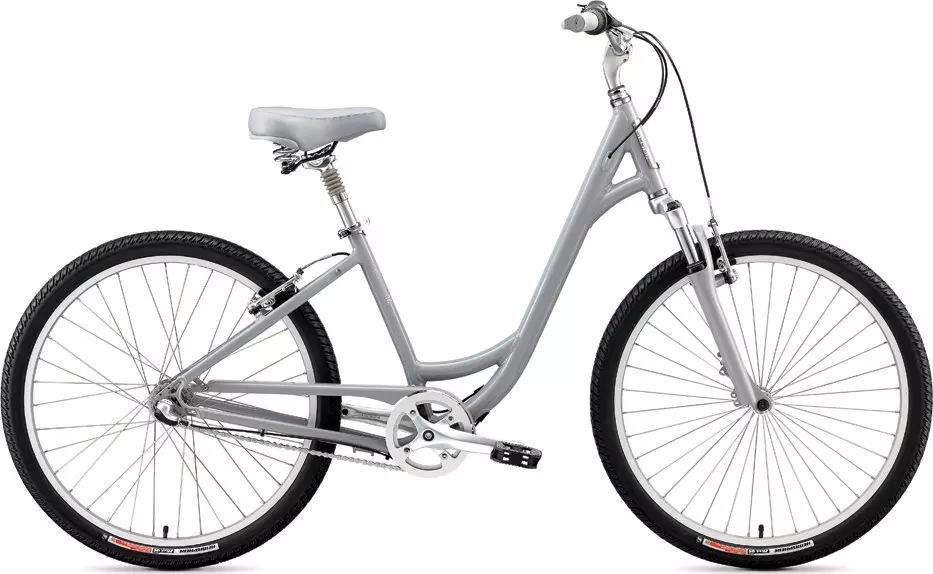

Riders looking for nothing more than carefree, open-air goodness will find the plush, cruiser-style CARMEL is the perfect partner for beaches, bike paths, dirt and gravel trails.
  • Suspension seatpost takes the edge off bumpy roads
  • (Chaincase) Aluminium Chain Guard for Internal gearing
  • Durable and low maintenance internally geared Shimano 3-speed rear hub
  • Globe Comfort Plus saddle uses springs and a wide platform for over-the-top comfort
  • Women's Body Geometry Comfort grips (with integrated bell) alleviate hand pain and tingling fingers
  • High-volume Specialized Hemisphere 26-inch tires use Flak Jacket technology to virtually eliminate flats
  • Globe A1 Premium Aluminum 700c frame with Ground Control geometry for an upright, stable seating position
  • 63mm-travel suspension fork uses coil/MCU springs for a smooth ride and external preload adjustment for easy dial-in

Technical Specifications

Technical Specifications

DRIVETRAIN
CHAIN KMC, Internal 8-speed, 1/2x1/8""
BOTTOM BRACKET Cartridge bearing, square spindle with crank stop right side and capless bolts
CRANKSET Sugino EX-1 aluminum, w/ alloy chainguard
SHIFT LEVERS Shimano Nexus, 3-speed
CASSETTE Shimano Sprocket 3-speed, 18t
CHAINRINGS 38T w/ chainguard
WHEELS
FRONT HUB Forged alloy, double sealed, ground race, QR
REAR HUB Shimano Internal 3-Speed
INNER TUBES Schraeder valve
SPOKES 2mm (14g) stainless
FRONT TIRE Specialized Hemisphere, 26x1.95"", 60TPI, wire bead w/ Flak Jacket protection
RIMS Alex Z-1000, 26"", single wall, 36h
REAR TIRE Specialized Hemisphere, 26x1.95"", 60TPI, wire bead w/ Flak Jacket protection
COCKPIT
SADDLE Comfort Plus with dual density foam and springs for extra comfort
TAPE Women's Body Geometry Comfort, closed end, 92/132mm including bell
SEATPOST Alloy suspension, 2-bolt head, 27.2mm w/ 3.8mm spring
STEM Ground control, 4-bolt, alloy head/Cr-Mo quill, 25.4mm clamp
HANDLEBARS Hi-Ten Comfort riser bar, 25.4mm, 60mm rise, 620mm wide, 15 degree back sweep, 5 degree up
BRAKES
FRONT BRAKE Alloy linear pull, 1pc. pad
BRAKE LEVERS Alloy 4-finger, kraton lever pad, for twist shifter
REAR BRAKE Alloy linear pull, 1pc. pad
ACCESSORIES
PEDALS Comfort pedal, composite body w/rubber top, sealed loose ball bearings
FRAMESET
HEADSET 1-1/8"" threaded, sealed loose ball bearings
SEAT BINDER Globe Forged alloy w/ QR
FORK SR Suntour NEX-4110-26, 63mm travel, 1pc. alloy lower, Hi-Ten stanchions and steerer, coil/mcu w/ preload adjust, spring assisted seals
FRAME Globe A1 Premium Aluminum, ground control geometry, 26"" low entry comfort frame, formed tubes w/ integrated kickstand mount, forged dropouts w/ replaceable hanger
* Specifications are subject to change without notice

Geometry

Geometry Chart

Carmel - Geometry

SM MD
  SM MD
Wheelbase 1123mm 1144mm
Seat-Tube Length, B-B Center to Top 370mm 425mm
Head-Tube Length 160mm 180mm
Top-Tube Length, Horizontal 610mm 625mm
Front-Center 630mm 650mm
Head-Tube Angle 68.5° 68.5°
Fork Rake 40mm 40mm
Trail 89mm 89mm
Stand-Over Height 438mm 439mm
Chain-Stay Length 500mm 500mm
Seat-Tube Angle 67° 67.5°
B-B Drop 59mm 59mm
Seat-Post Length 0mm 0mm
