Camber Expert Carbon EVO 29
Overview
Technical Specifications
Geometry
Reviews

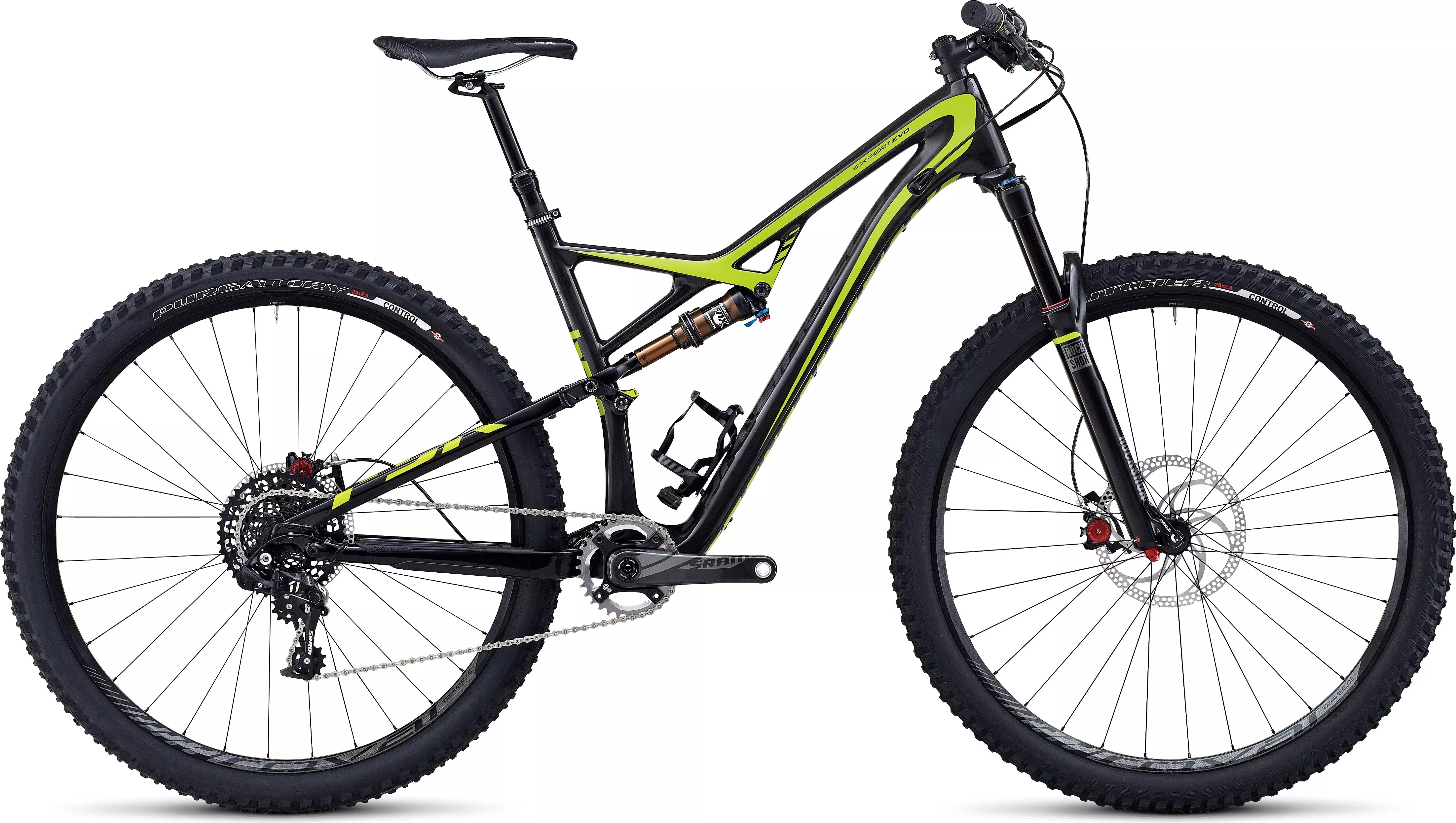

Built with a competition-specific component spec, the 120mm-travel Camber FSR Expert Carbon EVO features a RockShox Pike RC fork with a tapered steerer, a custom-tuned Fox Float CTD Performance shock, and custom SRAM carbon S-2200, 11-speed XC Trail double crankset with PF30 spindle.
  • New FACT 9m FSR frame with 29er-specific, slacker EVO geometry has 120mm of travel, 142+ dropouts, and an all-new concentric sealed-cartridge bearing shock link, features internal cable routing for the Command Post IR to create a lightweight and responsive trail weapon
  • Custom-tuned FOX Float CTD Performance shock with Specialized proprietary AUTOSAG, Boost Valve, and Kashima coating features three compression settings: Climb, Trail and Descend
  • All-new RockShox Pike RC features 120mm of travel for chewing up high-speed trail chatter. With the 15mm Maxle thru-axle and Solo Air spring, the robust Pike provides precise steering for spot-on handling at speed
  • Roval Traverse 29 All-Mountain wheelset, with DT Swiss internals and spokes, 15mm thru-axle, and a 142+ rear hub spacing for durable, lightweight, and tubeless-ready performance
  • Custom Formula T1 S brakes provide great braking power and modulation, while Specialized Butcher/Purgatory tires maintain traction and roll fast
  • SRAM X01 11-speed drivetrain featuring S-2200 carbon crankset with PF30 spindle and single chainring setup, works with SRAM X0 10-42 cassette for premium shifting and a huge gear range
  • All-new, Specialized Command Post IR uses a remote lever to adjust the saddle height on-the-fly to maximize climbing and descending performance

Technical Specifications

FRAMESET
SWAT Bottle cage, EMT Tool, and Top Cap Chain Tool w/ SWAT Technology
SEAT BINDER 7050 hard anodized alloy collar, single bolt, 34.9mm
HEADSET 1-1/8 and 1-1/2"" threadless, Hella Flush style upper with 1-1/2"" lower, cartridge bearings
FRAME FACT 9m carbon front triangle, EVO geometry, FACT TM construction, M5 rear triangle, tapered headtube, carbon PF30 BB, full internal shift/brake/post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 120mm travel
WHEELS
FRONT HUB Roval Traverse 29, 15mm thru-axle end caps, 32h
REAR HUB Roval Traverse 142+, XX1 driver body, 12mm thru-axle, 32h
SPOKES DT Swiss Super Comp, 2.0/1.65/1.8 stainless
RIMS Roval Traverse 29, alloy disc, 28mm wide, 32h
FRONT TIRE Specialized Butcher Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, dual-compound, 60TPI
REAR TIRE Specialized Purgatory Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, dual-compound, 60 TPI
DRIVETRAIN
BOTTOM BRACKET SRAM PF30, OS press-in bearings, sealed cartridge
CHAIN SRAM XG 1195, 11-speed, hollow plates/pins, PowerLink
CRANKSET Custom SRAM carbon S-2200, 32T XX1 style single ring, PF30 spindle, removable spider, S: 170mm, Others: 175mm
CASSETTE SRAM X01, 11-speed, 10-42
SHIFT LEVERS SRAM X01, 11-speed, trigger
CHAINRINGS 32T
REAR DERAILLEUR SRAM X01, 11-speed
COCKPIT
SADDLE Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel
GRIPS Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
HANDLEBARS Specialized XC Mini Riser, 7050 butted alloy, 750mm wide, 10mm rise, 8-degree backsweep, 6-degree upsweep, 31.8mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp
BRAKES
BRAKE LEVERS Custom Formula T1 S, hydraulic disc, tool-less pad contact (FCS) and reach adj., SRAM compatible MiXmaster shifter mounts
FRONT BRAKE Custom Formula T1 S, metallic pad, S/M: 180mm, Others: 200mm rotor
REAR BRAKE Custom Formula T1 S, metallic pad, S/M: 160mm, Others: 180mm rotor
SUSPENSION
FORK RockShox Pike 29, Solo Air spring, tapered alloy steerer, comp, lockout, and reb adj., 15mm thru-axle, 120mm travel
REAR SHOCK Custom FOX Float CTD Factory, w/ AUTOSAG, Climb, Trail, Descend settings w/ Trail and reb adj., 197x51mm

Geometry

Geometry Chart

Camber - Geometry

S M L XL
  S M L XL
Stem Length 60mm 75mm 90mm 100mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm
Handlebar Width 720mm 720mm 720mm 720mm
Reach 387mm 416mm 432mm 454mm
Stack 599mm 609mm 633mm 657mm
Chainstay Length 451mm 451mm 451mm 451mm
Top Tube Length (Actual) 564mm 595mm 618mm 646mm
Top Tube Length (Horizontal) 560mm 592mm 617mm 645mm
Head Tube Angle - Low Setting 68.8° 68.8° 68.8° 68.8°
Standover Height 736mm 741mm 745mm 756mm
Wheel Base 1104mm 1135mm 1161mm 1190mm
Head Tube Height 90mm 100mm 125mm 150mm
Seat Tube Angle (Actual) - Low Setting 68.8° 68.8° 68.8° 68.8°
Seat Tube Length - Center to Top 394mm 430mm 468mm 523mm
Seat Tube Angle (Effective) - Low Setting 73.8° 73.6° 73.3° 73°
Bottom Bracket Height - Low Setting 330mm 330mm 330mm 330mm
