Camber Elite
Overview
Technical Specifications
Reviews

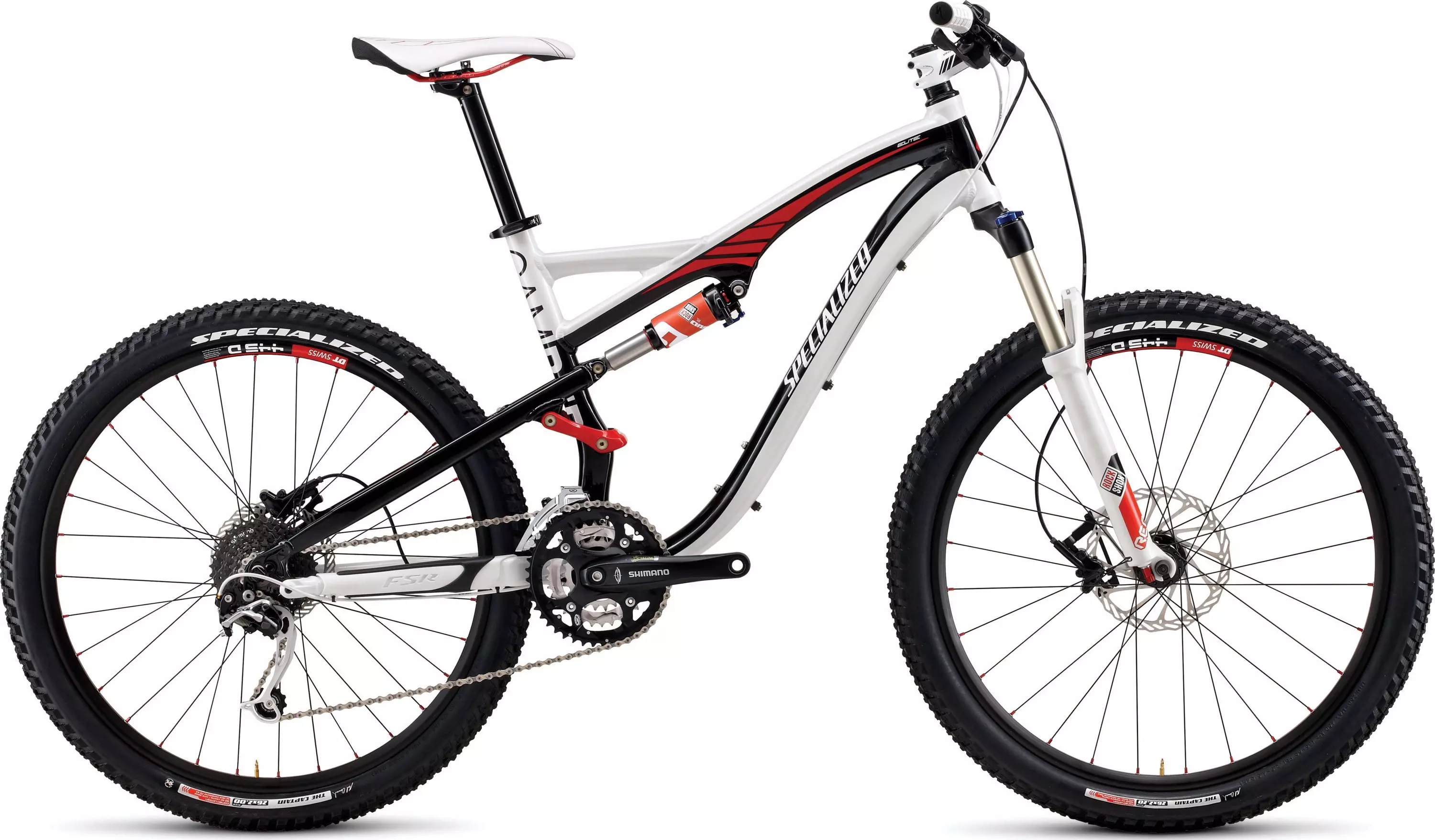

Improved front suspension, better brakes, and upgraded drivetrain make the Camber Elite a little more plush and crisp.
  • Oversized, 3D-forged, adjustable-rise alloy stem with 4-bolt clamp for extra strength and versatility
  • RockShox Ario RL rear shock with adjustable rebound and lockout for steady climbs and plush, controlled descents
  • Shimano Deore XT Shadow rear derailleur delivers top-of-the-line shifting performance and a low-profile design for maximum clearance
  • 120mm-travel M4 alloy FSR frame with new suspension design and sealed cartridge bearing pivots for confident handling and smooth trail performance
  • Custom Avid Elixir 3 R SL hydraulic disc brakes and Juicy 3 levers with G3 Clean Sweep rotors and alloy-backed organic pads for maximum stopping power
  • Responsive, yet stable RockShox Recon Gold TK air-sprung fork with 120mm of travel uses external adjustable rebound, Turn Key damping, and lockout for fine-tuned bump performance

Technical Specifications

DRIVETRAIN
CHAIN KMC X9, 9-speed, w/ reuseable Missing Link
BOTTOM BRACKET Shimano BB-ES25, Octalink spline, cartridge bearing
CRANKSET Shimano FC-M521, Hollowtech, Octalink spline, replacable rings, S: 170mm, others: 175mm
FRONT DERAILLEUR Shimano FD-M660 SLX, E-type for DMD, top swing, bottom pull
SHIFT LEVERS Shimano SL-M430 Alivio, 9-speed, trigger
CASSETTE Shimano HG30, 9-speed, 11-34t
CHAINRINGS 44A x 32S x 22S
REAR DERAILLEUR Shimano RD-M772 Deore XT Shadow, long cage
SUSPENSION
FORK RockShox Recon Gold TK, Turn Key damper, Solo Air, alloy steerer, rebound adj. w/ LO, disc only, 120mm travel
REAR SHOCK RockShox Ario RL, air spring, rebound adj. and LO, 7.875x2.0""
COCKPIT
SADDLE Specialized BG Rival, 143mm width
SEATPOST 6061 alloy, 2-bolt micro adjust, setback head, 30.9mm, S/M:350mm, others:400mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
HANDLEBARS Specialized XC low-rise, 6061 butted alloy, 680mm wide, 8 degree back sweep, 6 degree up, 31.8mm
GRIPS Specialized lock-on, S/M: Grappler, Other: Rocca
WHEELS
FRONT HUB Specialized Hi Lo disc, 32h, QR
REAR HUB Specialized Hi Lo disc, double sealed cartridge bearing, QR, 32h
INNER TUBES Ultralight presta valve
SPOKES 1.8mm (15g) stainless
RIMS Custom DT Swiss 445D, alloy disc, double wall, pin joint, eyelets, 24mm, 28/32h
FRONT TIRE Specialized ""The Captain"" Sport, 60 TPI, wire bead, 26x2.0""
REAR TIRE Specialized ""The Captain"" Sport, 60 TPI, wire bead, 26x2.0""
BRAKES
FRONT BRAKE Custom Avid Elixir 3 R SL, hydraulic disc, tool-less reach adjust, alloy backed semi-metalic pads, G3 Clean Sweep rotor, S/M: 185mm, L/XL: 203mm
BRAKE LEVERS Custom Avid Elixir 3 SL hydraulic, tool-less reach adj.
REAR BRAKE Custom Avid Elixir 3 R SL, hydraulic disc, tool-less reach adjust, alloy backed semi-metalic pads, G3 Clean Sweep rotor, S/M: 160mm, L/XL: 185mm
ACCESSORIES
PEDALS Resin Test Ride Pedals with toe clips, CEN std.
FRAMESET
HEADSET 1 1/8"" upper and lower campy style cartridge bearings for integrated alloy HT
SEAT BINDER 34.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, black
FRAME M4 hydroformed tubing, sealed cartridge bearing pivots, disc only, Command Post routing, replaceable deraileur hanger, bolt on cable guides, 120mm travel
