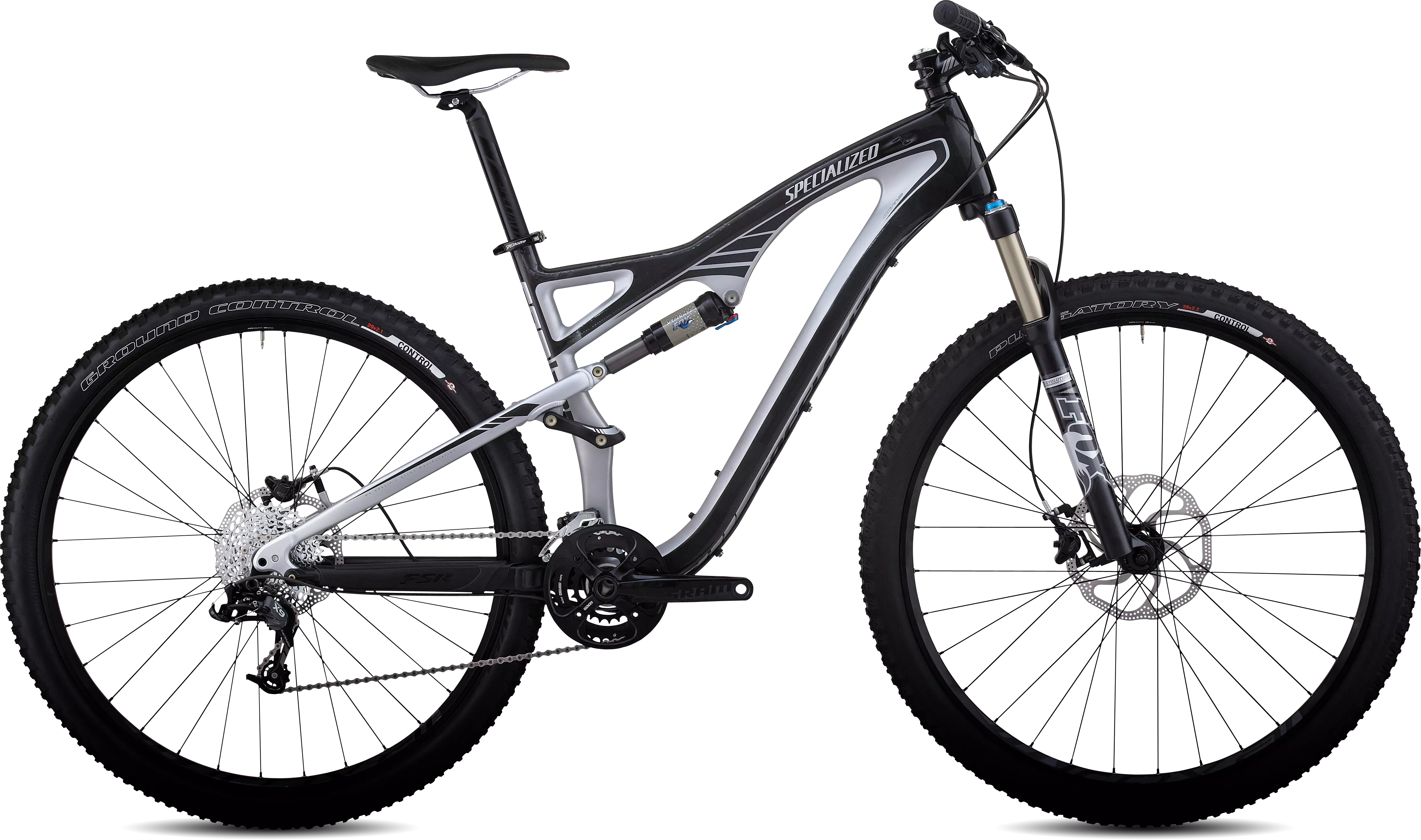

Camber Comp Carbon 29
$3,800.00
Part No.

Camber Comp Carbon 29

$3,800.00
Part No.  36176
load-spinner
Camber Comp Carbon 29
Overview
Technical Specifications
Geometry
Reviews
The carbon fiber Camber Comp Carbon 29 has 110mm of front-and-rear travel, features a Fox Float Evolution RL 29, open-bath damper, tapered steerer fork, and custom Avid Elixir 7 SL, hydraulic disc brakes for tackling any trail.
  • FACT 9m carbon FSR frame and M5 alloy rear triangle with 29er specific geometry and 142mm dropouts create a lightweight and responsive trail weapon with 110mm of travel and Command Post cable routing
  • Custom Fox Triad II with on-the-fly, 3-position damping adjustment between a plush fully open, a more firm ProPedal and a lockout, for ideal performance over varying terrain
  • Fox Evolution series Float RL 29 fork has 110mm of travel, open bath damping, and a tapered steerer tube for precise and reliable handling
  • Avid Elixir 7 SL hydraulic disc brakes with alloy backed semi-metallic pads and tool-less reach adjust for superb control and modulation
  • Custom SRAM 10-speed XC Trail double-ring shifts fast while the PF30 spindle makes for an efficient and stiff crankset
  • Roval 29 rims mated to Specialized Hi Lo hubs, oversized endcaps, a 142+ rear hub spacing, and 12mm thru-axle increase wheel stiffness for more confident riding

Technical Specifications

FRAMESET
SEAT BINDER 34.9mm clamp ID, alloy collar w/ QR, black
HEADSET 1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
FRAME FACT 9m front triangle, M5 rear triangle, 29"" geometry, tapered HT, internal Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, disc only, replaceable derailleur hanger, bolt-on cable guides, 110mm travel
WHEELS
FRONT HUB Specialized Hi Lo disc, laser-etched logo, OS 24 end caps, sealed cartridge bearing, RWS, 32h
REAR HUB Specialized Hi Lo 142+ disc, laser-etched logo, double-sealed cartridge bearing, 12mm thru-axle, 32h
RIMS Roval 29, alloy disc, 26mm wide, 32h
FRONT TIRE Specialized Purgatory Control, 60 TPI, 2Bliss ready aramid bead, dual-compound, 29x2.2""
REAR TIRE Specialized Ground Control, 60 TPI, 2Bliss ready aramid bead, 29x2.1""
DRIVETRAIN
BOTTOM BRACKET SRAM PF30, OS press-in bearing, sealed cartridge
CHAIN KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates
CRANKSET Custom SRAM S-1250, 10-speed XC Trail double, PF30 spindle, S: 170mm, Others: 175mm
CASSETTE SRAM PG-1030, 10-speed, 11-36t
SHIFT LEVERS SRAM X7, 10-speed, aluminum trigger
FRONT DERAILLEUR SRAM X7, 10-speed, S3 direct mount for DMD, top-pull
CHAINRINGS 36/22, w/ alloy guard
REAR DERAILLEUR SRAM X9, 10-speed, mid cage
COCKPIT
SADDLE Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm width
SEATPOST 2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, Others: 400mm
GRIPS Specialized lock-on, S/M: Grappler, Others: Grappler XL
HANDLEBARS Specialized XC Mini-Riser, 7050 butted alloy, 720mm wide, 10mm rise, 10º backsweep, 6º upsweep, 31.8mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise, S: 60mm, M: 75, L:90, XL/XXL:105mm
BRAKES
BRAKE LEVERS Custom Avid Elixir 7 SL hydraulic, tool-less reach adj.
FRONT BRAKE Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, HS-1 rotor S/M:180mm, Others: 200mm
REAR BRAKE Custom Avid Elixir 7 SL, hydraulic disc, alloy backed organic pad, HS-1 rotor S/M:160mm, Others: 180mm
ACCESSORIES
PEDALS Resin Test Ride Pedals with toe clips, CEN std.
SUSPENSION
FORK Fox Float Evolution RL 29, open bath damper, tapered steerer, LO and reb adj., standard drop-outs, 110mm travel
REAR SHOCK Custom Fox Triad II, custom for 29er on-the-fly 3-position compression switch 1) Lock out 2) Open 3) ProPedal, rebound adj., 200x49mm

Geometry

Geometry Chart

Camber - Geometry

S M L XL XXL
  S M L XL XXL
Stem Length 90mm 90mm 105mm 105mm 105mm
Crank Length 170mm 175mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm 400mm
Handlebar Width 680mm 680mm 680mm 680mm 680mm
Reach 393mm 418mm 439mm 462mm 476mm
Stack 582mm 601mm 620mm 639mm 658mm
Chainstay Length 447mm 447mm 447mm 447mm 447mm
Top Tube Length (Actual) 532mm 561mm 587mm 611mm 631mm
Ground-Top 912mm 931mm 950mm 969mm 988mm
Top Tube Length (Horizontal) 560mm 590mm 617mm 645mm 665mm
Head Tube Angle - Low Setting 70° 70° 70° 70° 70°
Standover Height 768mm 772mm 784mm 801mm 805mm
Wheel Base 1087mm 1118mm 1147mm 1176mm 1198mm
Head Tube Height 90mm 110mm 130mm 150mm 170mm
Seat Tube Angle (Actual) - Low Setting 71° 71° 71° 71° 71°
Seat Tube Length - Center to Top 394mm 445mm 483mm 533mm 584mm
Seat Tube Angle (Effective) - Low Setting 74° 74° 74° 74° 74°
Bottom Bracket Height - Low Setting 336mm 336mm 336mm 336mm 336mm
