Camber Comp 29
Overview
Technical Specifications
Geometry
Reviews

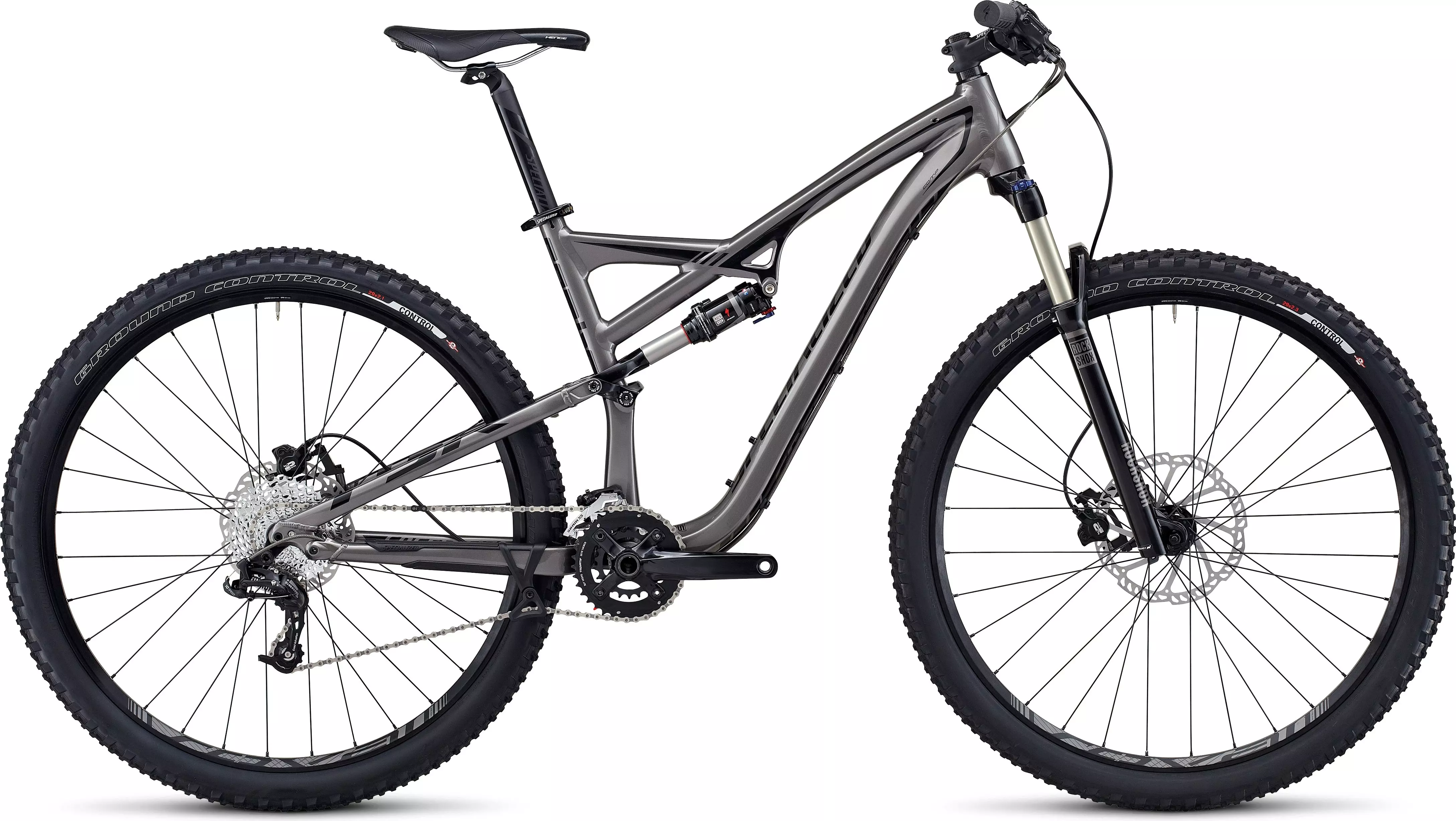

The 110mm-travel Camber FSR Comp utilizes and M5 alloy frame, custom SRAM S-1250, 10-speed XC Trail double crankset and 110mm of travel to create an ultra-capable trail machine.
  • Custom SRAM 10-speed Trail double-ring shifts fast while the PF30 spindle makes for an efficient and stiff crankset
  • RockShox 30 Gold Taper 29 fork has 110mm of travel, Solo Air spring, and a tapered steerer tube makes for lightweight and efficient trail suspension
  • Roval 29 rims mated to Specialized Hi Lo hubs, with 15mm endcaps, a 142mm rear hub spacing, and 12mm thru-axle increase wheel stiffness for more confident riding
  • M5 alloy FSR frame with 29er-specific geometry has 110mm of travel, 142+ dropouts, an all-new concentric sealed-cartridge bearing shock link and features internal cable routing for the Command Post BlackLite to create a lightweight and responsive trail weapon
  • RockShox Monarch RL air shock with Specialized's proprietary AUTOSAG smooths the trail and is simple and accurate to set up
  • New Tektro Gemini hydraulic brakes offer reliable stopping power in all conditions, while the Specialized Ground Control tires maintain traction and roll fast

Technical Specifications

FRAMESET
SWAT Bottle cage w/ SWAT Technology compatible (not included)
SEAT BINDER 7050 hard anodized alloy collar, QR, 34.9mm
HEADSET 1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
FRAME M5 hydroformed tubing, 29"" geometry, tapered headtube, internal Command Post BlackLite routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, bolt-on cable guides, 110mm travel
WHEELS
FRONT HUB Specialized Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 32h
REAR HUB Specialized Hi Lo disc, 4x-sealed cartridge bearings, 12mm thru-axle, 142mm spacing, 32h
SPOKES DT Industry Stainless, 3X front/rear 2.0
RIMS Roval 29, alloy disc, 26mm wide, 32h
FRONT TIRE Specialized Ground Control, 2Bliss Ready, 29x2.3"", foldable aramid bead, 60TPI
REAR TIRE Specialized Ground Control, 2Bliss Ready, 29x2.1"", foldable aramid bead, 60 TPI
DRIVETRAIN
BOTTOM BRACKET Threaded BB, sealed bearings
CHAIN SRAM PC 1031, 10-speed, PowerLink
CRANKSET Custom SRAM S-1250, 10-speed Trail double, GXP spindle, S: 170mm, Others: 175mm
CASSETTE SRAM PG-1030, 10-speed, 11-36
SHIFT LEVERS SRAM X5, 10-speed, trigger
FRONT DERAILLEUR SRAM X5, 10-speed, S3 direct mount for DMD, bottom pull
CHAINRINGS 36/22, w/ alloy guard
REAR DERAILLEUR SRAM X5, 10-speed, mid cage
COCKPIT
SADDLE Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST Specialized 2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, Others: 400mm
GRIPS Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
HANDLEBARS Specialized XC Mini-Riser, 6000 butted alloy, 720mm wide, 10mm rise, 8-degree backsweep, 6-degree upsweep, 31.8mm
STEM Specialized Trail, 6061 alloy, 4-bolt, 8-degree rise, 6-degree rise, 31.8mm clamp
BRAKES
BRAKE LEVERS Tektro Gemini
FRONT BRAKE Tektro Gemini, hydraulic disc, TR-8 rotor, S/M: 180mm, L/XL: 200mm rotor
REAR BRAKE Tektro Gemini, hydraulic disc, TR-8 rotor, S/M: 160mm, L/XL: 180mm rotor
SUSPENSION
FORK RockShox 30 Gold Taper 29, Solo Air spring, tapered alloy steerer, rebound adj., 9mm QR, 110mm travel
REAR SHOCK Custom Monarch RL w/ AUTOSAG, air spring, lockout and reb adj., 197x48mm

Geometry

Geometry Chart

Camber - Geometry

S M L XL
  S M L XL
Stem Length 60mm 75mm 90mm 100mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm
Handlebar Width 720mm 720mm 720mm 720mm
Reach 400mm 428mm 445mm 466mm
Stack 591mm 600mm 624mm 647mm
Chainstay Length 450mm 450mm 450mm 450mm
Top Tube Length (Actual) 535mm 562mm 589mm 621mm
Top Tube Length (Horizontal) 555mm 587mm 612mm 642mm
Head Tube Angle - Low Setting 70° 70° 70° 70°
Standover Height 745mm 755mm 758mm 762mm
Wheel Base 1100mm 1131mm 1156mm 1186mm
Head Tube Height 90mm 100mm 125mm 150mm
Seat Tube Angle (Actual) - Low Setting 70° 70° 70° 70°
Seat Tube Length - Center to Top 394mm 430mm 468mm 523mm
Seat Tube Angle (Effective) - Low Setting 75° 74.8° 74.5° 74.2°
Bottom Bracket Height - Low Setting 335mm 335mm 335mm 335mm
