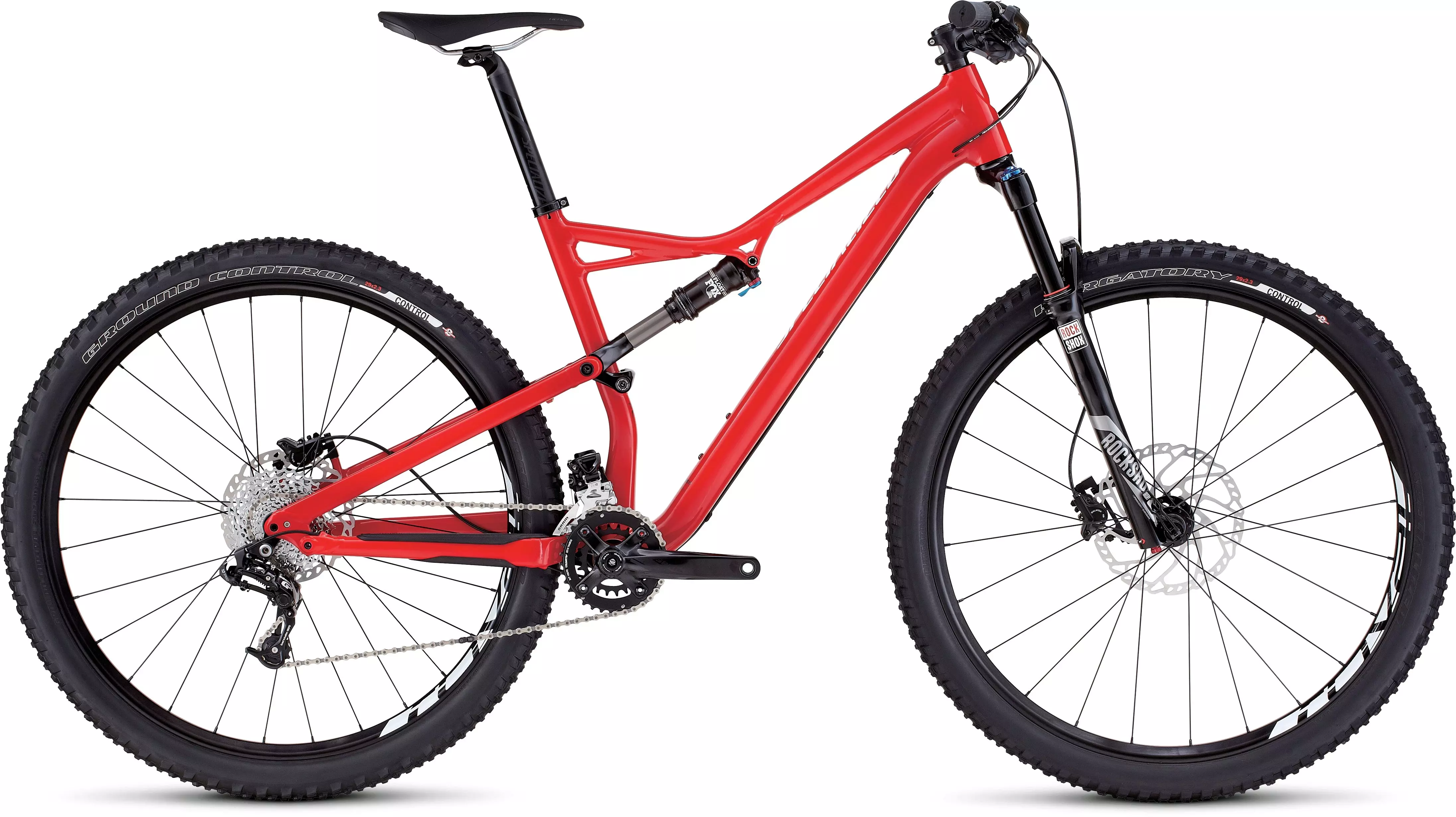

Camber Comp 29
$2,500.00
Part No.

Camber Comp 29

$2,500.00
Part No.  106503
load-spinner
Camber Comp 29
Overview
Technical Specifications
Geometry
Reviews
We're firm believers that a trail bike needs to be able to cover the entire trail at speed, and when it comes to sending it, it's tough to beat a 29er. Even more so, it's tough to beat our Camber Comp 29. With its fast 29-inch rolling stock, this Camber is designed for speed over the entire trail. In other words, it blends all of the trail bike characteristics that you want with the XC climbing prowess that you need. This is achieved by thoughtfully combining our M5 alloy Trail Chassis with a Camber FSR rear end. The combination results in blending lightweight, rigidity, and durability in one package. At both ends of the bike, you'll find sufficient travel lengths that deliver plenty of plush suspension—all without going overboard on big hit capability. This means that you don't have to sacrifice efficiency, weight, or sheer speed to ride how you want. And with our Trail 29 Geometry and lightweight, stiff, and smooth Concentric Pivot at the rear, we can guarantee it. For the build, we selected components that focus on strength and performance, like a custom SRAM double-ring crankset, powerful Shimano hydraulic disc brakes, and hand-built Roval wheels. It's everything you need, and nothing that you don't.
  • RockShox Revelation RC3 29 fork features a 15mm Maxle Lite thru-axle and 120mm of plush travel to take on hits and bumpy terrain with more control and confidence.
  • Shimano Deore M506 brake calipers and levers provide no-fuss dependability and feel in the brake department, ensuring that you have reliable hydraulic braking power over rough terrain.
  • A 29x2.3" Purgatory Control tire at the front and a 2.3" Ground Control tire at the rear work in tandem to provide remarkable traction, speed, and cut-resistance.
  • M5 alloy Trail Chassis w/ Camber FSR rear end has been paired with our Trail 29 Geometry to create a bike that's fast, durable, and just at home on the climbs as it is mowing over rock gardens. It also features our Taco Blade technology for the shortest, most nimble rear end possible, and internal shift cable routing to make clean lines and reliable shifting through any condition.
  • Connected with our FSR Concentric Linkage, a FOX FLOAT Performance DPS rear shock features AUTOSAG for easy set up and 120mm of active and independent travel over any type of terrain.

Technical Specifications

FRAMESET
SEAT BINDER Specialized, 7050 alloy, single bolt, 34.9mm
HEADSET Hella Flush, 1-1/8"" and 1-1/2"" threadless, Campy style upper w/ 1-1/2"" lower, cartridge bearings
FRAME M5 alloy, Trail 29 Geometry, PF30 BB, 142mm dropouts, internal shift cable routing, w/ Taco Blade, 120mm travel
WHEELS
FRONT HUB Specialized, Hi Lo disc, sealed cartridge bearings, 15mm thru-axle, 24h
REAR HUB Specialized, Hi Lo disc, 4x sealed cartridge bearings, 12mm thru-axle, 28h
INNER TUBES Standard, Presta valve
SPOKES DT Swiss Industry, stainless
RIMS Roval 29, alloy, 29mm inner width, 24/28h
FRONT TIRE Specialized Purgatory Control, 60TPI, 2Bliss Ready, folding bead, 29x2.3""
REAR TIRE Specialized Ground Control, 60TPI, 2Bliss Ready, folding bead, 29x2.3""
DRIVETRAIN
BOTTOM BRACKET SRAM, PF30, OS press-in bearings, sealed cartridge
CHAIN SRAM PC-1031, 10-speed, w/ PowerLink, nickel finish
CRANKSET Custom SRAM S-1250, 7050 alloy arms, 10-speed double, PF30, 34/22T, 104/64mm BCD spider
CASSETTE SRAM PG-1030, 10-speed, 11-36t
SHIFT LEVERS SRAM X7, 10-speed, w/ Matchmaker clamp
FRONT DERAILLEUR SRAM X7, mid direct mount, w/ Taco Blade
REAR DERAILLEUR SRAM GX Type 2.1,10-speed, mid cage
COCKPIT
SADDLE Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST Specialized, alloy, single bolt, 30.9mm
GRIPS Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness
HANDLEBARS Specialized, butted 6000 alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 750mm, 31.8mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise
BRAKES
BRAKE LEVERS Shimano BR-M615, hydraulic
FRONT BRAKE Shimano Deore BR-M506, hydraulic disc, dual piston, resin pads, S/M: 180mm rotor, L/XL: 200mm rotor
REAR BRAKE Shimano Deore BR-M506, hydraulic disc, dual piston, resin pads, S/M: 160mm rotor, L/XL: 180mm rotor
ACCESSORIES
PEDALS Nylon, CEN std., w/ toe clips
SUSPENSION
FORK RockShox Revelation RC3 29, Solo Air spring, 120mm travel, 3-position compression adjust, rebound adjust, tapered steerer, 46mm offset, 15mm Maxle Lite thru-axle
REAR SHOCK FOX Float Performance DPS, AUTOSAG, 205x53mm

Geometry

Geometry Chart

Camber - Geometry

S M L XL XXL
  S M L XL XXL
Stem Length 60mm 60mm 75mm 90mm 90mm
Crank Length 170mm 175mm 175mm 175mm 175mm
Seatpost Length 380mm 430mm 430mm 430mm 430mm
Handlebar Width 750mm 750mm 750mm 750mm 750mm
Reach 399mm 427mm 445mm 471mm 487mm
Stack 609mm 609mm 627mm 655mm 678mm
Wheelbase 1107mm 1135mm 1160mm 1197mm 1222mm
Bike Stand-Over Height 734mm 739mm 752mm 764mm 778mm
Head-Tube Length 95mm 95mm 115mm 145mm 170mm
Front-Center 673mm 701mm 726mm 763mm 788mm
Fork Rake/Offset 46mm 46mm 46mm 46mm 46mm
Head-Tube Angle 68.5° 68.5° 68.5° 68.5° 68.5°
Trail 97mm 97mm 97mm 97mm 97mm
B-B Height 330mm 330mm 330mm 330mm 330mm
Chain-Stay Length 437mm 437mm 437mm 437mm 437mm
Fork Length (full) 531mm 531mm 531mm 531mm 531mm
Seat-Tube Angle 75° 75° 75° 75° 75°
B-B Drop 42mm 42mm 42mm 42mm 42mm
Seat-Tube Length 396mm 430mm 468mm 523mm 523mm
Top-Tube Length (horizontal) 562mm 590mm 613mm 647mm 669mm
