Camber 29
Overview
Technical Specifications
Geometry
Reviews

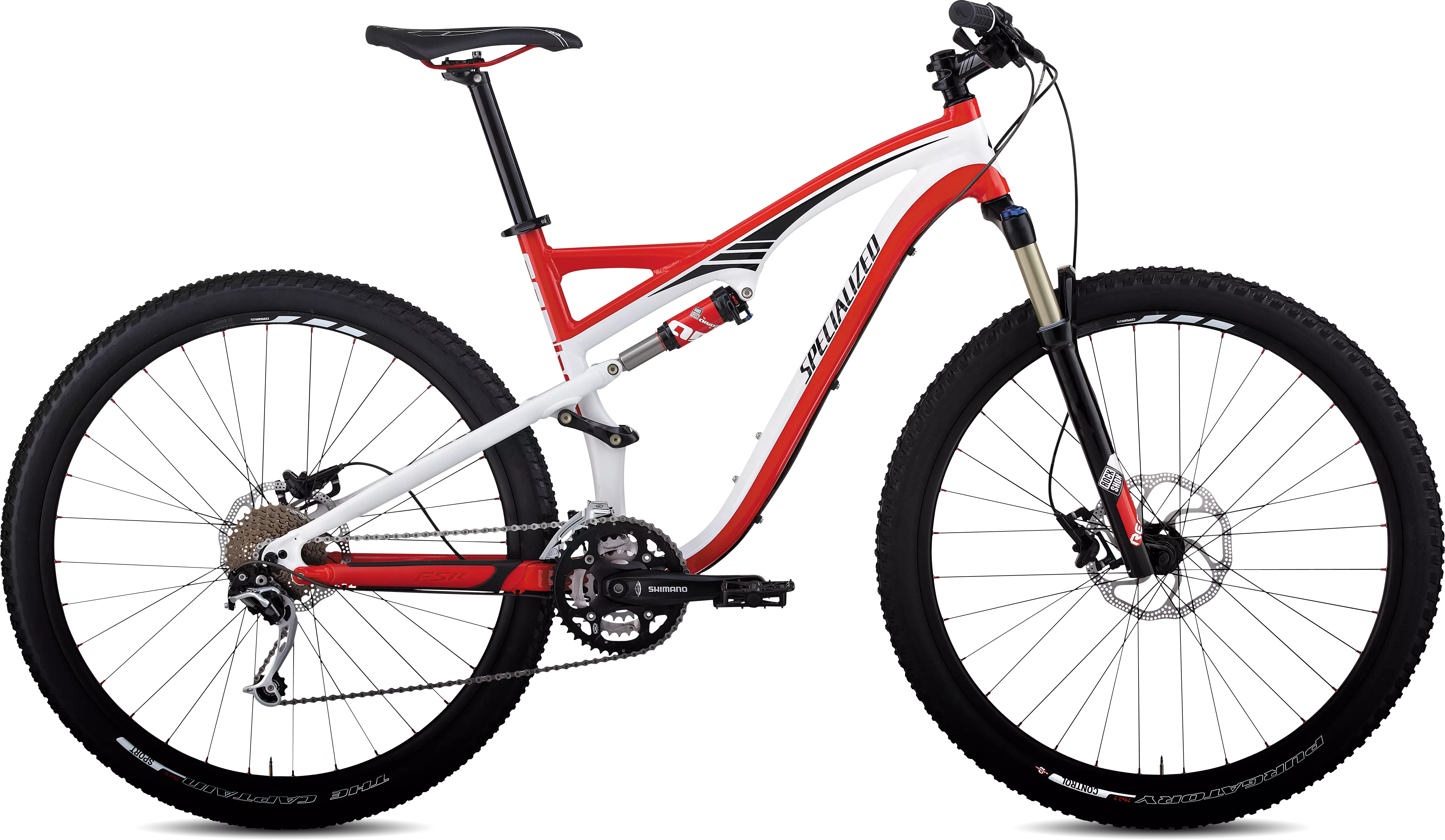

The 110mm-travel Camber 29 utilizes an M4 alloy frame, a RockShox Recon Gold fork for and custom Avid Elixir 3 R SL hydraulic disc brakes for a versatile trail package.
  • M4 alloy FSR frame with 29er-specific geometry has 100mm of travel, 135mm dropouts, sealed cartridge bearings and features cable routing for the all-new Command Post BlackLite
  • RockShox Ario RL air shock smooths the trail and has adjustable rebound and lockout
  • Responsive RockShox Recon Gold TK 29 air-sprung fork with 120mm of travel uses external adjustable rebound, Turn Key damping, and lockout for fine-tuned bump performance
  • The 720mm-wide Specialized All-Mountain low-rise handlebar is built to control rough trail riding
  • Custom Elixir 3 R SL brakes have lightweight alloy-backed pads, a tool-less reach adjustment and HS-1 rotors
  • The 9-speed Deore XT Shadow rear derailleur shifts super crisp and has increased clearance from trail obstacles
  • Specialized Body Geometry Riva features patented BG design for increased blood flow to sensitive areas

Technical Specifications

FRAMESET
SEAT BINDER 34.9mm clamp ID, 7050 hard anodized alloy collar w/ QR, black
HEADSET 1-1/8"" upper and lower, Campy-style cartridge bearings for integrated alloy HT
FRAME M4 hydroformed tubing, 29"" geometry, Command Post routing, 135mm dropouts, sealed cartridge bearing pivots, disc only, replaceable derailleur hanger, bolt-on cable guides, 100mm travel
WHEELS
FRONT HUB Specialized Hi Lo disc, OS 28 end caps, sealed cartridge bearing, QR, 32h
REAR HUB Specialized Hi Lo disc, double-sealed cartridge bearing, QR, 32h
SPOKES Stainless, 2.0mm (14g)
RIMS Custom Alex, disc, pinned and eyeleted, 27mm, 32h
FRONT TIRE Specialized Purgatory Control, 60 TPI, 2Bliss ready, aramid bead, dual-compound, 29x2.2""
REAR TIRE Specialized The Captain Sport, 60 TPI, wire bead, 29x2.0""
DRIVETRAIN
BOTTOM BRACKET Shimano, Octalink spline, cartridge bearing, 73mm
CHAIN KMC X-9, 9-speed, reusable Missing Link
CRANKSET Shimano Hollowtech, Octalink spline, replaceable rings, S: 170mm, Others: 175mm
CASSETTE Shimano 9-speed HG20, 11-34t,
SHIFT LEVERS Shimano Alivio, 9-speed, trigger, M430
FRONT DERAILLEUR Shimano SLX M660E, E-type for DMD, top-swing, bottom-pull,
REAR DERAILLEUR Shimano Deore XT Shadow M772, 9-speed, SGS long cage
COCKPIT
SADDLE Specialized Body Geometry Riva, 143mm width
SEATPOST 6061 alloy, 2-bolt micro adjust, setback head, 30.9mm, S/M:350mm, others:400mm
GRIPS Specialized lock-on, S/M: Grappler, Others: Grappler XL
HANDLEBARS Specialized All-Mountain low-rise, 6061 butted alloy, 720mm wide, 8º backsweep, 6º upsweep, 31.8mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise, S: 60mm, M: 75, L:90, XL/XXL:105mm
BRAKES
BRAKE LEVERS Custom Avid Elixir 3 R SL hydraulic, tool-less reach adj.
FRONT BRAKE Custom Avid Elixir 3 R SL, tool-less reach adj., alloy backed organic pad, HS-1 rotor S/M:180mm, Others: 200mm
REAR BRAKE Custom Avid Elixir 3 R SL, tool-less reach adj., alloy backed organic pad, HS-1 rotor S/M:160mm, Others: 180mm
ACCESSORIES
PEDALS Resin Test Ride Pedals with toe clips, CEN std.
SUSPENSION
FORK RockShox Recon Gold TK 29, TurnKey damper, Solo Air, alloy steerer, LO and reb adj., disc only, 110mm travel
REAR SHOCK RockShox Ario RL, air spring, rebound adj. and LO, 200x47mm

Geometry

Geometry Chart

Camber - Geometry

S M L XL XXL
  S M L XL XXL
Stem Length 90mm 90mm 105mm 105mm 105mm
Crank Length 170mm 175mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm 400mm
Handlebar Width 680mm 680mm 680mm 680mm 680mm
Reach 393mm 418mm 439mm 462mm 476mm
Stack 582mm 601mm 620mm 639mm 658mm
Chainstay Length 447mm 447mm 447mm 447mm 447mm
Top Tube Length (Actual) 532mm 561mm 587mm 611mm 631mm
Ground-Top 912mm 931mm 950mm 969mm 988mm
Top Tube Length (Horizontal) 560mm 590mm 617mm 645mm 665mm
Head Tube Angle - Low Setting 70° 70° 70° 70° 70°
Standover Height 768mm 772mm 784mm 801mm 805mm
Wheel Base 1087mm 1118mm 1147mm 1176mm 1198mm
Head Tube Height 90mm 110mm 130mm 150mm 170mm
Seat Tube Angle (Actual) - Low Setting 71° 71° 71° 71° 71°
Seat Tube Length - Center to Top 394mm 445mm 483mm 533mm 584mm
Seat Tube Angle (Effective) - Low Setting 74° 74° 74° 74° 74°
Bottom Bracket Height - Low Setting 330mm 330mm 330mm 330mm 330mm
