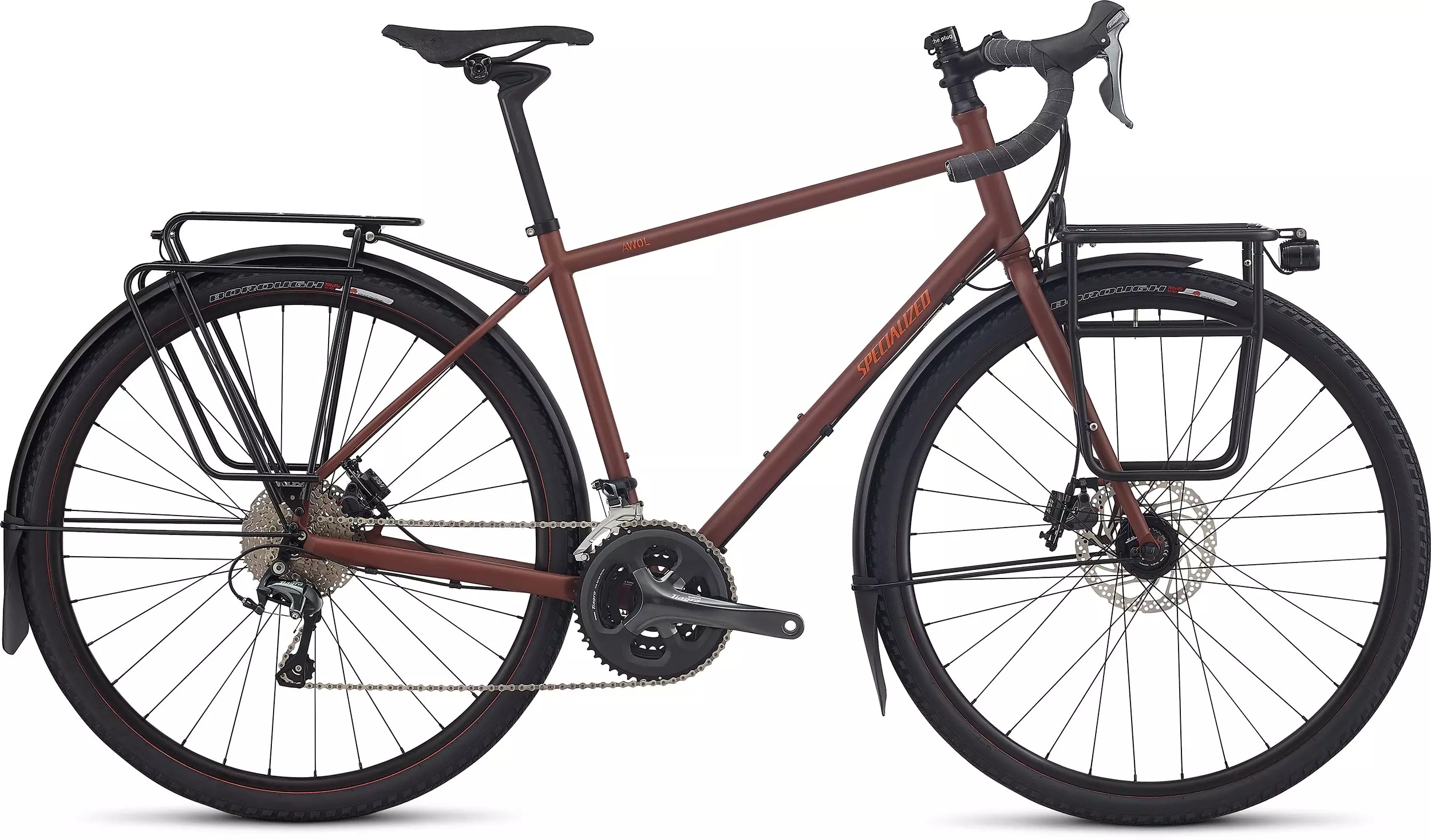

The AWOL Expert is equipped with everything you need to hit the road and head out on a great adventure.
Starting at the frame, it features heat-treated, custom-butted Cr-Mo tubing that's sure to stand up to years of hard riding and abuse. The geometry is also what you would called "dialed," as it's at once comfortable, efficient, and purpose-built to carrying big loads. We also gave this iteration a full bevy of features to further make it ready for the long haul, like fender and rack mounts, a kickstand plate (believe us, this is handier than you know with a loaded rig), and a Dynamo front hub that generates electricity to power lights without needing to plug-in.
For the spec, we gave it a wide range of gears and a triple Shimano Tiagra crankset, ultra-tough 45mm Borough Armadillo tires, and cable-actuated disc brakes. The road is calling, and you must go.
- The custom butted Cr-Mo steel frame provides plenty of stiffness, while still maintaining all-day compliance and comfort. Along with the integrated fender and rack mounts on both the frame and Cr-Mo fork, the AWOL provides the perfect blend of versatility and performance.
- Butted Cr-Mo fork w/ rack/fender mounts provide confident steering at a relatively low overall weight.
- Our Borough Armadillo tires perform on both paved and dirt roads, and their Armadillo casing prevents pesky punctures from ruining your day.
Manual Downloads
Technical Specifications
FRAMESET
| FRAME | Heat-treated & custom-butted Premium Cr-Mo tubing, internal light cable-routing-ready, Adventure Geometry, post mount disc, fender/rack mounts, kickstand plate |
| FORK | Butted premium Cr-Mo, unicrown, heat-treated |
| SEAT BINDER | AWOL forged alloy, CNC, stainless bolt, 29.8mm |
WHEELS
| RIMS | 29 disc, aluminum 6061-T6, double wall construction, w/ AWOL decal, 32h |
| FRONT HUB | Dynamo hub, Center Lock disc, quick-release, 6V 3W, 100x108mm, w/ rotor mount cover, 32h |
| REAR HUB | Center Lock disc, 135mm spacing, 32h |
| SPOKES | DT Swiss w/ Self-locking threads, 2.0/1.8/2.0 |
| REAR TIRE | Specialized Borough Armadillo, 60 TPI, 700x45mm |
| FRONT TIRE | Specialized Borough Armadillo, 60 TPI, 700x45mm |
| INNER TUBES | Standard, Presta valve |
DRIVETRAIN
| FRONT DERAILLEUR | Shimano Tiagra, clamp-on |
| REAR DERAILLEUR | Shimano Tiagra, GS cage, 10-speed |
| SHIFT LEVERS | Shimano Tiagra, 10-speed |
| CASSETTE | Shimano CS-HG50-10, 10-Speed 11-36t |
| CRANKSET | Shimano Tiagra |
| CHAIN | KMC X10, 10-speed w/ Missing Link™ |
| CHAINRINGS | 50/39/30T |
| BOTTOM BRACKET | Included w/ crankset |
COCKPIT
| STEM | Specialized, 3D forged alloy, 4-bolt, 7-degree rise |
| TAPE | Anza canvas tape |
| SADDLE | Anza, hollow Cr-Mo rails, aluminum bumper |
| HANDLEBARS | Specialized Adventure Gear AWOL, alloy, 125mm drop, 70mm short-reach, 12-degree flare-out |
| SEATPOST | Specialized CG-R, FACT carbon, single-bolt, 27.2mm |
BRAKES
| FRONT BRAKE | TRP HY/RD-C |
| REAR BRAKE | TRP HY/RD-C |
ACCESSORIES
| PEDALS | Nylon, 105x78x28mm, loose balls w/ reflectors |
* Specifications are subject to change without notice
Geometry
AWOL - Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm | 175mm | 175mm |
| Stem Length | 50mm | 50mm | 60mm | 70mm | 70mm |
| Seatpost Length | 350mm | 350mm | 350mm | 350mm | 350mm |
| Saddle Width | 143mm | 143mm | 143mm | 143mm | 143mm |
| Handlebar Width | 400mm | 420mm | 440mm | 440mm | 460mm |
| Reach | 379mm | 386mm | 392mm | 404mm | 409mm |
| Top Tube Length, Horizontal | 542mm | 555mm | 575mm | 600mm | 625mm |
| Stack | 565mm | 589mm | 617mm | 640mm | 664mm |
| Wheelbase | 1064mm | 1067mm | 1072mm | 1091mm | 1104mm |
| Chainstay Length | 455mm | 455mm | 455mm | 455mm | 455mm |
| Front Center | 618mm | 622mm | 626mm | 646mm | 658mm |
| BB Drop | 70mm | 70mm | 70mm | 70mm | 70mm |
| BB Height | 295.5mm | 295.5mm | 295.5mm | 295.5mm | 295.5mm |
| Seat Tube Angle | 72° | 73° | 73.5° | 74° | 75° |
| Head Tube Angle | 71° | 71° | 72° | 72° | 72° |
| Seat Tube Length | 455mm | 475mm | 495mm | 525mm | 550mm |
| Head Tube Length | 135mm | 160mm | 185mm | 210mm | 235mm |
| Bike Standover Height | 755mm | 774mm | 794mm | 821mm | 844mm |
| Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm | 50mm |
| Fork Length, Full | 405mm | 405mm | 405mm | 405mm | 405mm |
| Trail | 66mm | 66mm | 66mm | 73mm | 73mm |
