AWOL Expert Frameset
Technical Specifications

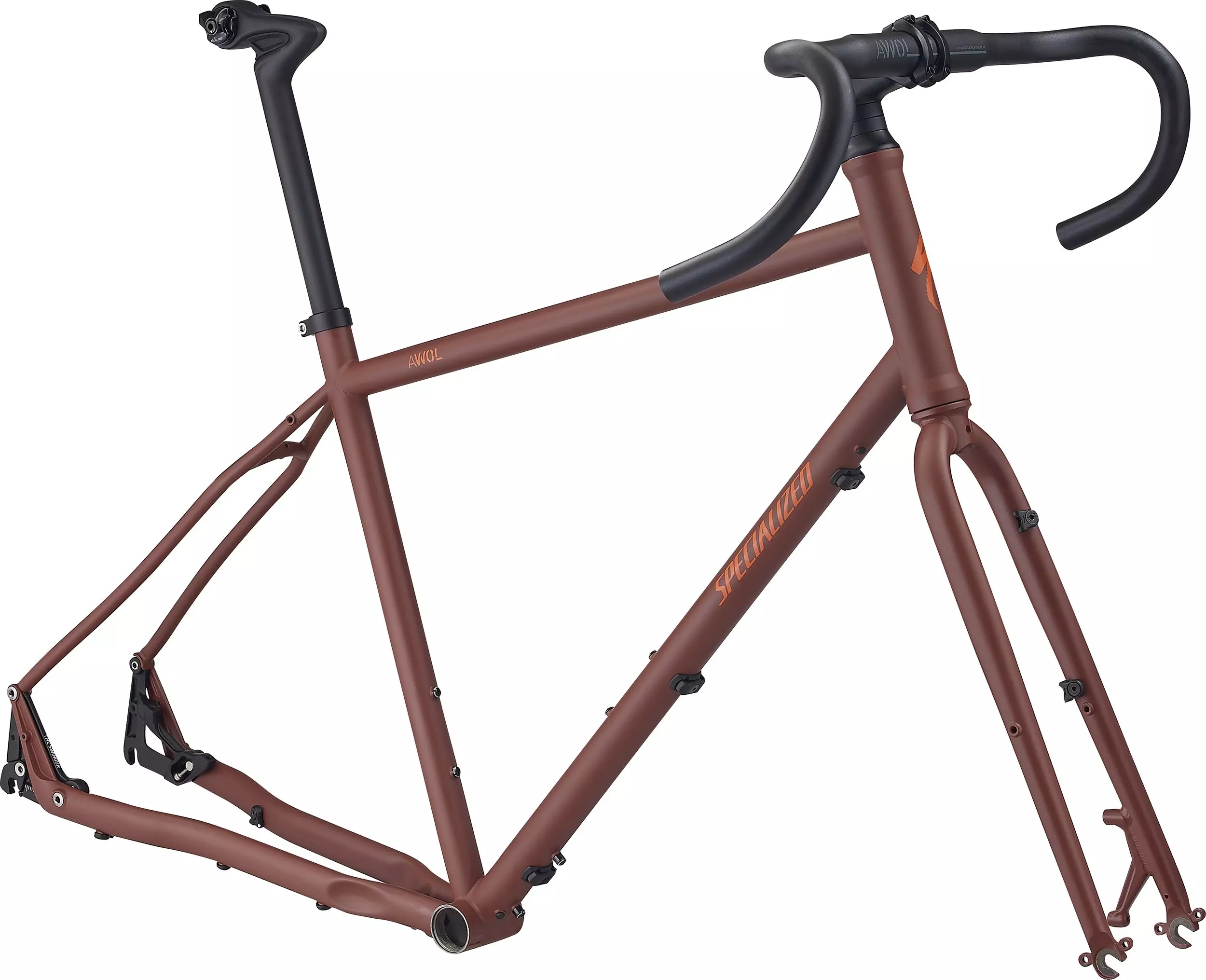

The AWOL Expert Module is equipped with everything you need to hit the road and head out on a great adventure. Starting at the frame, it features heat-treated, custom-butted Cr-Mo tubing that's sure to stand up to years of hard riding and abuse. The geometry is also what you would called "dialed," as it's at once comfortable, efficient, and purpose-built to carrying big loads. We also gave this frameset a full bevy of features to further make it ready for the long haul, like fender & rack mounts, a kickstand plate (believe us, this is handier than you know with a loaded rig). It's set up to accept disc brakes, and it's ready to be built to your exact specification.
  • The custom butted Cr-Mo steel frame provides plenty of stiffness, while still maintaining all-day compliance and comfort. Along with the integrated fender and rack mounts on both the frame and Cr-Mo fork, the AWOL provides the perfect blend of versatility and performance.
  • Butted Cr-Mo fork features both rack and fender mounts, combining rugged durability, confident steering, and more utility then the average layman will even know what to do with.

Technical Specifications

SADDLE Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
TAPE Specialized Adventure Gear S-Wrap Canvas Tape
SEATPOST Specialized CG-R, FACT carbon, single bolt, reflective, 27.2mm
STEM Specialized, 3D forged alloy, 4-bolt, 7-degree rise
HANDLEBARS Specialized Adventure Gear AWOL, alloy, 125mm drop, 70mm short-reach, 12-degree flare-out
SEAT BINDER AWOL forged alloy, CNC, stainless bolt, 29.8mm
FORK Butted premium Cr-Mo, unicrown, heat-treated
FRAME Heat-treated custom-butted Reynolds 725 premium Cr-Mo tubing, Adventure Geometry, internal light cable routing-ready, post disc mount, fender/rack mount, kickstand plate, SWINGER dropouts (Rohloff Speedhub compatible with OEM2 axleplate)


Geometry Chart

AWOL - Geometry

Stem Length 50mm 50mm 60mm 70mm 70mm
Seatpost Length 350mm 350mm 350mm 350mm 350mm
Saddle Width 143mm 143mm 143mm 143mm 143mm
Handlebar Width 400mm 420mm 440mm 440mm 460mm
Reach 379mm 386mm 392mm 404mm 409mm
Stack 565mm 589mm 617mm 640mm 664mm
Wheelbase 1064mm 1067mm 1072mm 1091mm 1104mm
Bike Stand-Over Height 755mm 774mm 794mm 821mm 844mm
Head-Tube Length 135mm 160mm 185mm 210mm 235mm
Front-Center 618mm 622mm 626mm 646mm 658mm
Fork Rake/Offset 50mm 50mm 50mm 50mm 50mm
Head-Tube Angle 71° 71° 72° 72° 72°
Trail 73mm 73mm 66mm 66mm 66mm
Chain-Stay Length 455mm 455mm 455mm 455mm 455mm
B-B Height 295.5mm 295.5mm 295.5mm 295.5mm 295.5mm
Seat-Tube Angle 75° 74° 73.5° 73° 72°
Fork Length (full) 405mm 405mm 405mm 405mm 405mm
B-B Drop 70mm 70mm 70mm 70mm 70mm
Seat-Tube Length 455mm 475mm 495mm 525mm 550mm
Top-Tube Length (horizontal) 542mm 555mm 575mm 600mm 625mm
