2015 AWOL Comp Frameset

0 Reviews

Color:

Satin Black/Black

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the color and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

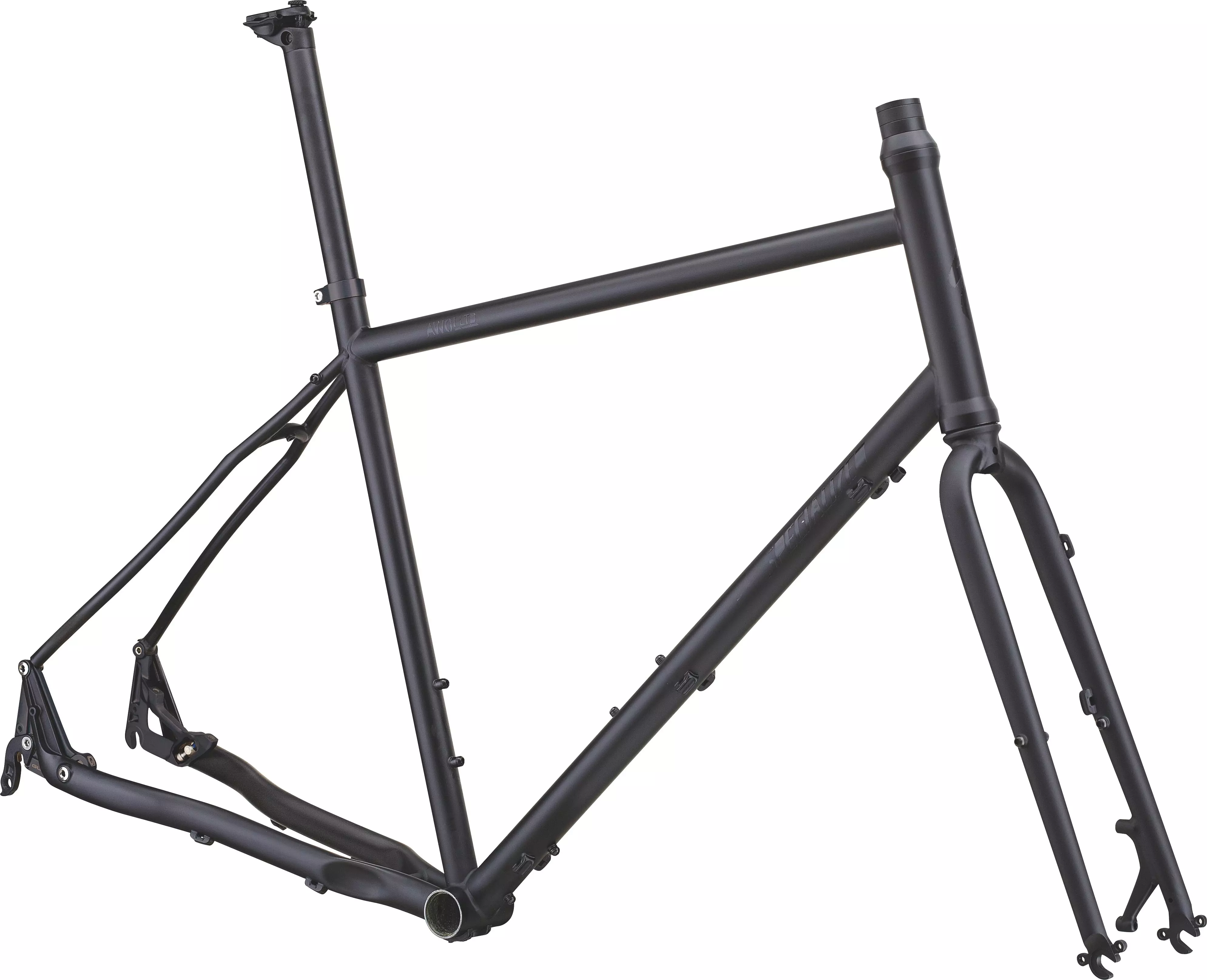

No matter the terrain or adventure, the AWOL Comp is up to the task. The Cr-mo frame w/ split seat stay and rocker dropout for optional belt drive is plenty stiff with enough compliance for all-day comfort, and the integrated rack/fender mounts assure you have the option to always ride prepared. Ready to be built up exactly how you want it.

Specialized alloy, 27.2mm seatpost is durable and comfortable
Cr-Mo tubing gives legendary steel feel w/ split seat stay and custom SWINGER dropouts to run drivetrain of your choice, including belt
Butted Cr-Mo fork w/ rack/fender mounts provides confident steering at a low weight

Technical Specifications

FRAMESET

FRAME

Reynolds 725/520 premium Cr-Mo, fully butted, custom SWINGER dropouts to run any drivetrain, including belt

FORK

Cr-Mo, unicrown, custom blade curve, w/ integrated cast dropouts

HEADSET

1-1/8"" sealed Cr-Mo cartridge bearings integrated w/ headset, 15mm cone spacer

SEAT BINDER

AWOL forged alloy, CNC, stainless bolt, 29.8mm

COCKPIT

SEATPOST

Specialized alloy, 27.2mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL
Seat-Tube Angle	74°	73.5°	73°	72°
Head-Tube Length	160mm	185mm	210mm	235mm
Seat-Post Length	350mm	350mm	350mm	350mm
Head-Tube Angle	71°	72°	72°	72°
Chain-Stay Length	455mm	455mm	455mm	455mm
Top-Tube Length, Horizontal	555mm	575mm	600mm	625mm
Front-Center	622mm	626mm	646mm	659mm
Handle-Bar Width	400mm	420mm	440mm	460mm
Stand-Over Height	773.7mm	794.1mm	821.3mm	843.5mm
Seat-Tube Length, B-B Center to Top	475mm	495mm	525mm	550mm
Fork Rake	50mm	50mm	50mm	50mm
B-B Drop	70mm	70mm	70mm	70mm
Stack	589mm	617mm	640mm	664mm
Reach	386mm	392mm	404mm	409mm
Trail	71mm	64mm	64mm	64mm
Wheelbase	1067mm	1072mm	1092mm	1104mm
Crank Length	170mm	172.5mm	175mm	175mm
Stem Length	60mm	75mm	75mm	90mm
