Ariel Sport
Part No.

Ariel Sport

Part No.
Ariel Sport
Technical Specifications

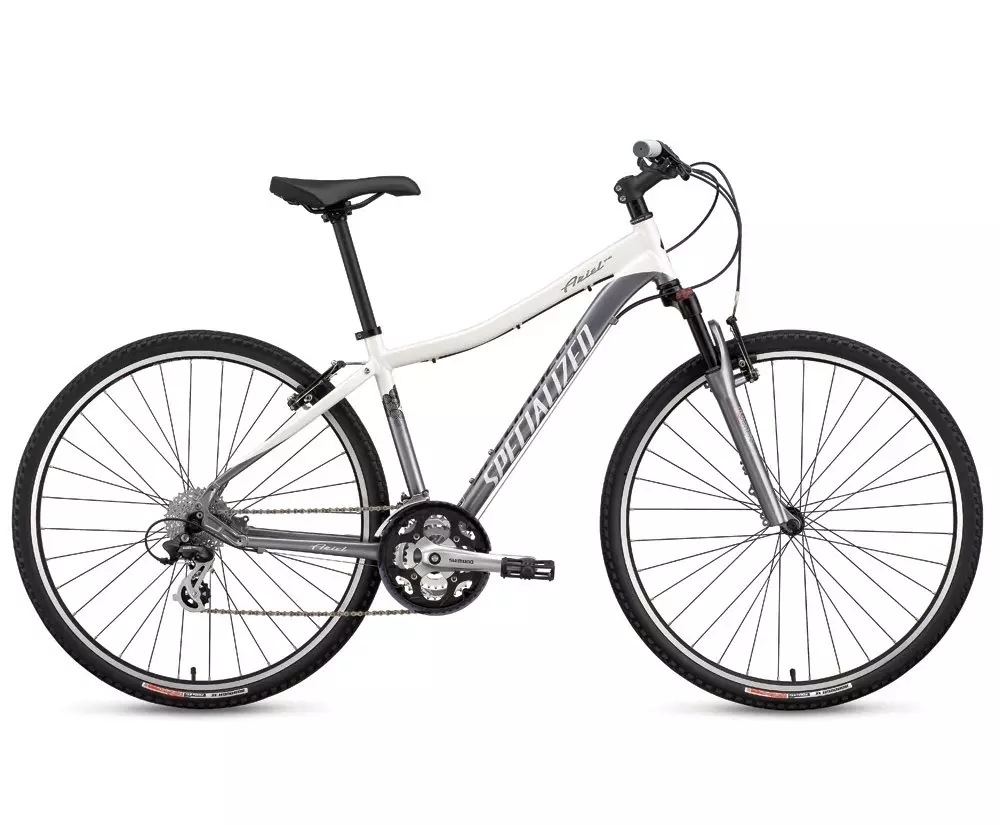

As the only true, women's-specific hybrid bike available, the new Ariel is your all-access pass to road and mountain riding. Its lightweight and versatile women's frame, MTB-adapted geometry, riser bar and mountain-capable fork create the perfect riding position for combined stability and agility across both pavement and dirt.
  • The Ariel Sport’s A1 Premium Aluminum frame has rack and fender braze-ons so you have options for carrying gear, forged dropouts add extra strength.
  • The 75mm-travel suspension fork uses coil springs for smooth action and features a mechanical lockout for added efficiency on climbs.
  • The Shimano Acera rear derailleur provides surefire shifts.
  • The CT-700c rims have CNC-machined sidewalls for consistent braking and are double-walled for long life.
  • The saddle uses our patented Body Geometry cutout to keep blood flowing to your soft parts.

Technical Specifications

CHAIN KMC Z7, 1/2"" x 3/32""
BOTTOM BRACKET FSA BB-7420, cartridge bearings, 68mm x 122.5mm for 47.5mm chain line
CRANKSET Shimano FC-M36108 w/ chainguard
FRONT DERAILLEUR Shimano FD-C051BM, 31.8mm clamp, top swing, dual pull
SHIFT LEVERS Shimano SL-MC40, 8-speed, rapid fire
CASSETTE SRAM PG-830, 8-speed, 11-32t
CHAINRINGS 48A x 38S x 28S
FORK RST Neon Pro ML700, 75mm, 1-1/8"" threadless Hi-Ten steerer, 28.6mm stanchions, 1pc. alloy lower w/ disc mount, coil/mcu w/ preload adj., spring type seal
FRONT HUB Specialized, forged alloy, double sealed, ground race, 32h
REAR HUB Specialized, forged alloy, double sealed, ground race, cassette, QR, 32h
INNER TUBES Specialized schraeder valve
SPOKES 1.8mm (15g) stainless
FRONT TIRE Specialized Borough XC Sport 700x45c, 60TPI, wire bead
RIMS Specialized/Alex Crosstrail, 700c, alloy double wall w/ machine sidewalls, 32h
REAR TIRE Specialized Borough XC Sport 700x45c, 60TPI, wire bead
SADDLE Specialized Body Geometry, 155mm width, front and rear bumpers
SEATPOST Specialized two bolt, no offset, micro adjust, 27.2mm
STEM Specialized forged alloy, 2-bolt, 25.4mm, 15 degree rise
HANDLEBARS Specialized alloy riser bar, 25.4mm, 25mm rise, 620mm wide, 8 degree back sweep, 8 degree up
GRIPS Myka, closed end, 130mm
FRONT BRAKE Alloy linear pull w/ adj. housing, 1pc. pad
BRAKE LEVERS Shimano (integrated w/ shifter)
REAR BRAKE Alloy linear pull w/ adj. housing, 1pc. pad
PEDALS Composite body, 9/16""
HEADSET Specialized 1-1/8"" threadless, loose ball
SEAT BINDER Specialized forged alloy
FRAME Specialized A1 Premium Aluminum, low standover frame with Designs for Women geometry, forged dropouts w/ replaceable 98954020 hanger, integrated kickstand mount


Geometry Chart

- Geometry

  38 - XS 43 - S 49 - M 53 - L
Handle-Bar Width 350mm 350mm 350mm 350mm
Reach 575mm 580mm 595mm 610mm
Stack 381mm 432mm 483mm 533mm
Wheelbase 620mm 620mm 620mm 620mm
Seat-Tube Length, B-B Center to Top 442mm 442mm 442mm 442mm
Head-Tube Length 170mm 170mm 170mm 175mm
Ground-Top 65mm 65mm 65mm 65mm
Top-Tube Length, Horizontal 74mm 74mm 74mm 73.5mm
Front-Center 120mm 120mm 130mm 140mm
Head-Tube Angle 638° 645° 665° 674°
Stand-Over Height 90mm 90mm 90mm 105mm
Fork Rake 1072mm 1078mm 1099mm 1108mm
Trail 687mm 730mm 767mm 800mm
Chain-Stay Length 43mm 43mm 43mm 43mm
Seat-Tube Angle 99° 96° 96° 92°
B-B Drop 68.5mm 69mm 69mm 69.5mm
