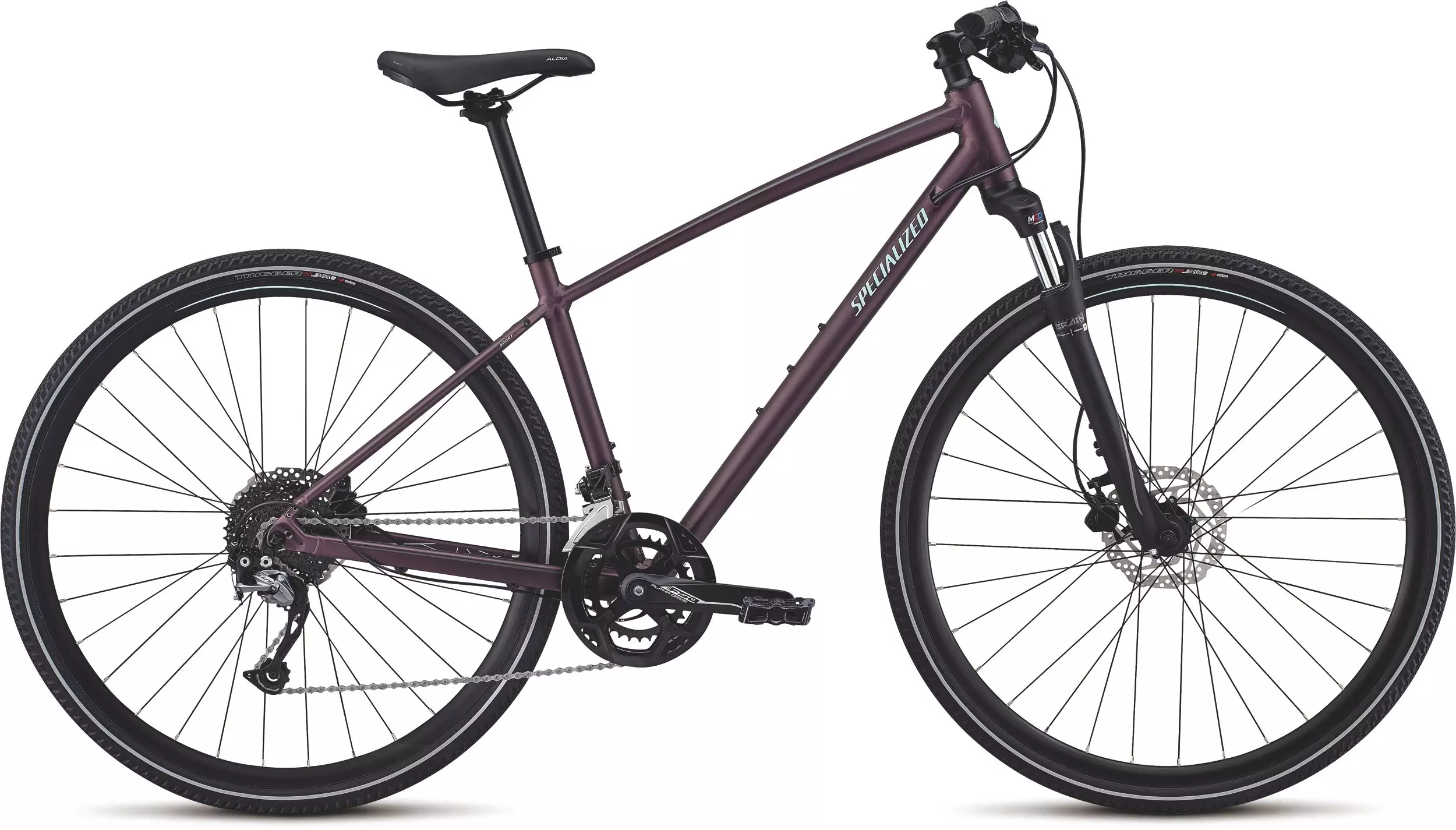

2018 Ariel Sport

The Ariel Sport will see you tackling workouts on either paved or dirt surfaces with equal confidence, and of course, you'll look good while doing it, too.

Its hard-working component package is paired with the ever-reliable A1 SL premium aluminum frame and powerful, no-nonsense hydraulic disc brakes. And with a Women's Fitness Geometry that's designed to keep you comfortable while you're burning up the miles, and features that are as versatile as they are efficient, you'll find yourself consistently needing to set new goals to achieve in your fitness quest.

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized A1 SL Premium Aluminum, Fitness Geometry, fully-manipulated butted tubing, internal cable routing, flat mount disc, rack and Plug + Play fender mounts

SEAT BINDER

Bolt type, alloy, 31.8mm

WHEELS

RIMS

700C disc, double wall

FRONT HUB

Alloy, Center Lock disc, loose ball bearing, QR, 32h

REAR HUB

Shimano, Center Lock disc, 8/9/10-speed freehub, loose ball bearing, QR, 32h

SPOKES

Stainless, 14g

FRONT TIRE

Trigger Sport Reflect, 60 TPI, wire bead, 700x38mm

REAR TIRE

Trigger Sport Reflect, 60 TPI, wire bead, 700x38mm

INNER TUBES

Presta, 48mm valve

SUSPENSION

FORK

SR Suntour NEX w/ Specialized Fitness Brain technology, 55mm of travel, 1-1/8" steerer, QR, fender mounts

DRIVETRAIN

FRONT DERAILLEUR

microSHIFT Marvo LT, 31.8mm clamp, 9-speed

REAR DERAILLEUR

Shimano Alivio, Shadow, SGS cage, 9-speed

SHIFT LEVERS

microSHIFT, 2x9-speed

CASSETTE

Sunrace, 9-Speed, 11-36t

CHAIN

KMC X9, EPT anti-corrosion coating, 9-speed w/ Missing Link™

CRANKSET

FSA Alpha Drive, 3-piece

CHAINRINGS

44/32T, alloy outer ring, steel inner ring

COCKPIT

STEM

3D forged alloy, 7-degree rise, 31.8mm clamp

HANDLEBARS

Double-butted alloy, 9-degree backsweep, 31.8mm

GRIPS

Specialized Body Geometry Women's XCT, lock-on

SADDLE

Specialized Aldia Sport, steel rails, 155mm

SEATPOST

Alloy, 12mm offset, 2-bolt clamp, 27.2mm

BRAKES

REAR BRAKE

Tektro HD-R310, hydraulic disc, resin pads, flat mount, 160mm Shimano RT10 Center Lock rotor

FRONT BRAKE

Tektro HD-R305, hydraulic disc, resin pads, post mount, 160mm rotor

ACCESSORIES

PEDALS

Specialized Body Geometry Fitness, platform, plastic

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
XSSML
Crank Length165mm165mm170mm170mm
Handlebar Width640mm640mm660mm660mm
Stem Length60mm70mm80mm90mm
Saddle Width155mm155mm155mm155mm
Seatpost Length350mm350mm350mm350mm
Seat Tube Length, BB Center to Top355mm375mm425mm475mm
Fork Rake42mm42mm42mm42mm
Standover Height697mm725mm758mm790mm
Stack580mm594mm611mm630mm
Reach378mm390mm400mm412mm
Head Tube Length110mm125mm145mm95mm
Head Tube Angle70°70°70°70°
BB Drop65mm65mm65mm65mm
Trail87mm87mm87mm87mm
Front Center613mm630mm641mm659mm
Chainstay Length445mm445mm445mm445mm
Wheelbase1051mm1067mm1078mm1096mm
Top Tube Length, Horizontal555mm572mm587mm604mm
Seat Tube Angle73°73°73°73°
