Ariel Comp Disc
$1,200.00
Part No.

Ariel Comp Disc

$1,200.00
Part No.  106474
load-spinner
Ariel Comp Disc
Overview
Technical Specifications
Geometry
Reviews

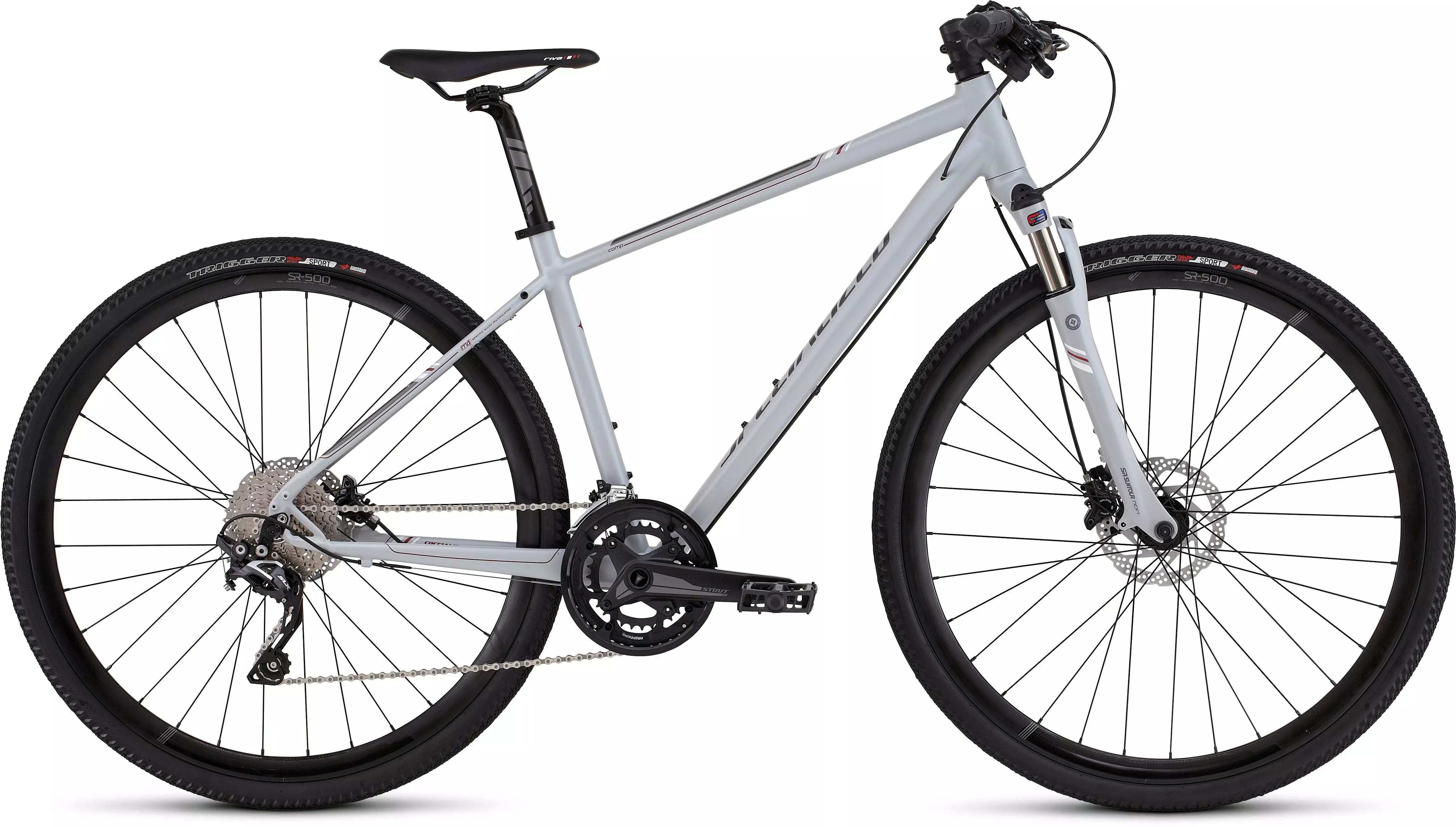

Take your fitness to new and adventurous levels with the Ariel Comp Disc, a bike that'll see you tackling workouts on paved or dirt surfaces with equal confidence. Its high-quality M4 aluminum frame is lightweight and nimble and is paired with a premium component package to provide a great performance ride. With its Women's Fitness Geometry designed to keep you comfortable while you're burning up the miles, and features that are as versatile as they are efficient, you'll find yourself consistently needing to set new goals in your fitness quest.
  • Designed for women who want to mix adventure with fitness, the dirt-ready and lightweight M4 Aluminum frame features Women’s Fitness Geometry—meaning you’ll go fast with maximum efficiency, but without the discomfort of an aggressive ride position. The more comfortable you are, the longer you’ll ride.
  • Hydraulic Disc brakes by Shimano provide powerful stopping power in all conditions, while also reducing hand fatigue while braking.
  • Enjoy greater control over varying terrain thanks to the custom, easy-adjust, Multi-Circuit Damping fork with 50mm of travel, tuned for lighter riders.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.8mm
HEADSET FSA, Campy style, integrated cartridge bearings
FRAME Specialized M4 Aluminum, Women's Fitness Geometry, women's double-butted tube sets w/ smooth welds, internal cable routing, forged dropouts, disc mount, fender/rack mounts
WHEELS
FRONT HUB Specialized, Hi Lo disc, alloy, RCC bearing system, QR, 32h
REAR HUB Specialized Stout XC, Hi Lo disc, alloy, RCC bearing system, QR, 32h
SPOKES Stainless, 14g
FRONT TIRE Specialized Trigger Sport, 60TPI, BlackBelt protection, 700x38mm
RIMS Alloy, double-wall, disc
REAR TIRE Specialized Trigger Sport, 60TPI, BlackBelt protection, 700x38mm
DRIVETRAIN
BOTTOM BRACKET Sealed external cups
CHAIN KMC X10, 10-speed, w/ reusable MissingLink
CRANKSET Specialized Stout SL, 44/32T, w/ chainguard
CASSETTE Shimano, 10-speed, 11-36t
SHIFT LEVERS Shimano SLX, 10-speed
FRONT DERAILLEUR Shimano, top swing, dual pull
REAR DERAILLEUR Shimano SLX Shadow, 10-speed
COCKPIT
SADDLE Body Geometry Women's Riva Comp, hollow Cr-Mo rails, 155mm
SEATPOST Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm
GRIPS Specialized Body Geometry XC Contour Women's, Kraton w/ gel, lock-on, closed end
HANDLEBARS Specialized, flat bar, double-butted 6061 alloy, 10-degree backsweep, 31.8mm
STEM Specialized, 3D forged alloy, 4-bolt, 6-degree rise
BRAKES
BRAKE LEVERS Shimano, hydraulic
FRONT BRAKE Shimano BR-M447, hydraulic disc, resin pads, 160mm rotor
REAR BRAKE Shimano BR-M447, hydraulic disc, resin pads, 160mm rotor
ACCESSORIES
PEDALS Alloy, w/ reflectors
SUSPENSION
FORK Custom SR Suntour NCX, custom Multi-Circuit Damping, custom coil/MCU spring weights, 50mm travel, integrated remote hydraulic lockout lever, mag lowers, Cr-Mo stanchions, post disc mount

Geometry

Geometry Chart

Ariel - Geometry

XS S M L XL
  XS S M L XL
Stem Length 60mm 70mm 70mm 90mm 90mm
Crank Length 165mm 165mm 170mm 170mm 175mm
Seatpost Length 350mm 350mm 350mm 350mm 350mm
Handlebar Width 640mm 640mm 660mm 660mm 660mm
Reach 387mm 394mm 402mm 413mm 421mm
Stack 565mm 584mm 598mm 612mm 635mm
Wheelbase 1052mm 1066mm 1079mm 1095mm 1112mm
Bike Stand-Over Height 357mm 357mm 357mm 357mm 357mm
Head-Tube Length 85mm 105mm 120mm 135mm 160mm
Front-Center 614mm 627mm 641mm 657mm 673mm
Fork Rake/Offset 38mm 38mm 38mm 38mm 38mm
Head-Tube Angle 70° 70° 70° 70° 70°
Trail 89mm 89mm 89mm 89mm 89mm
B-B Height 297mm 297mm 297mm 297mm 297mm
Chain-Stay Length 445mm 445mm 445mm 445mm 445mm
Fork Length (full) 465mm 465mm 465mm 465mm 465mm
Seat-Tube Angle 73° 73° 73° 73° 73°
B-B Drop 60mm 60mm 60mm 60mm 60mm
Seat-Tube Length 345mm 395mm 440mm 485mm 550mm
Top-Tube Length (horizontal) 560mm 572mm 585mm 600mm 615mm
