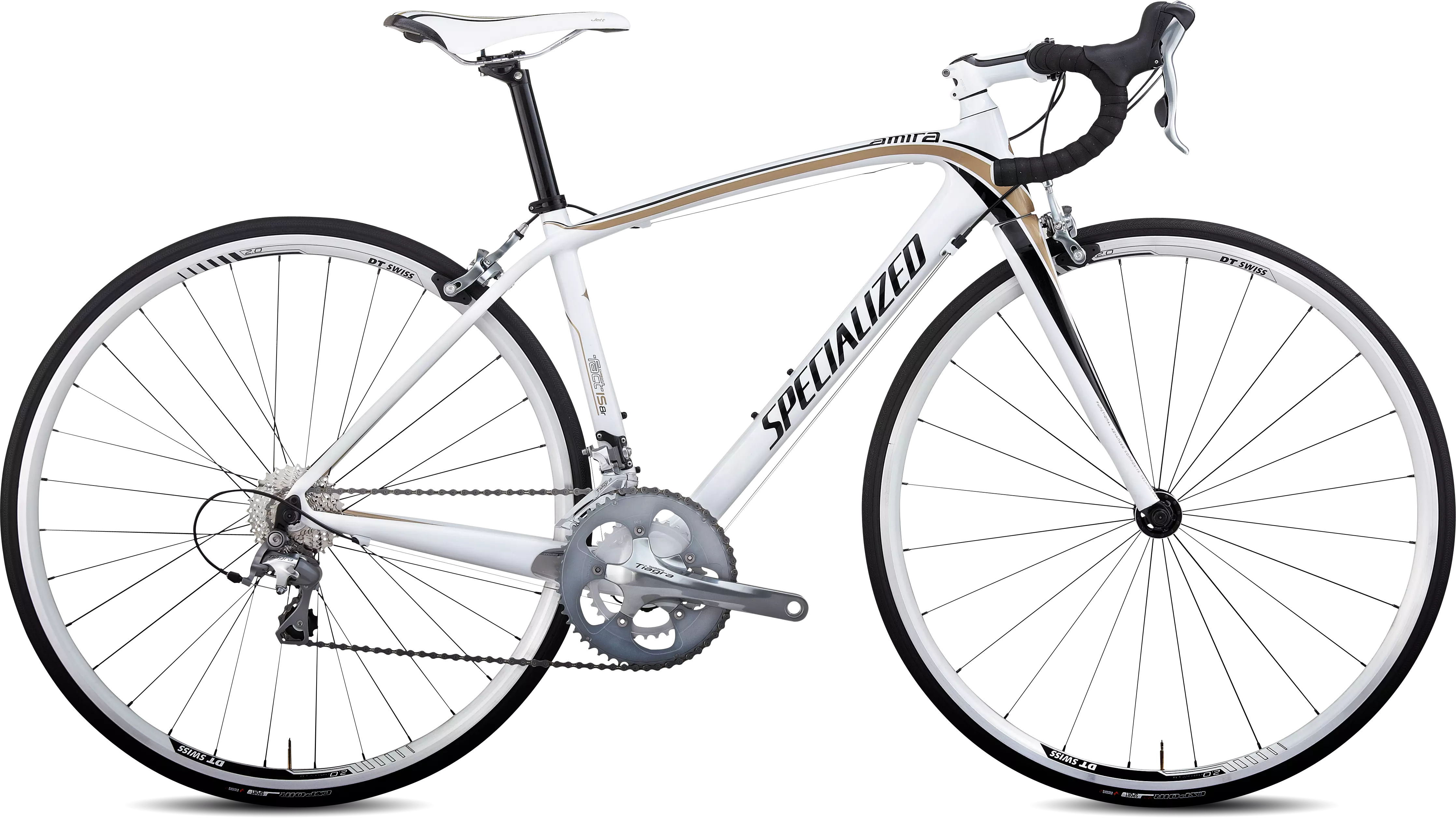

For women who live to compete—whether it's a local crit or a city-line sprint with the weekend group—the Amira offers a light, stiff FACT carbon frame with women's performance geometry for optimal fit and performance, plus lightweight, high-value Shimano Tiagra components.
  • FACT IS 8r carbon frame uses women's performance geometry and carbon lay-up, with integrated, tapered head tube, to create a light, stiff and fast ride
  • FACT full-carbon monocoque fork with a tapered 1-1/8" to 1-3/8" headset for strength and precision steering
  • Significantly lighter than comparable-level wheelsets, these tough new DT-Axis 2.0 hoops roll smooth and fast
  • Shimano's new Tiagra 10-speed compact drivetrain for durable reliability and wide-range gearing
  • Specialized Body Geometry Jett Gel women's saddle features light, durable hollow Cr-Mo rails for all-day riding efficiency

Technical Specifications

DRIVETRAIN
CHAIN New Shimano Tiagra 10-speed
BOTTOM BRACKET With crankset
CRANKSET New Shimano Tiagra 10-speed
FRONT DERAILLEUR New Shimano Tiagra 10-speed
SHIFT LEVERS New Shimano Tiagra STI 10-speed
CASSETTE New Shimano Tiagra, 10-speed, 12-28t
CHAINRINGS 50/34
REAR DERAILLEUR New Shimano Tiagra 10-speed
WHEELS
REAR WHEEL DT Axis 2.0
INNER TUBES Lightweight, presta
FRONT TIRE Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x23c
REAR TIRE Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x23c
FRONT WHEEL DT Axis 2.0
COCKPIT
SADDLE Body Geometry Jett Gel w/ hollow Cr-Mo rails
TAPE Specialized S-Wrap, w/ gel
SEATPOST New Specialized Sport, alloy, 27.2mm
STEM Specialized EliteSet, 3D forged alloy, 12-degree, 4-position adjustable, 4-bolt, 31.8mm clamp
HANDLEBARS Specialized Women's Comp, alloy, shallow drop
BRAKES
FRONT BRAKE New Shimano Tiagra
REAR BRAKE New Shimano Tiagra
ACCESSORIES
PEDALS Nylon flat test ride, loose ball, w/ reflectors
FRAMESET
HEADSET 1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings, w/ 20mm cone spacer and 20mm of spacers
SEAT BINDER Forged alloy, 32.6mm
FORK Specialized FACT carbon, full monocoque, 1-1/8"" to 1-3/8"" tapered steerer
FRAME Specialized FACT 8r carbon, FACT IS construction, women's tubesets, women's race geometry, 1-1/8"" to 1-3/8"" head tube, threaded BB

Geometry

Geometry Chart

- Geometry

  440.0 480.0 510.0 540.0 560.0
Crank Length 165mm 165mm 170mm 170mm 175mm
Stem Length 75mm 75mm 90mm 100mm 100mm
Handle-Bar Width 360mm 380mm 400mm 400mm 420mm
Reach 365mm 371mm 378mm 378mm 380mm
Stack 503mm 515mm 528mm 547mm 564mm
Wheelbase 970mm 974mm 976mm 982mm 993mm
Seat-Tube Length, B-B Center to Top 390mm 420mm 460mm 490mm 510mm
Head-Tube Length 105mm 115mm 125mm 145mm 165mm
Top-Tube Length, Horizontal 498mm 506mm 518mm 537mm 548mm
Front-Center 576mm 580mm 582mm 588mm 596mm
Head-Tube Angle 70.5° 71.25° 72° 72° 72°
Stand-Over Height 692mm 718mm 735mm 758mm 777mm
Fork Rake 51mm 51mm 49mm 49mm 49mm
Trail 66mm 62mm 59mm 59mm 59mm
Chain-Stay Length 405mm 405mm 405mm 405mm 408mm
Seat-Tube Angle 76° 75.75° 75.5° 74° 73.5°
B-B Drop 73mm 73mm 73mm 73mm 71.5mm
Seat-Post Length 300mm 300mm 300mm 300mm 350mm
