Amira Apex Compact

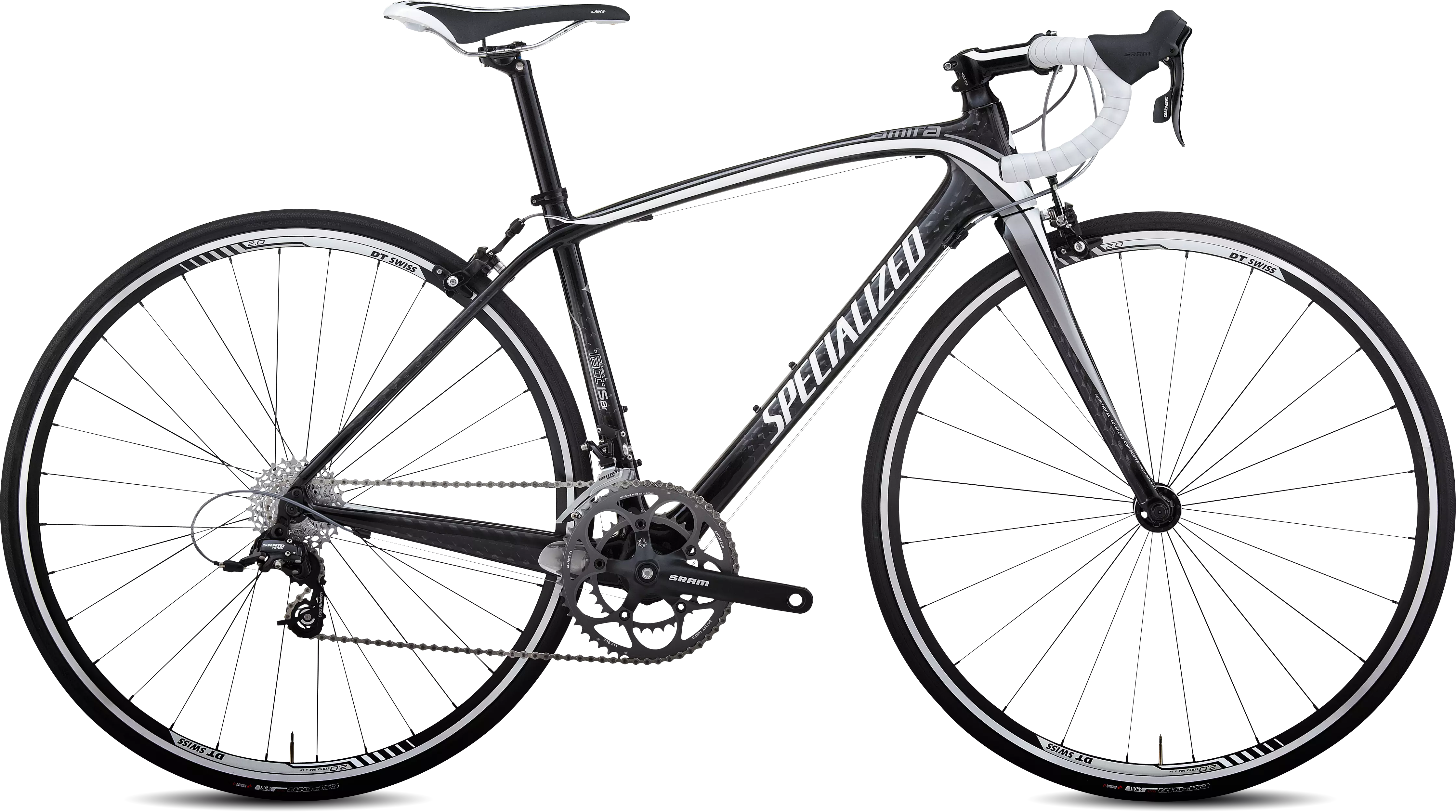

2012 Amira Apex Compact
Technical Specifications
FRAMESET
FRAME
Specialized FACT 8r carbon, FACT IS construction, women's tubesets, women's performance geometry, 1-1/8"" to 1-3/8"" head tube, threaded BB
FORK
Specialized FACT carbon, full monocoque, 1-1/8"" to 1-3/8"" tapered steerer
HEADSET
1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings, w/ 20mm cone spacer and 20mm of spacers
SEAT BINDER
Forged alloy, 32.6mm
WHEELS
FRONT WHEEL
DT Axis 2.0
REAR WHEEL
DT Axis 2.0
FRONT TIRE
Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x23c
REAR TIRE
Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x23c
INNER TUBES
Lightweight, presta
DRIVETRAIN
SHIFT LEVERS
SRAM Apex DoubleTap, 10-speed
FRONT DERAILLEUR
SRAM Apex
REAR DERAILLEUR
SRAM Apex
CASSETTE
SRAM Apex, 10-speed, 11-28t
CRANKSET
SRAM S150
CHAINRINGS
50/34
BOTTOM BRACKET
SRAM Power Spline BB
CHAIN
KMC X10 CP
COCKPIT
HANDLEBARS
Specialized Women's Comp, alloy, shallow drop
STEM
Specialized EliteSet, 3D forged alloy, 12-degree, 4-position adjustable, 4-bolt, 31.8mm clamp
TAPE
Specialized S-Wrap, w/ gel
SADDLE
Body Geometry Jett Gel w/ hollow Cr-Mo rails
SEATPOST
New Specialized Sport, alloy, 27.2mm
BRAKES
FRONT BRAKE
SRAM Apex
REAR BRAKE
SRAM Apex
ACCESSORIES
PEDALS
Nylon flat test ride, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 440.0 | 480.0 | 510.0 | 540.0 | 560.0 | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 76° | 75.75° | 75.5° | 74° | 73.5° |
| Head-Tube Length | 105mm | 115mm | 125mm | 145mm | 165mm |
| Seat-Post Length | 300mm | 300mm | 300mm | 300mm | 350mm |
| Head-Tube Angle | 70.5° | 71.25° | 72° | 72° | 72° |
| Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 408mm |
| Top-Tube Length, Horizontal | 498mm | 506mm | 518mm | 537mm | 548mm |
| Front-Center | 576mm | 580mm | 582mm | 588mm | 596mm |
| Handle-Bar Width | 360mm | 380mm | 400mm | 400mm | 420mm |
| Stand-Over Height | 692mm | 718mm | 735mm | 758mm | 777mm |
| Seat-Tube Length, B-B Center to Top | 390mm | 420mm | 460mm | 490mm | 510mm |
| Fork Rake | 51mm | 51mm | 49mm | 49mm | 49mm |
| B-B Drop | 73mm | 73mm | 73mm | 73mm | 71.5mm |
| Stack | 503mm | 515mm | 528mm | 547mm | 564mm |
| Reach | 365mm | 371mm | 378mm | 378mm | 380mm |
| Trail | 66mm | 62mm | 59mm | 59mm | 59mm |
| Wheelbase | 970mm | 974mm | 976mm | 982mm | 993mm |
| Crank Length | 165mm | 165mm | 170mm | 170mm | 172.5mm |
| Stem Length | 75mm | 75mm | 90mm | 100mm | 100mm |
