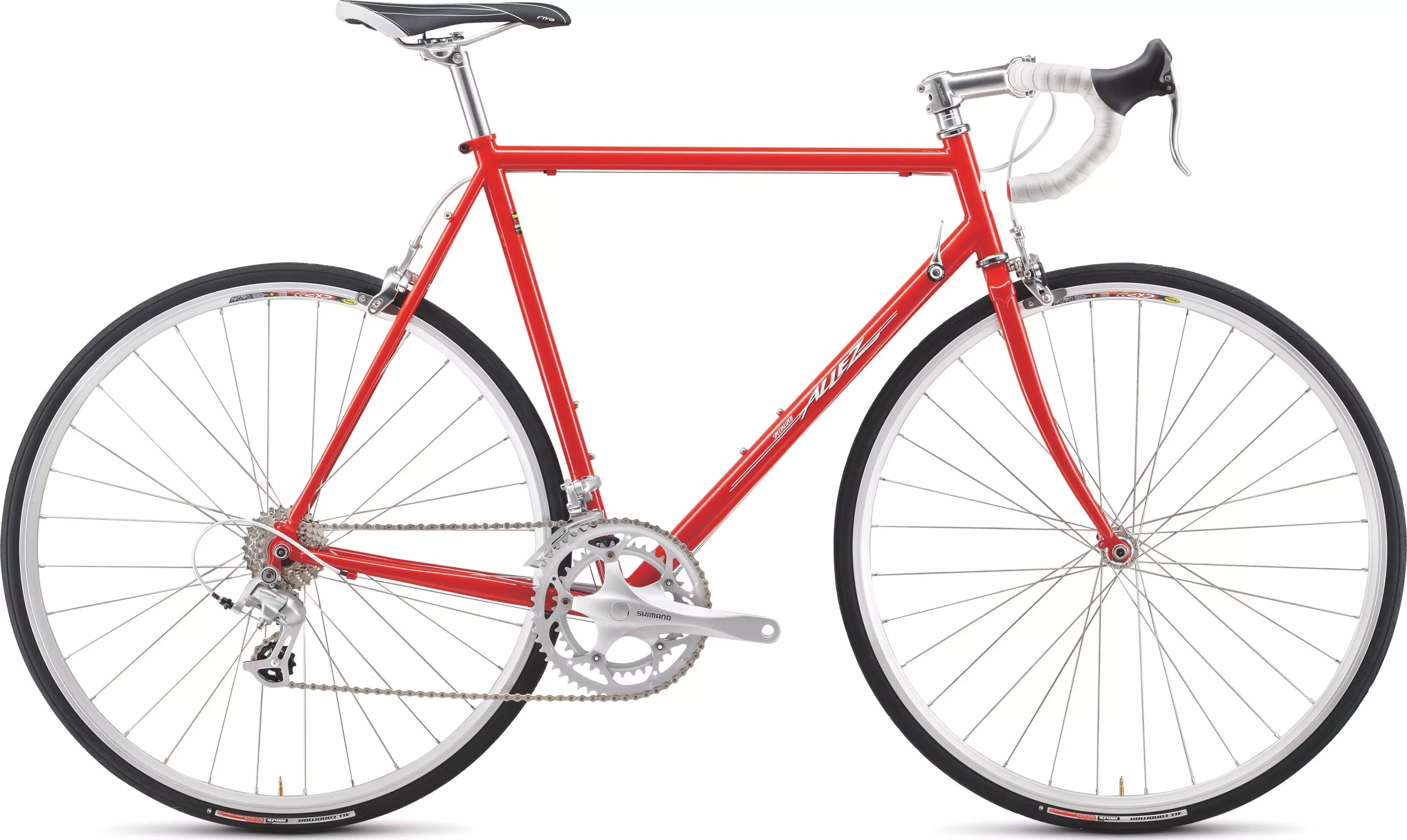

If steel is real, then the Allez Steel is the real deal in terms of value, durability, and classic style.
  • Tig welded Reynolds 520 steel Allez frame with integrated headset for a solid road feel and renowned longevity
  • Allez steel fork delivers durability and accurate handling with a timeless aesthetic
  • Adjustable 4-position oversized alloy stem with 31.8mm bar clamp for strength and versatile positioning
  • Oversized aluminum handlebar is stiff and light for serious performance
  • Old-school style meets modern technology and performance with Shimano down tube shifters and 2300 derailleur

Technical Specifications

DRIVETRAIN
CHAIN KMC Z-51
BOTTOM BRACKET Cr-Mo axle, 68mm x 113mm
CRANKSET Shimano 2300
FRONT DERAILLEUR Shimano 2300
SHIFT LEVERS Shimano SLR400, down tube shifter
CASSETTE Shimano HG-50, 8-speed, 13-26t
CHAINRINGS 52 x 39T
REAR DERAILLEUR Shimano 2300
WHEELS
FRONT HUB Forged aluminum, sealed bearing, QR, 32h
REAR HUB Forged aluminum, double-sealed, cassette, QR, 32h
INNER TUBES Standard presta valve
SPOKES Stainless 14g
FRONT TIRE Specialized All Condition Sport, 700x23c, wire bead, 60TPI, w/ Flak Jacket protection
RIMS Mavic CXP22
REAR TIRE Specialized All Condition Sport, 700x23c, wire bead, 60TPI, w/ Flak Jacket protection
COCKPIT
SADDLE Body Geometry Riva Road, w/ steel rails
TAPE Specialized S-Wrap, w/ gel
SEATPOST Specialized Sport, alloy, two-bolt clamp, 27.2mm
STEM Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS Specialized Elite, 6061 aluminum, 130 drop, 90 reach, 31.8mm
BRAKES
FRONT BRAKE Light dual pivot brake, Teflon pivots, forged alloy, w/ standard angle adjustable pads
BRAKE LEVERS Tektro forged alloy, ergo design
REAR BRAKE Light dual pivot brake, Teflon pivots, forged alloy, w/ standard angle adjustable pads
ACCESSORIES
PEDALS Black cage, body & toe clips w/ strap
FRAMESET
HEADSET Aheadset 1"", cage bearings, integrated, 20mm alloy spacers
SEAT BINDER Integrated w/ frame
FORK Allez Steel
FRAME Reynolds 520 steel, integrated HS, Tig welded

Geometry

Geometry Chart

- Geometry

  47 49 52 54 56 58 61
Crank Length 170mm 170mm 170mm 175mm 175mm 175mm 175mm
Stem Length 75mm 75mm 90mm 100mm 100mm 110mm 110mm
Handle-Bar Width 400mm 400mm 420mm 420mm 440mm 440mm 440mm
Wheelbase 961mm 974mm 975mm 982mm 991mm 1008mm 1018mm
Seat-Tube Length, B-B Center to Top 490mm 510mm 540mm 560mm 580mm 600mm 630mm
Head-Tube Length 77mm 77mm 97mm 122mm 147mm 172mm 197mm
Top-Tube Length, Horizontal 505mm 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 580mm 580mm 580mm 587mm 595mm 610mm 617mm
Head-Tube Angle 71° 71.75° 72.5° 72.5° 73° 73° 73.5°
Stand-Over Height 767mm 746mm 767mm 791mm 817mm 841mm 866mm
Fork Rake 45mm 45mm 45mm 45mm 43mm 43mm 43mm
Trail 60mm 65mm 60mm 60mm 59mm 59mm 56mm
Chain-Stay Length 392mm 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 76° 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 300mm 300mm 350mm 350mm 350mm 350mm 350mm
