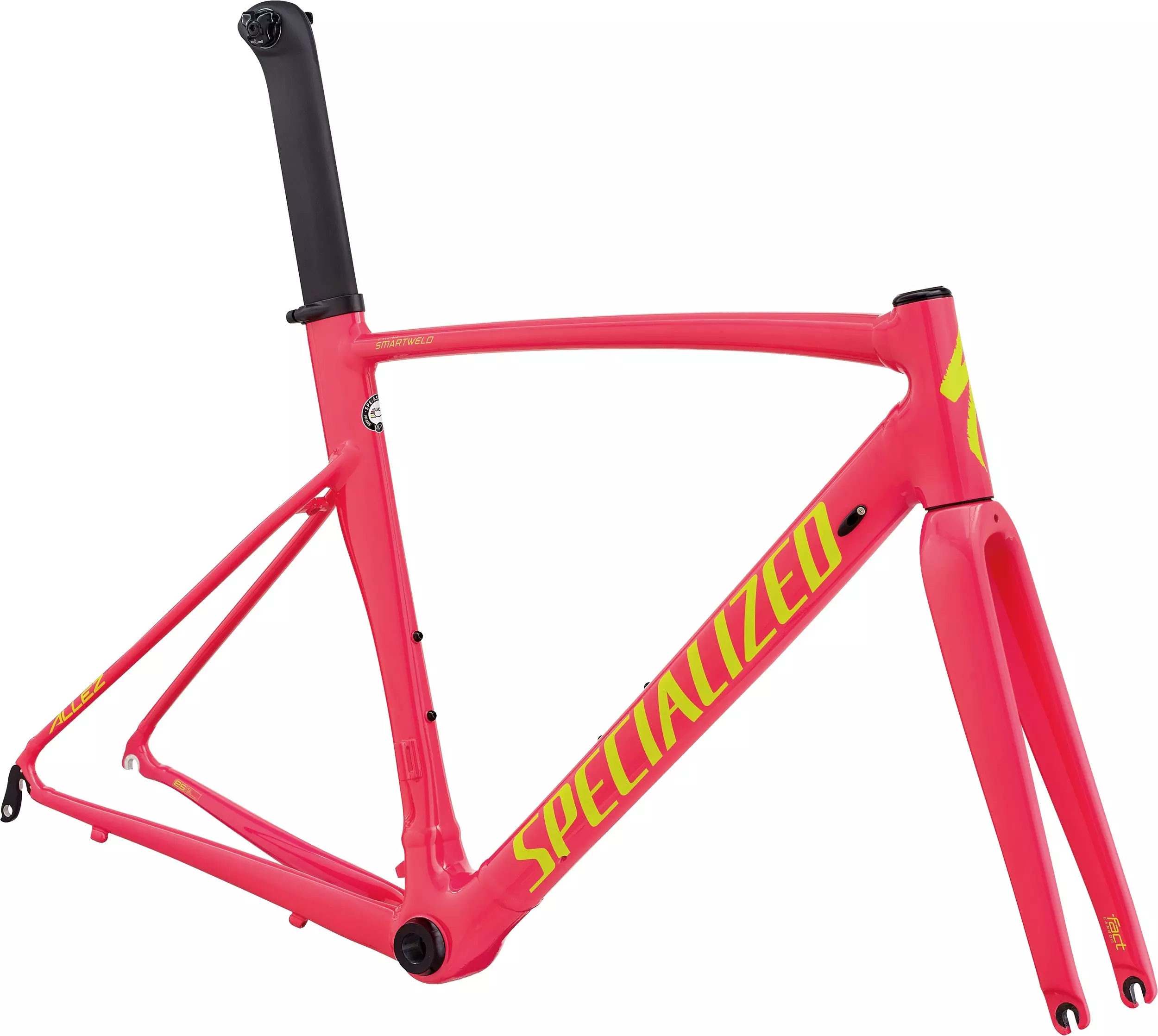

You're practically dripping with style, so why shouldn't your bike? Good question, but we have the answer—the Allez Sprint Limited Edition frameset.
At the heart of the Allez Sprint is our D'Aluisio Smartweld Sprint Technology, which strategically places more welding material where it's needed, resulting in an aluminum bike that's more compliant and considerably stiffer. How stiff, exactly? It's the stiffest alloy bike we've ever tested. Drawing inspiration from the Rider-First Engineered™ Tarmac, this frame also has a unique down tube, bottom bracket shell, and head tube, plus fork sizes that correspond to frame size. This ensures uniform performance across the entire size run.
To make sure that every single watt you produce gets transferred to the road, it has short chainstays that create an extremely stiff and rigid rear triangle. But it goes beyond just pure rigidity, as the hydroformed tube shapes have also been aerodynamically optimized to slice through the wind, while also having been designed with built-in compliance.
With all of these features, the Allez Sprint Limited Edition frameset redefines the potential of an alloy bike—so much so, that you'll forget you're not riding carbon.
- E5 Premium Aluminum frame with Allez D'Aluisio Smartweld Sprint Technology refocuses weld locations, allowing for more material to be placed where it's needed for increased stiffness and compliance where you really need it.
- Our top-tier S-Works FACT carbon fiber fork provides incredible stiffness and front end steering response, while also efficiently absorbing road chatter.
- The Venge FACT carbon fiber seatpost acts as a stiff, aerodynamic perch for your saddle.
Manual Downloads
Technical Specifications
FRAMESET
| FRAME | Specialized E5 Premium Aluminum w/ D'Aluisio Smartweld Sprint Technology, hydroformed aluminum tubing, tapered head tube, OSBB |
| FORK | S-Works FACT full carbon, size-specific taper |
| SEAT BINDER | Allez Sprint Aero |
DRIVETRAIN
| BOTTOM BRACKET | Praxis 6806 bearings |
COCKPIT
| SEATPOST | Specialized Venge Aero seatpost, FACT carbon |
* Specifications are subject to change without notice
Geometry
Allez - Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seatpost Length | 330mm | 330mm | 330mm | 330mm | 330mm | 330mm |
| Reach | 375mm | 380mm | 385mm | 395mm | 400mm | 405mm |
| Top Tube Length, Horizontal | 519mm | 527mm | 538mm | 554mm | 567mm | 578mm |
| Stack | 502mm | 514mm | 533mm | 554mm | 583mm | 604mm |
| Wheelbase | 959mm | 961mm | 972mm | 984mm | 997mm | 1005mm |
| Chainstay Length | 405mm | 405mm | 405mm | 405mm | 405mm | 407mm |
| Front Center | 564mm | 566mm | 577mm | 589mm | 602mm | 608mm |
| BB Drop | 69mm | 69mm | 69mm | 69mm | 69mm | 69mm |
| BB Height | 272.5mm | 272.5mm | 272.5mm | 272.5mm | 272.5mm | 272.5mm |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° | 74° |
| Head Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Seat Tube Length | 460mm | 480mm | 500mm | 520mm | 540mm | 570mm |
| Head Tube Length | 100mm | 110mm | 130mm | 150mm | 180mm | 200mm |
| Bike Standover Height | 732.3mm | 745.8mm | 765.5mm | 784.3mm | 808.3mm | 833.8mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm | 44mm |
| Fork Length, Full | 368mm | 368mm | 368mm | 368mm | 368mm | 368mm |
| Trail | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
