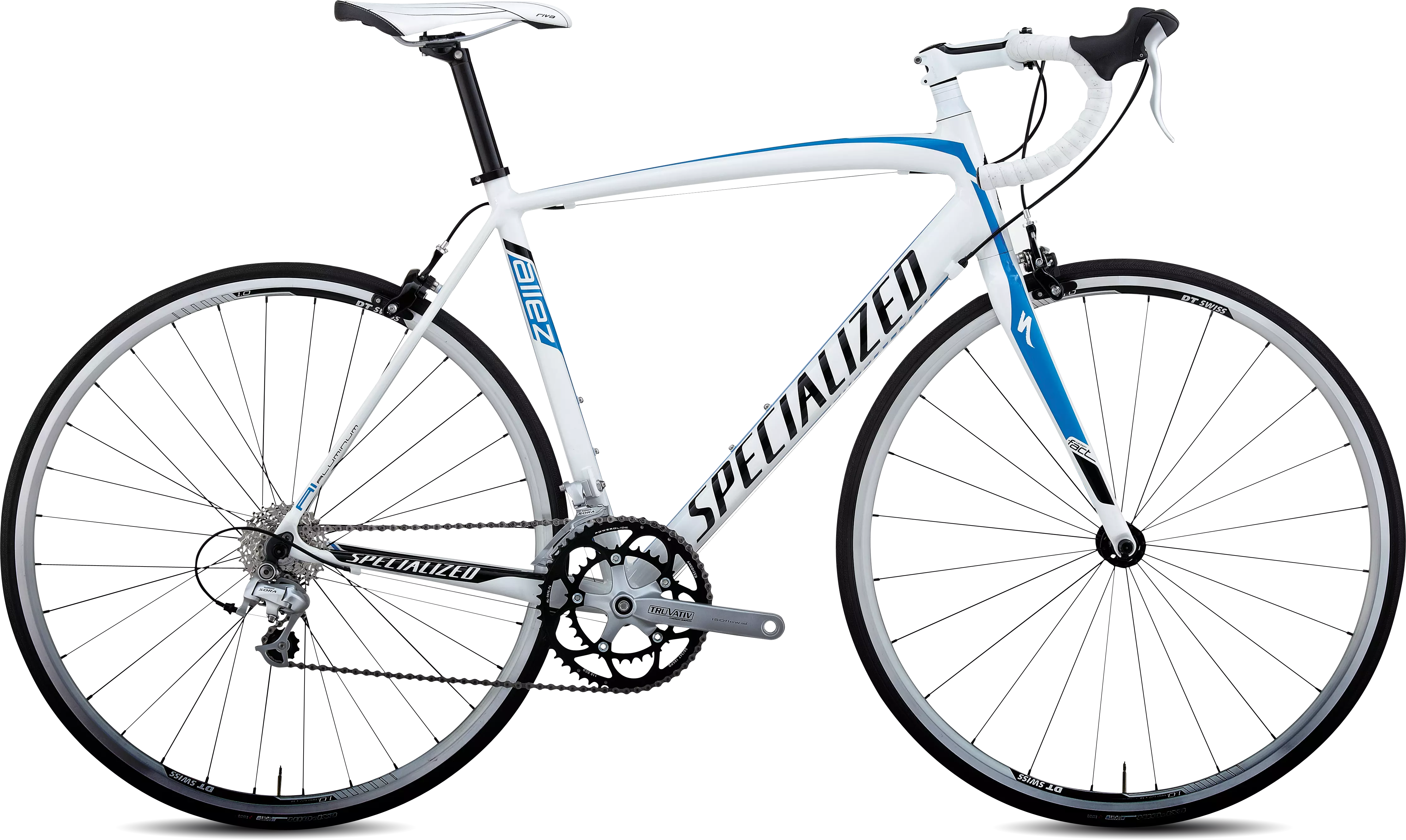

2012 Allez Sport Compact
5
1 Reviews
Stiff, light, race-inspired Allez Sport offers great acceleration and handling—perfect…
Color:
White/Blue
What's my size?
Select a Size
Unavailable
This item is not available for Find Nearby
Product Details
Stiff, light, race-inspired Allez Sport offers great acceleration and handling—perfect for aspiring racers, or as a winter training bike for more accomplished veterans. 9-speed Shimano gearing and lighter wheels improve efficiency over any terrain.
Race-inspired, smooth-welded, fully manipulated A1 Premium Aluminum frame with integrated headset is stiff, light, and fast
Lightweight FACT carbon fork for a smooth ride and precise steering through tight turns
Adjustable four-position oversized alloy stem with 31.8mm bar clamp for strength and versatile positioning
New Tarmac Comp oversized aluminum bar is stiff and light for serious performance
Never miss a critical shift with Shimano Sora STI shifters
DT-Axis 1.0 wheelset is significantly lighter than comparable-level wheelsets, these tough hoops roll smooth and fast
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, fully manipulated tubing, smooth weld, compact race design, integrated headset
FORK
Specialized FACT carbon legs, aluminum crown and steerer
HEADSET
1-1/8"" sealed Cr-Mo cartridge bearings integrated w/ headset, 20mm alloy cone spacer, w/ 20mm of spacers
SEAT BINDER
Alloy, 31.8mm
WHEELS
FRONT WHEEL
DT Axis 1.0
REAR WHEEL
DT Axis 1.0
FRONT TIRE
Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x23c
REAR TIRE
Specialized Espoir Sport w/ double BlackBelt, 60 TPI, wire bead, 700x23c
INNER TUBES
Lightweight, presta
DRIVETRAIN
SHIFT LEVERS
Shimano Sora STI, 9-speed
FRONT DERAILLEUR
Shimano Sora
REAR DERAILLEUR
Shimano Sora
CASSETTE
Shimano HG-50, 9-speed, 12-27t
CRANKSET
Truvativ Isoflow
CHAINRINGS
50/34
BOTTOM BRACKET
Square-taper BB, Cr-Mo axle
CHAIN
KMC X9 nickel plate, reusable Missing Link
COCKPIT
HANDLEBARS
New Specialized Tarmac Comp, alloy
STEM
Specialized EliteSet, 3D forged alloy, 12-degree, 4-position adjustable, 4-bolt, 31.8mm clamp
TAPE
Specialized S-Wrap, w/ gel
SADDLE
Body Geometry Riva Road
SEATPOST
New Specialized Sport, alloy, 27.2mm
BRAKES
FRONT BRAKE
Tektro dual-pivot, cartridge pads
REAR BRAKE
Tektro dual-pivot, cartridge pads
ACCESSORIES
PEDALS
Nylon flat test ride, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 100mm | 120mm | 145mm | 170mm | 205mm | 230mm |
| Seat-Post Length | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Center | 576mm | 576mm | 583mm | 591mm | 605mm | 613mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 737mm | 777mm | 798mm | 816mm | 836mm | 863mm |
| Seat-Tube Length, B-B Center to Top | 460mm | 490mm | 510mm | 530mm | 550mm | 580mm |
| Fork Rake | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
| B-B Drop | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Stack | 505mm | 527mm | 548mm | 575mm | 607mm | 632mm |
| Reach | 385mm | 385mm | 385mm | 392mm | 397mm | 402mm |
| Trail | 62mm | 57mm | 57mm | 56mm | 56mm | 53mm |
| Wheelbase | 970mm | 970mm | 978mm | 986mm | 1003mm | 1013mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm |
