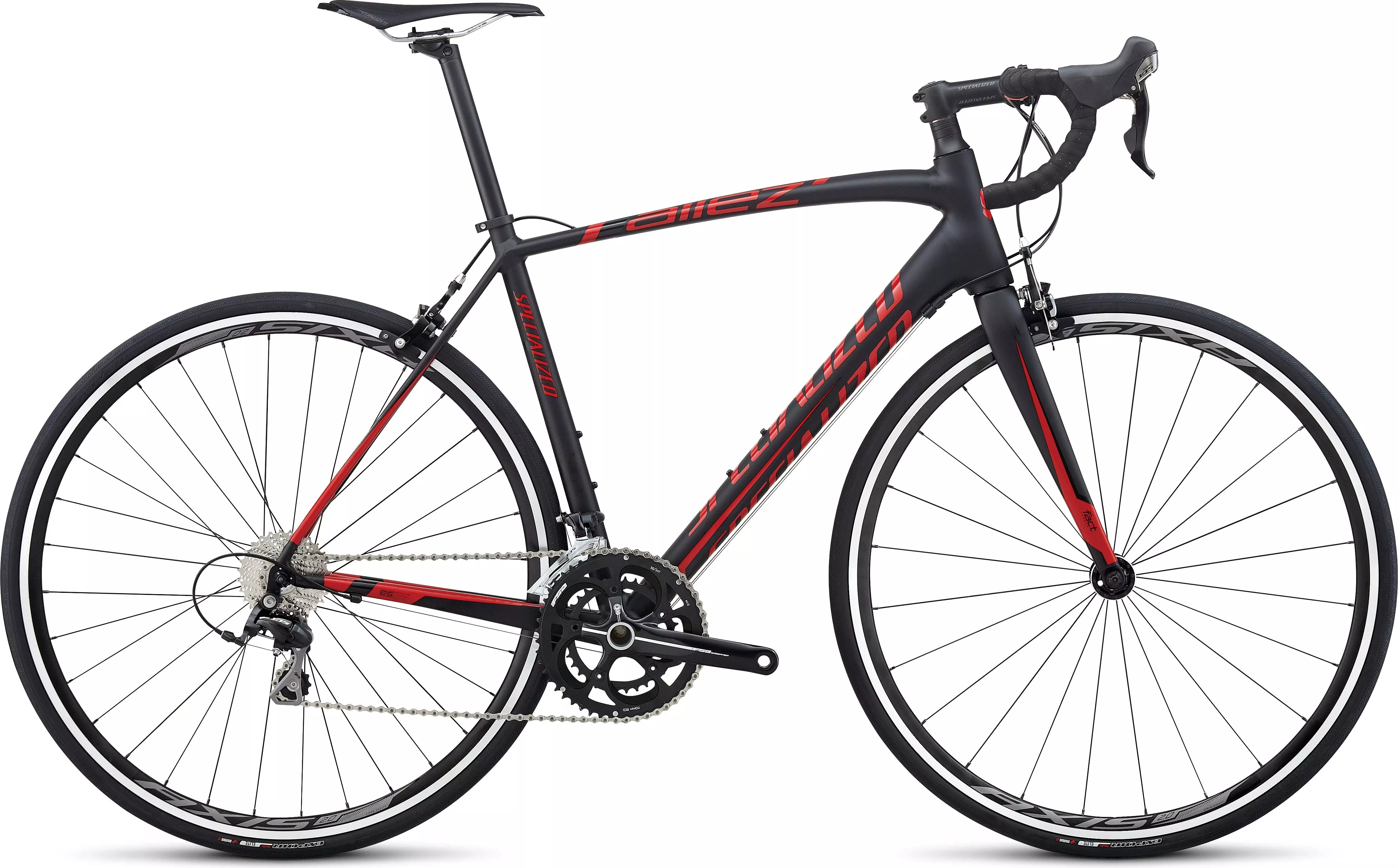

Allez Race
FRAME
Specialized E5 Premium Aluminum w/ Smartweld technology, hydroformed aluminum tubing, 1-3/8"" lower bearing, OSBB
FORK
Specialized Tarmac, FACT carbon full monocoque, carbon steerer/crown for 1-3/8"" lower bearing
HEADSET
1-1/8"" upper and 1-3/8"" lower Cr-Mo cartridge bearings integrated w/ headset, 8mm cone spacer, w/ 20mm of carbon spacers
SEAT BINDER
Alloy, 31.8mm
FRONT WHEEL
AXIS 2.0
REAR WHEEL
AXIS 2.0
FRONT TIRE
Specialized Espoir Elite, 60TPI, aramid bead, double BlackBelt protection, 700x25c
REAR TIRE
Specialized Espoir Elite, 60TPI, aramid bead, double BlackBelt protection, 700x25c
INNER TUBES
Standard presta valve
SHIFT LEVERS
Shimano 105 STI
FRONT DERAILLEUR
Shimano 105
REAR DERAILLEUR
Shimano 105
CASSETTE
Shimano Tiagra, 10-speed, 12-28
CRANKSET
FSA Gossamer, 10-speed compact, alloy rings
CHAINRINGS
50/34
BOTTOM BRACKET
FSA, BB30
CHAIN
KMC X10
HANDLEBARS
Specialized Comp, shallow bend
STEM
Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt, 31.8mm clamp
TAPE
Specialized S-Wrap, w/ bar shapers
SADDLE
Body Geometry Toupe Comp Gel, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized Sport, alloy, 2-bolt, 27.2mm
FRONT BRAKE
Shimano R561
REAR BRAKE
Shimano R561
BRAKE LEVERS
Shimano 105
PEDALS
Nylon flat test ride, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
490.0 | 520.0 | 540.0 | 560.0 | 580.0 | 610.0 | |
---|---|---|---|---|---|---|
Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
Head-Tube Length | 120mm | 120mm | 145mm | 170mm | 205mm | 230mm |
Seat-Post Length | 300mm | 300mm | 350mm | 350mm | 350mm | 350mm |
Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
Front-Center | 576mm | 576mm | 583mm | 591mm | 605mm | 613mm |
Handle-Bar Width | 420mm | 420mm | 420mm | 420mm | 440mm | 440mm |
Stand-Over Height | 741mm | 777mm | 798mm | 816mm | 836mm | 854mm |
Seat-Tube Length, B-B Center to Top | 460mm | 480mm | 500mm | 520mm | 540mm | 580mm |
Fork Rake | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
B-B Drop | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
Stack | 523mm | 523mm | 547mm | 574mm | 606mm | 631mm |
Reach | 380mm | 385mm | 387mm | 395mm | 402mm | 408mm |
Trail | 62mm | 57mm | 57mm | 56mm | 56mm | 53mm |
Wheelbase | 970mm | 970mm | 978mm | 986mm | 1003mm | 1013mm |
Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Stem Length | 90mm | 90mm | 100mm | 100mm | 110mm | 110mm |
