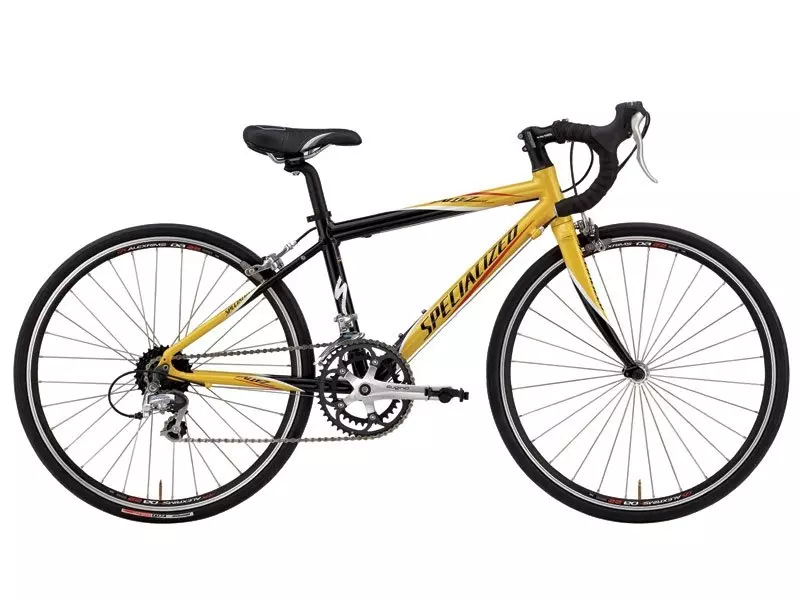

Allez Junior Double 700c
Part No.

Allez Junior Double 700c

Part No.
load-spinner
Allez Junior Double 700c
Overview
Technical Specifications
Geometry
Reviews
COMPETITIVE ROAD One name says it all. For nearly three decades, the Allez has been pushing riders to go faster. Versatile road bikes made from advanced materials made for those driven by competition.
  • Specialized A1 Premium Aluminum frame, fully manipulated tubing, junior-specific compact design, integrated headset, hourglass speedstays
  • Specialized Comp bars, 6061 alloy, short-reach drop, 26.0mm
  • Mondo Pro tires, 24x1", wire bead, 120TPI
  • Specialized Junior saddle, full padding
  • Specialized FACT carbon fork, carbon fiber legs, Cr-Mo steerer
  • Specialized A1 Premium Aluminum, fully manipulated tubing, junior-specific compact design, integrated headset, hourglass speedstays
  • Shimano Sora, short cage
  • Shimano Sora, 7-speed STI, flight deck compatible
  • 46x34T
  • Specialized Junior, full padding

Technical Specifications

DRIVETRAIN
CHAIN KMC Z-51, 7/8-speed
BOTTOM BRACKET Sport cartridge, square taper, 68 x 110mm
CRANKSET Sugino Pro, five arm, polished arms
FRONT DERAILLEUR Shimano Sora, 31.8mm clamp, bottom pull
SHIFT LEVERS Shimano Sora, 7-speed STI, flight deck compatible
CHAINRINGS 46x34T
REAR DERAILLEUR Shimano Sora, short cage
WHEELS
FRONT HUB Specialized forged alloy, 28 hole, double sealed bearings, QR
REAR HUB Specialized forged alloy, 32 hole, double sealed bearings, QR
SPOKES Stainless 14g
FRONT TIRE Mondo Sport, 24x1"", wire bead, 60TPI
RIMS Alex DA-22, 24"" double wall rim, machined sidewalls
REAR TIRE Mondo Sport, 24x1"", wire bead, 60TPI
COCKPIT
SADDLE Specialized Junior, full padding
STEM Specialized 3D forged alloy, 26.0mm clamp, 7 degree
HANDLEBARS Specialized Comp, 6061 alloy, short-reach drop, 26.0mm
BRAKES
FRONT BRAKE Dual pivot, forged alloy w/ cartridge multi-condition pads
BRAKE LEVERS Shimano Sora, 7-speed STI, flight deck compatible w/ brake lever extensions
REAR BRAKE Dual pivot, forged alloy w/ cartridge multi-condition pads
ACCESSORIES
PEDALS Composite body, alloy cage w/ toe clips and straps
FRAMESET
HEADSET Specialized Mindset, 1 1/8"" integrated threadless, sealed bearings, alloy 20mm cone w/ one 10mm and two 5mm alloy spacers
SEAT BINDER Specialized CNC, alloy, 31.8mm clamp
FORK Specialized FACT carbon fork, carbon fiber legs, aluminum steerer
FRAME Specialized A1 Premium Aluminum, fully manipulated tubing, junior-specific compact design, integrated headset, hourglass speedstays

Geometry

Geometry Chart

- Geometry

44
  44
Handle-Bar Width 300mm
Reach 496mm
Stack 390mm
Wheelbase 380mm
Seat-Tube Length, B-B Center to Top 405mm
Head-Tube Length 165mm
Ground-Top 73mm
Top-Tube Length, Horizontal 76mm
Front-Center 105mm
Head-Tube Angle 574°
Stand-Over Height 75mm
Fork Rake 967mm
Trail 672mm
Chain-Stay Length 51mm
Seat-Tube Angle 66°
B-B Drop 70.5mm
