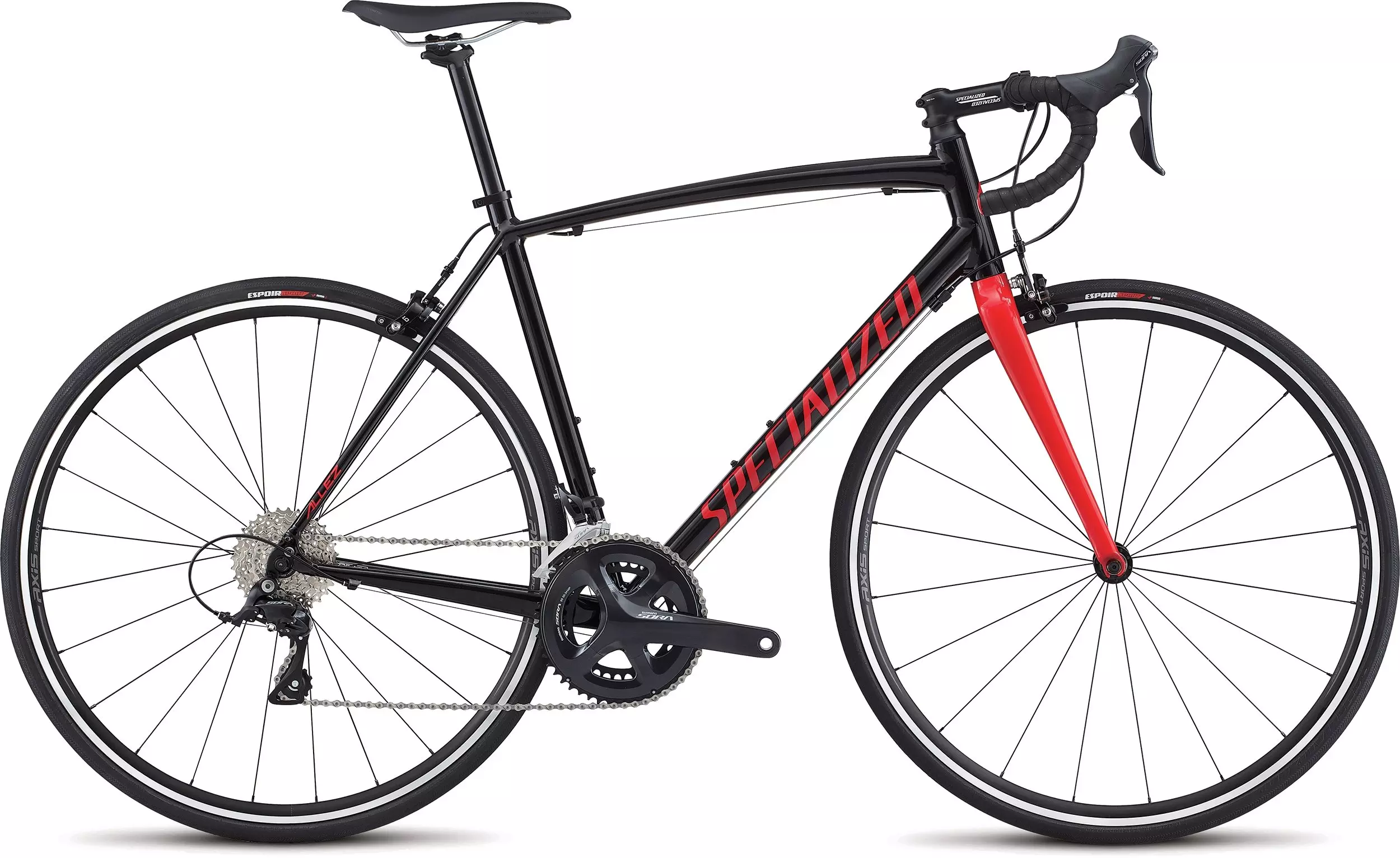

The Allez E5 Sport is versatile and value-packed. That's because its stiff alloy construction, carbon fork, and Shimano Sora shifting make sure that it's ready to take on all of your weekend rides with complete confidence. Go out and get after it. It's constructed from our lightweight and ultra-stiff E5 Premium Aluminum to ensure that you get those most out of every watt that your legs can produce. More so, this construction makes for a bike that's equally capable for the road ahead, so you'll find it performing exceptionally on climbs, descents, and all-out sprints. Even better, these characteristics are all amplified by the Elite's exquisite & confident geometry and FACT carbon fiber fork. For the build, we went with a no-nonsense approach, opting for Shimano Sora shifting, durable Axis sport alloy wheels, and brilliant Espoir Sport tires.

E5 Premium Aluminum frame features fully manipulated tubing with smooth welds that increase stiffness and efficiency, while looking just as good as it performs.
A FACT carbon fiber fork provides incredible stiffness and front end steering response, while also efficiently absorbing road chatter.
Shimano Sora 9-speed shifting is nothing short of legendary. It's built to last over the long haul, and it's well-equipped to deliver precise shifts across a wide range of gears.

Manual Downloads

Specialized Bicycle Owner's Manual (All Languages)

Trainer Usage Addendum to the Bicycle Owner's Manual

DODATEK - POUŽITÍ TRENAŽÉRU

Specialized Bicycle Owner's Manual Addendum: Riding With Kids

2017 Rider/Bike Weight Limits and Terrain Conditions

Technical Specifications

DRIVETRAIN

BOTTOM BRACKET	Shimano
CHAIN	KMC X9, 9-speed w/reusable MissingLink
CRANKSET	Shimano Sora Compact
SHIFT LEVERS	Shimano Sora STI
FRONT DERAILLEUR	Shimano Sora, clamp-on
CASSETTE	Sunrace, 9-speed, 11-32t
CHAINRINGS	50/34T
REAR DERAILLEUR	Shimano Sora, 9-speed

WHEELS

REAR WHEEL	Axis Sport
INNER TUBES	700x20/28mm, 40mm Presta valve
FRONT TIRE	Espoir Sport, 700x25mm, 60TPI, wire bead, double BlackBelt protection
REAR TIRE	Espoir Sport, 700x25mm, 60TPI, wire bead, double BlackBelt protection
FRONT WHEEL	Axis Sport

COCKPIT

SADDLE	Body Geometry Toupé Sport, steel rails, 143mm
TAPE	Specialized S-Wrap
SEATPOST	Alloy, 12.5mm offset, 2-bolt clamp, 27.2mm
HANDLEBARS	Specialized Shallow Drop, alloy, 125mm drop, 70mm short-reach
STEM	Specialized, 3D forged alloy, 4-bolt, 7-degree rise

BRAKES

FRONT BRAKE	AXIS 1.0
REAR BRAKE	AXIS 1.0

FRAMESET

SEAT BINDER	Alloy, 31.8mm
FORK	FACT carbon fiber
FRAME	Specialized E5 Premium Aluminum, fully-manipulated tubing w/smooth welds, 1-1/8"" lower bearing

* Specifications are subject to change without notice

Geometry

Allez - Geometry

49 52 54 56 58 61

	49	52	54	56	58	61
Crank Length	170mm	170mm	170mm	175mm	175mm	175mm
Stem Length	80mm	90mm	100mm	100mm	110mm	110mm
Seatpost Length	300mm	300mm	350mm	350mm	350mm	350mm
Saddle Width	143mm	143mm	143mm	143mm	143mm	143mm
Handlebar Width	400mm	420mm	420mm	420mm	440mm	440mm
Reach	387mm	387mm	387mm	392mm	397mm	401mm
Stack	505mm	527mm	548mm	574mm	606mm	632mm
Wheelbase	972mm	974mm	982mm	990mm	1008mm	1014mm
Bike Stand-Over Height	736mm	759mm	783mm	805mm	834mm	860mm
Head-Tube Length	100mm	120mm	145mm	170mm	205mm	230mm
Front-Center	578mm	578mm	585mm	593mm	607mm	613mm
Fork Rake/Offset	45mm	45mm	45mm	45mm	45mm	45mm
Head-Tube Angle	72.25°	73°	73°	73.5°	73.5°	74°
Trail	62mm	57mm	57mm	54mm	54mm	51mm
Chain-Stay Length	405mm	407mm	407mm	407mm	410mm	410mm
B-B Height	270mm	270mm	272.5mm	272.5mm	274mm	274mm
Seat-Tube Angle	75.5°	74°	73.5°	73.25°	73°	72.5°
Fork Length (full)	369mm	369mm	369mm	369mm	369mm	369mm
B-B Drop	72mm	72mm	69mm	69mm	68mm	68mm
Seat-Tube Length	460mm	490mm	510mm	530mm	550mm	580mm
Top-Tube Length (horizontal)	518mm	538mm	549mm	565mm	582mm	600mm
