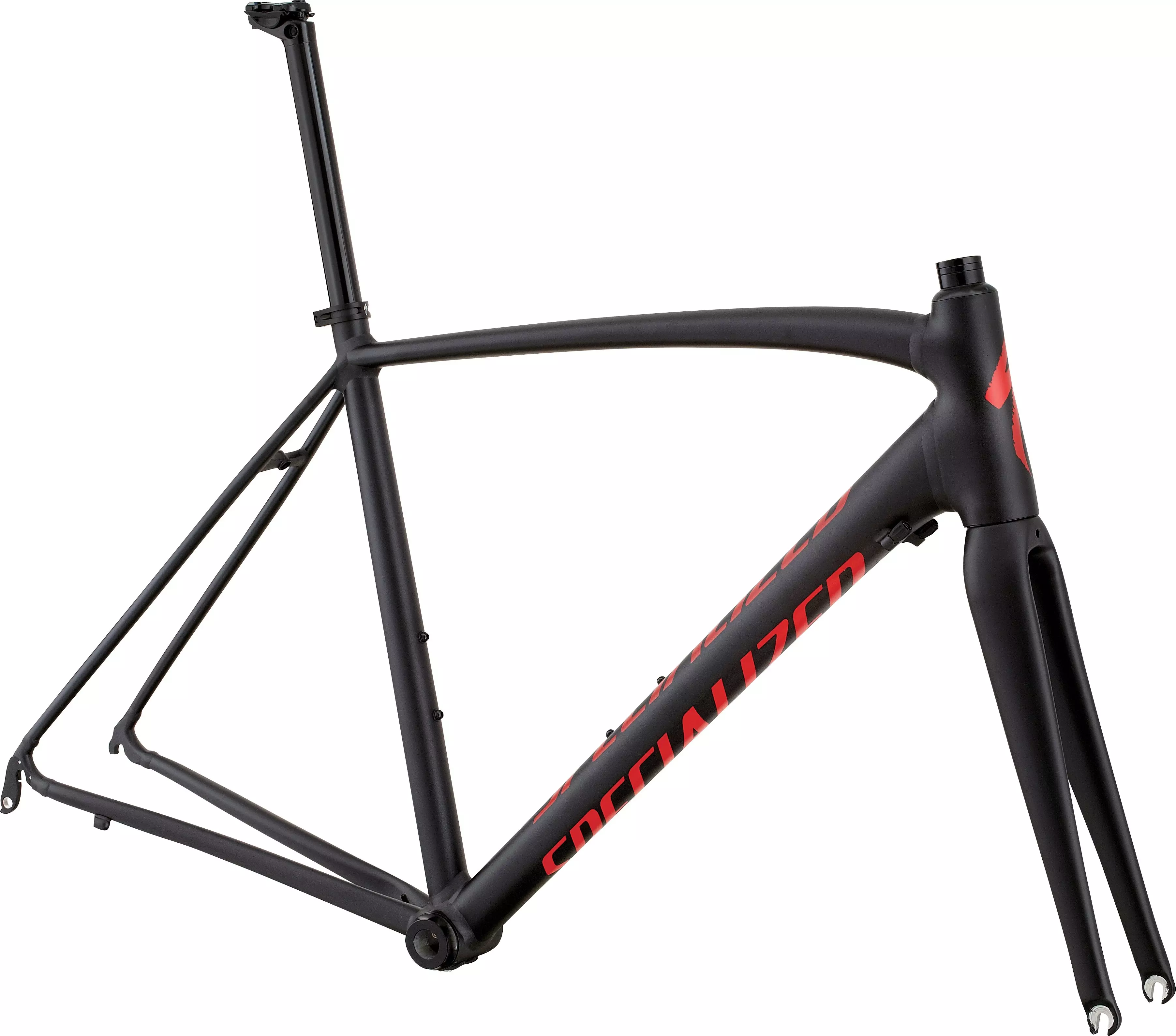

Allez DSW SL Frameset
$900.00
Part No.

Allez DSW SL Frameset

$900.00
Part No.  106751
load-spinner
Allez DSW SL Frameset
Overview
Technical Specifications
Geometry
Reviews
The Allez DSW SL Frameset features D'Aluisio Smartweld Technology that increases stiffness and compliance has been coupled with the Specialized FACT full carbon fork to provide expert steering response and power transfer. The only thing missing is the custom build you decide on.
  • Specialized FACT carbon fiber fork with alloy crown and steerer provides all the stiffness and ride benefits of carbon in a more accessible package.
  • E5 Premium Aluminum frame with D'Aluisio Smartweld Technology refocuses weld locations, allowing for more material to be placed where it's needed for increased stiffness and compliance.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.6mm
HEADSET 1-1/8"" upper, 1-3/8” lower, steel bearings, 20mm alloy cone spacer, w/ 20mm spacers
FORK Specialized FACT carbon, full monocoque, 1-3/8"" lower bearing
FRAME Specialized E5 Premium Aluminum w/ D'Aluisio Smartweld SL Technology, hydroformed aluminum tubing, tapered head tube, OSBB
DRIVETRAIN
BOTTOM BRACKET Hope, BB30
COCKPIT
SEATPOST Specialized Sport, alloy, 2-bolt, 27.2mm

Geometry

Geometry Chart

Allez - Geometry

  49 52 54 56 58 61
Stem Length 80mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Seatpost Length 300mm 300mm 350mm 350mm 350mm 350mm
Handlebar Width 400mm 420mm 420mm 420mm 440mm 440mm
Reach 380mm 387mm 387mm 395mm 402mm 408mm
Stack 523mm 526mm 547mm 574mm 606mm 631mm
Wheelbase 971mm 972mm 979mm 988mm 1008mm 1019mm
Bike Stand-Over Height 1083.5mm 1119.5mm 1140.5mm 1158.5mm 1178.5mm 1196.5mm
Head-Tube Length 120mm 120mm 145mm 170mm 205mm 230mm
Front-Center 576mm 577mm 584mm 593mm 610mm 618mm
Fork Rake/Offset 45mm 45mm 45mm 43mm 43mm 43mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Trail 62mm 58mm 58mm 57mm 57mm 53mm
B-B Height 271mm 271mm 273.5mm 273.5mm 275mm 275mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Fork Length (full) 368mm 368mm 368mm 368mm 368mm 368mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 72mm 72mm 69mm 69mm 68mm 68mm
Seat-Tube Length 460mm 480mm 500mm 520mm 540mm 570mm
Top-Tube Length (horizontal) 515mm 538mm 549mm 568mm 587mm 607mm
