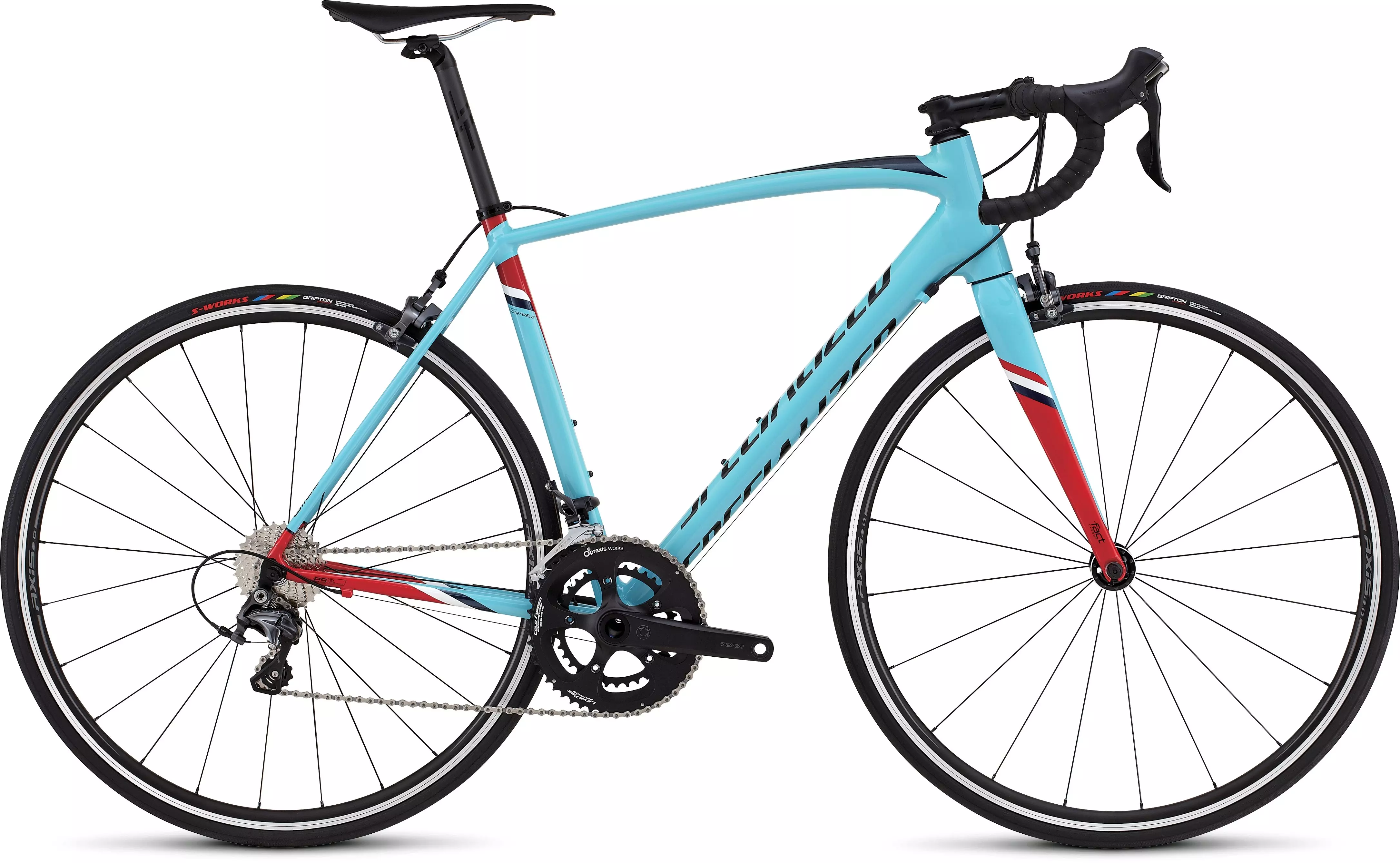

Allez DSW SL Expert
$2,000.00
Part No.

Allez DSW SL Expert

$2,000.00
Part No.  106563
load-spinner
Allez DSW SL Expert
Overview
Technical Specifications
Geometry
Reviews
The Allez DSW SL Expert is a race-ready road bike itching to get to the finish line. By coupling its race-proven and rock-solid 11-speed Shimano Ultegra drivetrain with a revolutionary E5 Premium Aluminum frame featuring D'Aluisio Smartweld Technology, it's a bike that's just begging to be put through the paces.
  • The FACT full carbon fiber fork provides incredible front end stiffness and steering input for rapid accelerations and speedy descents.
  • E5 Premium Aluminum frame with D'Aluisio Smartweld Technology refocuses weld locations, allowing for more material to be placed where it's needed for increased stiffness and compliance.
  • The TURN Zayante by Praxis Works crankset offers efficient and reliable power transfer for explosive, out-of-the-saddle efforts.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.6mm
HEADSET 1-1/8"" upper, 1-3/8” lower, steel bearings, 20mm alloy cone spacer, w/ 20mm spacers
FORK Specialized FACT carbon, full monocoque, 1-3/8"" lower bearing
FRAME Specialized E5 Premium Aluminum w/ D'Aluisio Smartweld SL Technology, hydroformed aluminum tubing, tapered head tube, OSBB
DRIVETRAIN
CHAIN KMC X11, 11-speed, w/ reusable MissingLink
CRANKSET TURN Zayante by Praxis Works, BB30, 50/34T
CASSETTE Shimano 105, 11-speed, 11-28t
SHIFT LEVERS Shimano Ultegra, 11-speed
FRONT DERAILLEUR Shimano Ultegra, 11-speed
REAR DERAILLEUR Shimano Ultegra, 11-speed
COCKPIT
SADDLE Body Geometry Toupé Comp Gel, hollow Cr-Mo rails, 143mm
TAPE Specialized S-Wrap
SEATPOST Specialized Comp Carbon, single bolt
HANDLEBARS Specialized, shallow drop, alloy, 125mm drop, 70mm short-reach
STEM Specialized, 3D forged alloy, 4-bolt, 6-degree rise
BRAKES
FRONT BRAKE Shimano Ultegra
REAR BRAKE Shimano Ultegra
ACCESSORIES
PEDALS Nylon, loose ball bearings, w/ reflectors
WHEELS
REAR WHEEL AXIS 2.0
INNER TUBES Standard, Presta valve
FRONT TIRE S-Works Turbo, 120TPI, folding bead, BlackBelt protection, 700x24mm
REAR TIRE S-Works Turbo, 120TPI, folding bead, BlackBelt protection, 700x24mm
FRONT WHEEL AXIS 2.0

Geometry

Geometry Chart

Allez - Geometry

  49 52 54 56 58 61
Stem Length 80mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Seatpost Length 300mm 300mm 350mm 350mm 350mm 350mm
Handlebar Width 400mm 420mm 420mm 420mm 440mm 440mm
Reach 380mm 387mm 387mm 395mm 402mm 408mm
Stack 523mm 526mm 547mm 574mm 606mm 631mm
Wheelbase 971mm 972mm 979mm 988mm 1008mm 1019mm
Bike Stand-Over Height 1083.5mm 1119.5mm 1140.5mm 1158.5mm 1178.5mm 1196.5mm
Head-Tube Length 120mm 120mm 145mm 170mm 205mm 230mm
Front-Center 576mm 577mm 584mm 593mm 610mm 618mm
Fork Rake/Offset 45mm 45mm 45mm 43mm 43mm 43mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Trail 62mm 58mm 58mm 57mm 57mm 53mm
B-B Height 271mm 271mm 273.5mm 273.5mm 275mm 275mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Fork Length (full) 368mm 368mm 368mm 368mm 368mm 368mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 72mm 72mm 69mm 69mm 68mm 68mm
Seat-Tube Length 460mm 480mm 500mm 520mm 540mm 570mm
Top-Tube Length (horizontal) 515mm 538mm 549mm 568mm 587mm 607mm
