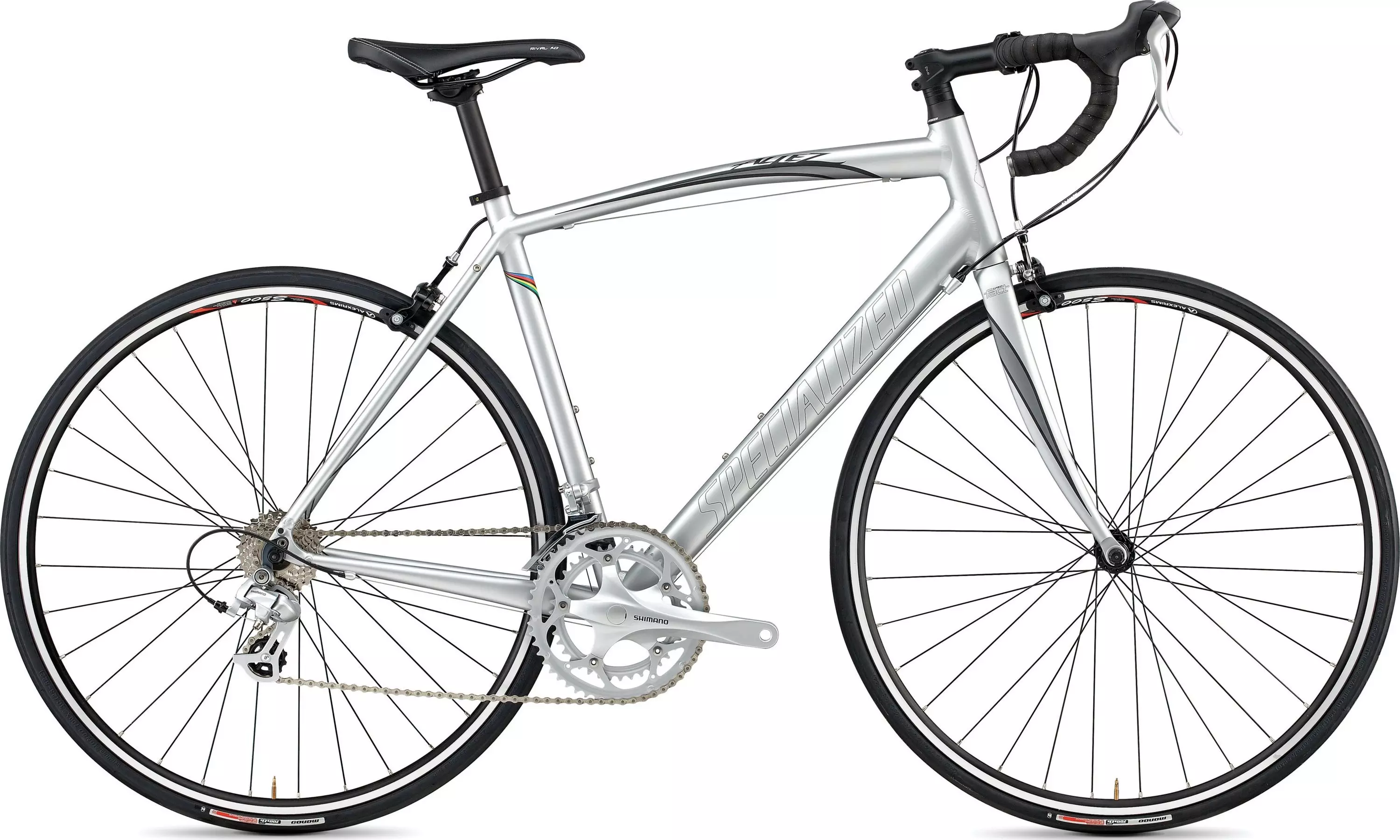

Borrowing technology from the World Championship winning Tarmac, the Allez® utilizes a bowed top tube, oversized alloy construction and performance components to deliver a fast and efficient ride that looks and feels like a top-end racing bike, without the hefty pricetag.
  • Ergonomic short drop aluminum handlebars provide a comfortable riding position
  • Shim-adjustable stem with 31.8mm bar clamp for strength and versatile positioning
  • Smooth, precise and fast 8-speed Shimano shifters are updated for good looks and ergonomics
  • Ultralight FACT carbon/alloy fork provides laser-accurate steering and bump-absorbing comfort
  • Smooth-welded A1 Premium Aluminum frame provides superior power transfer and vertical compliance

Technical Specifications

Technical Specifications

DRIVETRAIN
CHAIN KMC Z-51
BOTTOM BRACKET Cr-Mo axle, 68mm x 113mm
CRANKSET Shimano 2300
FRONT DERAILLEUR Shimano 2300
SHIFT LEVERS Shimano 2300 STI, flight deck compatible
CASSETTE Shimano HG-50, 8-speed, 12-25t
CHAINRINGS 52 x 39T
REAR DERAILLEUR Shimano 2300
WHEELS
FRONT HUB Forged aluminum, sealed, QR, 32h
REAR HUB Forged aluminum, double-sealed, cassette, QR, 32h
INNER TUBES Standard presta valve
SPOKES Stainless 14g
FRONT TIRE Specialized Mondo Sport, 700x23c, wire bead, 60TPI, w/ Flak Jacket protection
RIMS Alex S500, aluminum, sleeve joint, CNC machined sidewalls
REAR TIRE Specialized Mondo Sport, 700x23c, wire bead, 60TPI, w/ Flak Jacket protection
COCKPIT
SADDLE Body Geometry Rival road, w/ steel rails
TAPE Specialized S-Wrap, cork ribbon w/ gel
SEATPOST Alloy, two-bolt clamp, 27.2mm
STEM Alloy, CP bolt, 31.8mm
HANDLEBARS Specialized Elite, 6061 aluminum, short drop, 31.8mm
BRAKES
FRONT BRAKE Light dual pivot brake, Teflon pivots, forged alloy, w/ standard pads
BRAKE LEVERS Shimano 2300 STI, flight deck compatible
REAR BRAKE Light dual pivot brake, Teflon pivots, forged alloy, w/ standard pads
ACCESSORIES
PEDALS Silver cage/black body, w/ black toe clips and strap
FRAMESET
HEADSET Cage bearings integrated w/ headset, 20mm of spacers w/ top cap
SEAT BINDER Alloy, 31.8mm
FORK Allez carbon, carbon fiber legs, aluminum crown and steerer
FRAME Specialized Allez A1 Premium aluminum, fully manipulated tubing, smooth weld compact race design, integrated headset
* Specifications are subject to change without notice

Geometry

Geometry Chart

- Geometry

  49 52 54 56 58 61
Crank Length 170mm 170mm 170mm 175mm 175mm 175mm
Stem Length 75mm 90mm 100mm 100mm 110mm 120mm
Handle-Bar Width 400mm 420mm 420mm 420mm 440mm 440mm
Wheelbase 974mm 975mm 982mm 991mm 1008mm 1018mm
Seat-Tube Length, B-B Center to Top 430mm 480mm 500mm 520mm 540mm 580mm
Head-Tube Length 110mm 130mm 155mm 180mm 205mm 230mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 580mm 580mm 587mm 595mm 610mm 617mm
Head-Tube Angle 71.75° 72.5° 72.5° 73° 73° 73.5°
Stand-Over Height 722mm 755mm 777mm 800mm 822mm 853mm
Fork Rake 45mm 45mm 45mm 43mm 43mm 43mm
Trail 65mm 60mm 60mm 59mm 59mm 56mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 300mm 350mm 350mm 350mm 350mm 350mm
