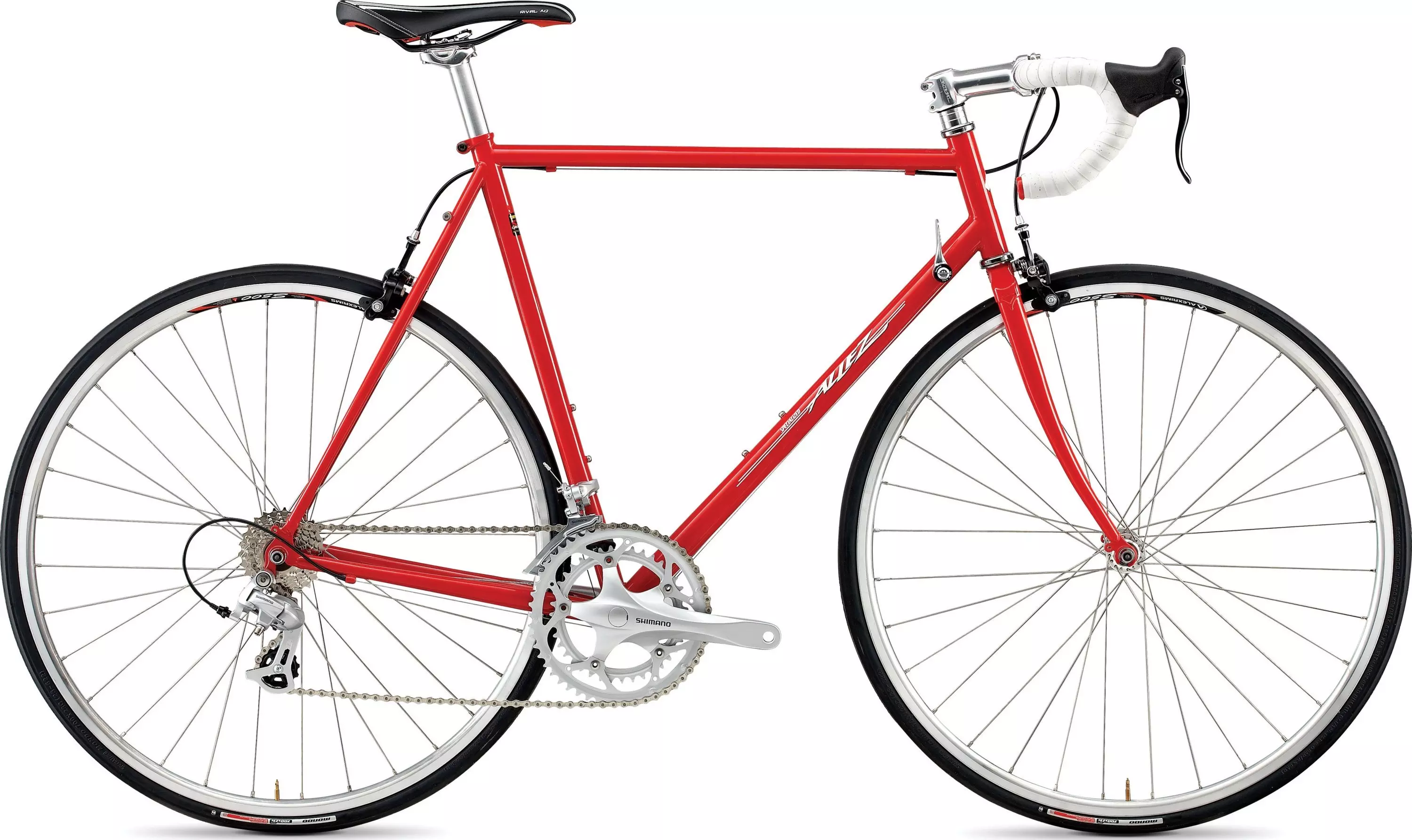

Allez Double Steel
Overview
Technical Specifications
Geometry
Reviews
Call it a "timeless classic" or a "throwback", there is a certain something about the ride quality of a well-made steel frame. If that smooth sweetness is what makes your heart sing, the Allez Steel will bring big smiles on a small budget.
  • Back to basics with simple and reliable down tube shifters
  • Ergonomic short drop aluminum handlebars provide a comfortable riding position
  • Adjustable 4-position stem with 31.8mm bar clamp for strength and versatile positioning
  • Tig welded steel Allez frame with integraded headset for a solid road feel and lauded longevity
  • Allez steel fork will deliver timeless durability and pinpoint-accurate handling while negotiating less-than-stellar roadways

Technical Specifications

DRIVETRAIN
CHAIN KMC Z-51
BOTTOM BRACKET Cr-Mo axle, 68mm x 113mm
CRANKSET Shimano 2300
FRONT DERAILLEUR Shimano 2300
SHIFT LEVERS Shimano SLR400, down tube shifter
CASSETTE Shimano HG-50, 8-speed, 12-25t
CHAINRINGS 52 x 39T
REAR DERAILLEUR Shimano 2300
WHEELS
FRONT HUB Forged aluminum, sealed, QR, 32h
REAR HUB Forged aluminum, double-sealed, cassette, QR, 32h
INNER TUBES Standard presta valve
SPOKES Stainless 14g
FRONT TIRE Specialized Mondo Sport, 700x23c, wire bead, 60TPI, w/ Flak Jacket protection
RIMS Alex S500, aluminum, sleeve joint, CNC machined sidewalls
REAR TIRE Specialized Mondo Sport, 700x23c, wire bead, 60TPI, w/ Flak Jacket protection
COCKPIT
SADDLE Body Geometry Rival road, w/ steel rails
TAPE Specialized S-Wrap, cork ribbon w/ gel
SEATPOST Alloy, two-bolt clamp, 27.2mm
STEM Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS Specialized Elite, 6061 aluminum, short drop, 31.8mm
BRAKES
FRONT BRAKE Light dual pivot brake, Teflon pivots, forged alloy, w/ standard pads
BRAKE LEVERS Lever pull
REAR BRAKE Light dual pivot brake, Teflon pivots, forged alloy, w/ standard pads
ACCESSORIES
PEDALS Silver cage/black body, w/ black toe clips and strap
FRAMESET
HEADSET Aheadset 1"", cage bearings, integrated
SEAT BINDER Integrated w/ frame
FORK Allez Steel
FRAME Specialized Allez steel, integrated HS Tig welded

Geometry

Geometry Chart

- Geometry

  47 49 52 54 56 58 61
Crank Length 170mm 170mm 170mm 170mm 175mm 175mm 175mm
Stem Length 75mm 75mm 90mm 100mm 100mm 110mm 120mm
Handle-Bar Width 400mm 400mm 420mm 420mm 420mm 440mm 440mm
Wheelbase 961mm 974mm 975mm 982mm 991mm 1008mm 1018mm
Seat-Tube Length, B-B Center to Top 490mm 510mm 540mm 560mm 580mm 600mm 630mm
Head-Tube Length 77mm 77mm 97mm 122mm 147mm 172mm 197mm
Top-Tube Length, Horizontal 505mm 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 580mm 580mm 580mm 587mm 595mm 610mm 617mm
Head-Tube Angle 71° 71.75° 72.5° 72.5° 73° 73° 73.5°
Stand-Over Height 767mm 746mm 767mm 791mm 817mm 841mm 866mm
Fork Rake 45mm 45mm 45mm 45mm 43mm 43mm 43mm
Trail 60mm 65mm 60mm 60mm 59mm 59mm 56mm
Chain-Stay Length 392mm 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 76° 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 300mm 300mm 350mm 350mm 350mm 350mm 350mm
