Allez Compact
Part No.

Allez Compact

Part No.  22740
load-spinner
Allez Compact
Overview
Technical Specifications
Geometry
Reviews

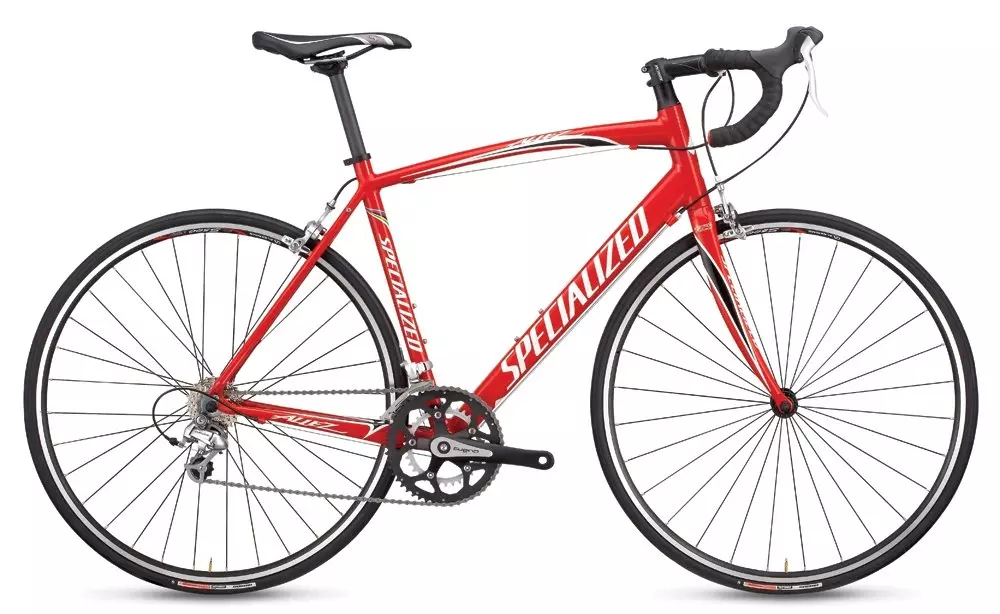

OVER 20 YEARS AGO, we named our first performance road machine after the French word for 'go.' With an entirely redesigned alloy frame reminiscent of the Tarmac, the new Allez delivers the light weight, efficiency and precision handling demanded by enthusiast road riders everywhere, regardless of how they say 'fast.'
  • The A1 Premium Aluminum frame uses a bowed top tube and oversized downtube for superior power transfer and remarkable vertical compliance.
  • The Allez carbon fork soaks up road vibration, provides laser-accurate steering, and is ultra light.
  • The Comp-Set stem combines a 12-degree rise with an oversized 31.8mm bar clamp, for comfortable, accurate steering.
  • Find comfort in the drops with ergonomic Specialized Comp bars, with oversized stem clamp area for a solid bar connection.
  • Shimano’s Sora STI shift levers allow for fast shifts and easy stops.

Technical Specifications

DRIVETRAIN
CHAIN Shimano HG73, 9-speed
BOTTOM BRACKET Sealed cartridge, square taper, 68mm x 103mm
CRANKSET Sugino, five arm, polished
FRONT DERAILLEUR Shimano Sora, 31.8mm clamp, bottom pull
SHIFT LEVERS Shimano Sora, 9-speed STI, flight deck compatible
CASSETTE Shimano Tiagra, 9-speed, 11-25t
CHAINRINGS 50 x 34t
REAR DERAILLEUR Shimano Tiagra, short cage
WHEELS
FRONT HUB Specialized forged alloy, 32 hole, sealed bearings, QR
REAR HUB Specialized forged alloy, 32 hole, double sealed bearings, cassette, QR
INNER TUBES Specialized standard presta tube
SPOKES Stainless 14g
FRONT TIRE Specialized Mondo Sport, 700x23c, wire bead, 60TPI, Flak Jacket
RIMS Alex S500, sleeve joint, CNC sidewalls, 32 hole
REAR TIRE Specialized Mondo Sport, 700x23c, wire bead, 60TPI, Flak Jacket
COCKPIT
SADDLE Specialized Comp Road, full padding
TAPE Body Geometry Bar Phat, cork ribbon w/ 2.5mm gel padding
SEATPOST Specialized carbon wrapped, two-bolt clamp, 27.2mm
STEM Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS Specialized Comp, 6061 alloy, short drop, ergonomic shaping, 31.8mm
BRAKES
FRONT BRAKE Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ standard pads
BRAKE LEVERS Shimano Sora, 9-speed STI, flight deck compatible
REAR BRAKE Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ standard pads
ACCESSORIES
PEDALS Silver cage, black body, w/ toe clip and strap
FRAMESET
HEADSET Specialized Mindset, 1-1/8"" integrated threadless, steel cage bearings, 20mm alloy cone with one 10mm and two 5mm alloy spacers
SEAT BINDER Specialized alloy 31.8mm
FORK Specialized FACT carbon, carbon fiber legs, aluminum crown and steerer
FRAME Specialized A1 Premium Aluminum, fully manipulated tubing, smooth weld compact race design, integrated headset

Geometry

Geometry Chart

Allez - Geometry

  52 54 56 58
Handle-Bar Width 300mm 350mm 350mm 350mm
Reach 518mm 548mm 565mm 582mm
Stack 430mm 500mm 520mm 540mm
Seat-Tube Length, B-B Center to Top 405mm 405mm 405mm 407mm
Ground-Top 71.5mm 69mm 69mm 67.5mm
Top-Tube Length, Horizontal 74mm 73.5mm 73.25mm 73mm
Front-Center 130mm 155mm 180mm 205mm
Head-Tube Angle 580° 587° 595° 617°
Fork Rake 974mm 982mm 991mm 1018mm
Trail 722mm 777mm 800mm 853mm
Chain-Stay Length 45mm 45mm 43mm 43mm
Seat-Tube Angle 60° 60° 59° 59°
B-B Drop 72.5mm 72.5mm 73mm 73mm
