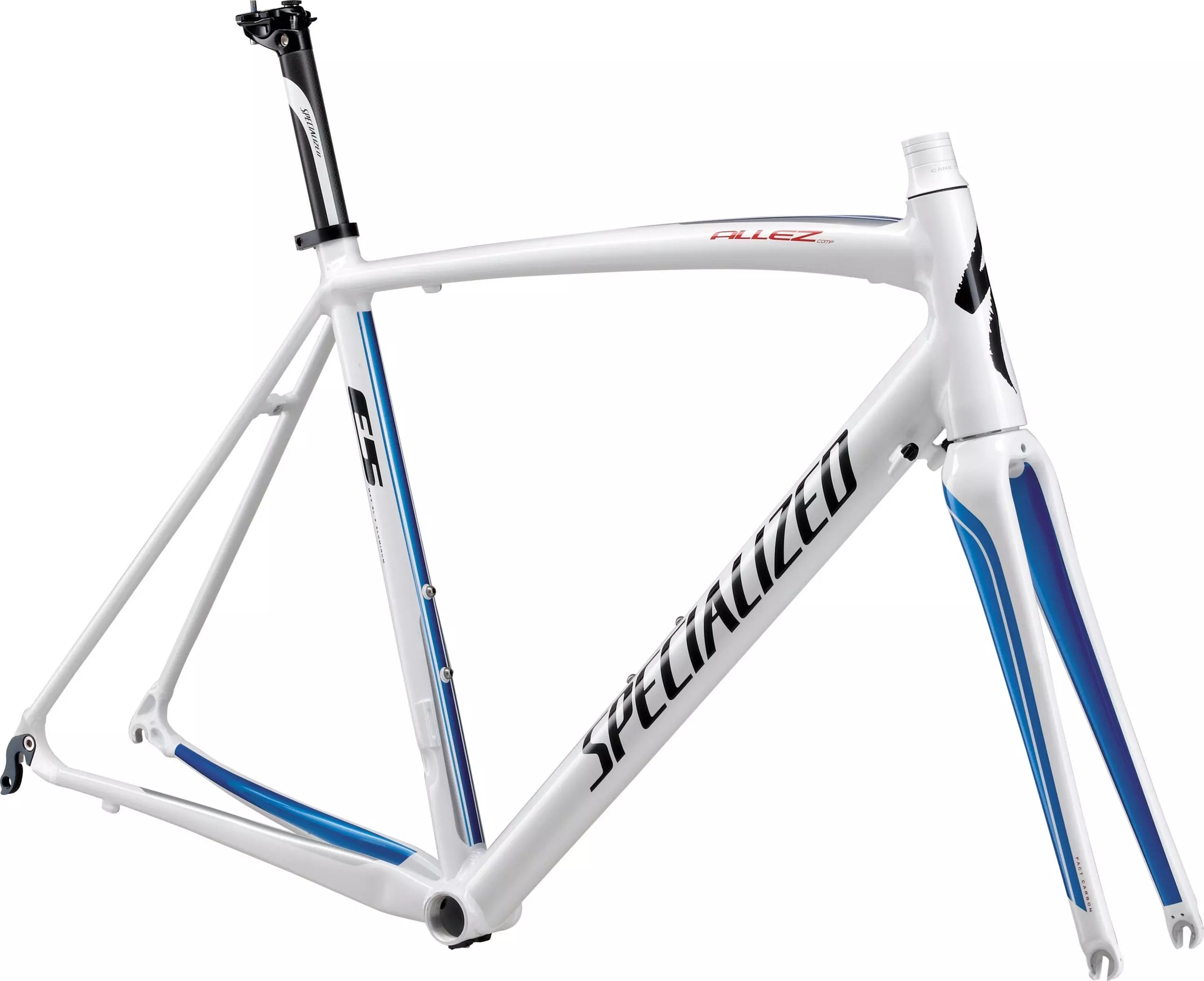

Allez Comp Frameset

Part No.  23436
Allez Comp Frameset
Technical Specifications
Build the ideal workhorse road bike by added the gruppo and wheels of your choice to the Allez Comp Frameset.
  • Race-inspired E5 smooth-welded alloy frame with integrated headset is stiff, light, and fast
  • 1-1/8" to 1-1/2" tapered headset with steel bearings promises lighter weight and low maintenance
  • Ultralight FACT carbon fork and stiff tapered steerer provides precise steering through the tightest turns
  • Specialized Elite alloy seatpost is carbon-wrapped, making it lighter and stiffer for increased power in the saddle

Technical Specifications

SEATPOST Specialized Elite, carbon wrapped alloy, two-bolt clamp, 27.2mm
HEADSET 1-1/8"" upper and 1-1/5"" lower Cr-Mo cartridge bearings integrated w/ headset, 20mm cone spacer with 20mm of spacers
SEAT BINDER Alloy, 31.8mm
FORK Specialized FACT carbon, carbon legs, aluminum crown and steerer, 1.5"" lower bearing
FRAME Specialized E5 aluminum, fully manipulated tubing, smooth weld compact race design, 1.5"" integrated headset, threaded BB


Geometry Chart

Allez - Geometry

  49 52 54 56 58 61 64
Wheelbase 970mm 970mm 978mm 986mm 1003mm 1013mm 1017mm
Seat-Tube Length, B-B Center to Top 460mm 490mm 510mm 530mm 550mm 580mm 620mm
Head-Tube Length 100mm 120mm 145mm 170mm 205mm 230mm 250mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm 605mm
Front-Center 576mm 576mm 583mm 591mm 605mm 613mm 617mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74° 74°
Fork Rake 45mm 45mm 45mm 43mm 43mm 43mm 43mm
Trail 62mm 57mm 57mm 56mm 56mm 53mm 53mm
Stand-Over Height 737mm 777mm 798mm 816mm 836mm 863mm 892mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm 410mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm 67.5mm
Seat-Post Length 0mm 0mm 0mm 0mm 0mm 0mm 0mm
