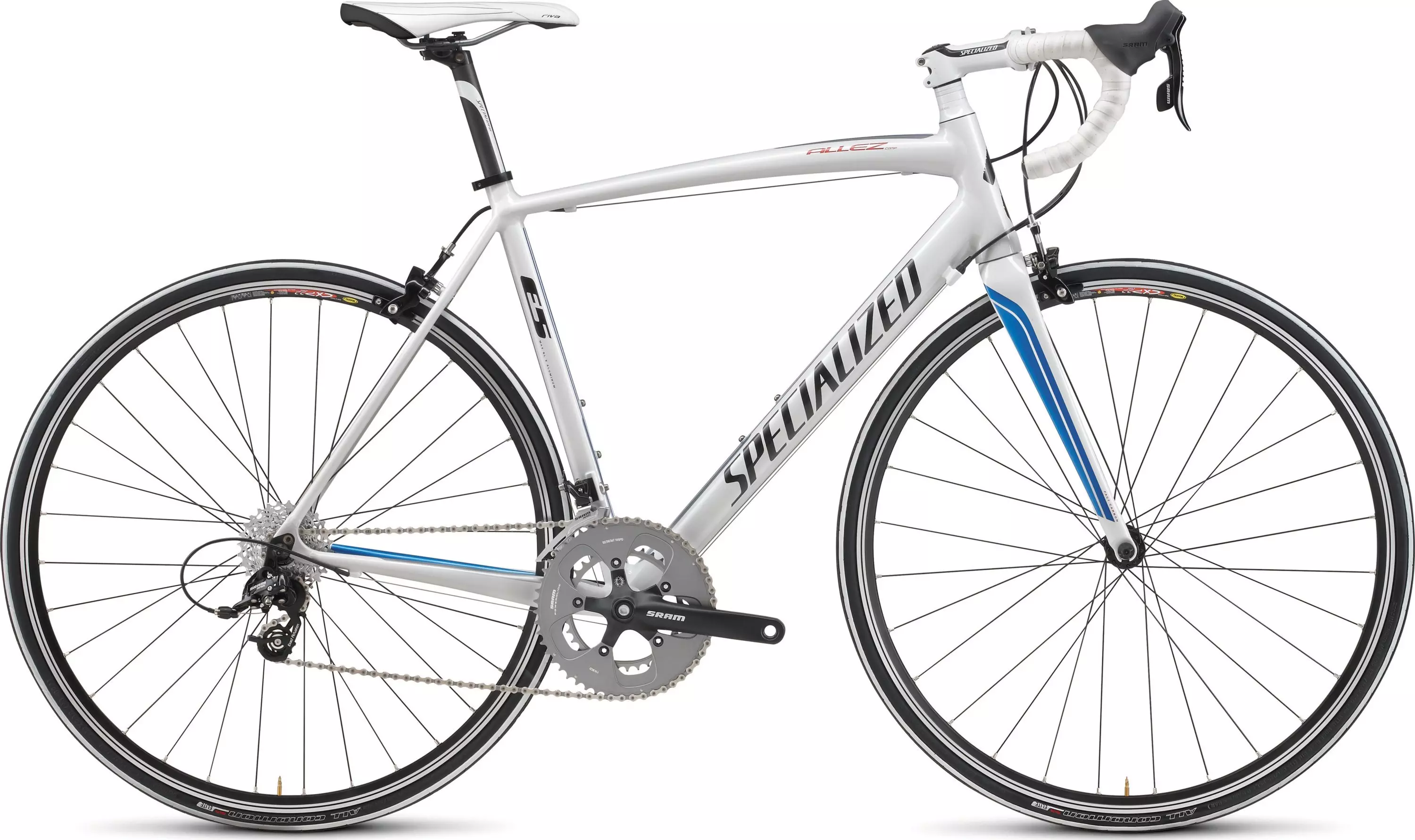

Allez Comp Compact M2 Apex
$1,450.00
Part No.

Allez Comp Compact M2 Apex

$1,450.00
Part No.  23425
load-spinner
Allez Comp Compact M2 Apex
Overview
Technical Specifications
Geometry
Reviews
SRAM Apex 10-speed gruppo offers performance on demand for the motivated club racer.
  • Oversized aluminum handlebar is stiff and light for serious performance
  • Race-inspired E5 smooth-welded alloy frame with integrated headset is stiff, light, and fast
  • Adjustable 4-position oversized alloy stem with 31.8mm bar clamp for strength and versatile positioning
  • Ultralight FACT carbon fork and stiff tapered steerer provides precise steering through the tightest turns
  • New SRAM Apex 10-speed shifters employ "double tap" technology for simple, intuitive shifting with reach adjustment

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.8mm
HEADSET 1-1/8"" upper and 1-1/5"" lower Cr-Mo cartridge bearings integrated w/ headset, 20mm cone spacer with 20mm of spacers
FORK Specialized FACT carbon, carbon legs, aluminum crown and steerer, 1.5"" lower bearing
FRAME Specialized E5 aluminum, fully manipulated tubing, smooth weld compact race design, 1.5"" integrated headset
WHEELS
FRONT HUB Forged alloy Hub, sealed bearings, 28 hole, for J bend round spokes
REAR HUB Forged aluminum, 32h double sealed ball bearings, cassette, QR
INNER TUBES Standard presta valve
SPOKES Stainless 14g
RIMS Mavic CXP22 w/ eyelets
FRONT TIRE Specialized All Condition, 700x23c, aramid bead, 60TPI, w/ Flak Jacket protection
REAR TIRE Specialized All Condition, 700x23c, aramid bead, 60TPI, w/ Flak Jacket protection
DRIVETRAIN
BOTTOM BRACKET With crankset
CHAIN KMC DX10SC
CRANKSET SRAM S100
CASSETTE SRAM Apex, 10-speed, 11-28t
SHIFT LEVERS SRAM Apex
FRONT DERAILLEUR SRAM Apex
CHAINRINGS 52 x 36T SRAM Red rings
REAR DERAILLEUR SRAM Apex
COCKPIT
SADDLE Body Geometry Riva Road, w/ steel rails
TAPE Specialized S-Wrap, w/ gel
SEATPOST Specialized Elite, carbon wrapped alloy, two-bolt clamp, 27.2mm
HANDLEBARS Specialized Elite, 6061 aluminum, 130 drop, 90 reach, 31.8mm
STEM Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
BRAKES
BRAKE LEVERS SRAM Apex
FRONT BRAKE Tektro cold-forged, dual pivot w/ cartridge pads
REAR BRAKE Tektro cold-forged, dual pivot w/ cartridge pads
ACCESSORIES
PEDALS Black cage, body & toe clips w/ strap

Geometry

Geometry Chart

Allez - Geometry

  49 52 54 56 58 61
Stem Length 75mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Handle-Bar Width 400mm 420mm 420mm 420mm 440mm 440mm
Wheelbase 970mm 970mm 978mm 986mm 1003mm 1013mm
Seat-Tube Length, B-B Center to Top 460mm 490mm 510mm 530mm 550mm 580mm
Head-Tube Length 100mm 120mm 145mm 170mm 205mm 230mm
Top-Tube Length, Horizontal 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 576mm 576mm 583mm 591mm 605mm 613mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Fork Rake 45mm 45mm 45mm 43mm 43mm 43mm
Trail 62mm 57mm 57mm 56mm 56mm 53mm
Stand-Over Height 737mm 777mm 798mm 816mm 836mm 863mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 300mm 350mm 350mm 350mm 350mm 350mm
