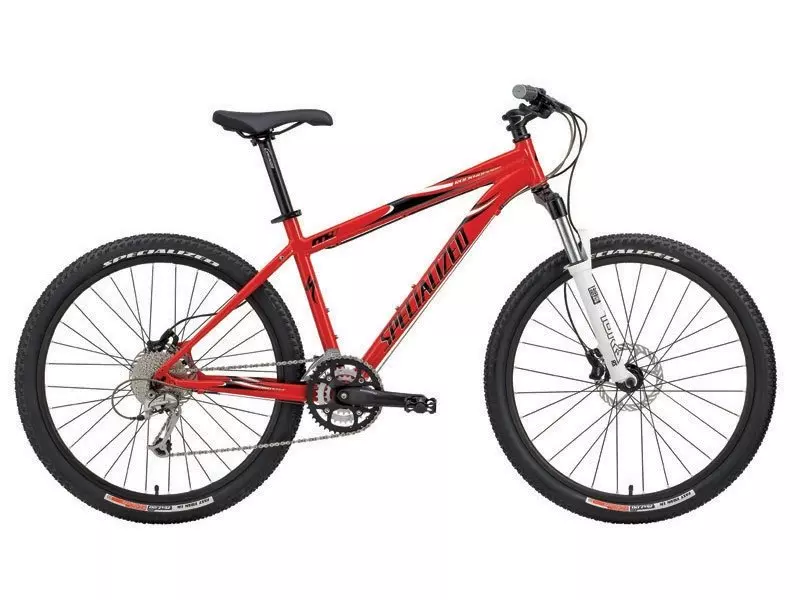

2008 Rockhopper Int'l Rockhopper Disc
0 Opinie
Recreational XC Hardtail INTELLIGENT DESIGN A star in our line-up for more than…
Kolor:
Flo Red
Jaki jest mój rozmiar?
Wybierz Rozmiar
Szczegóły produktu
Recreational XC Hardtail INTELLIGENT DESIGN A star in our line-up for more than two decades, the Rockhopper® with its ultra-refined M4® alloy frame has evolved into the smart choice for anything from a flowing fire road to a fast singletrack.Inside Tech For 2008, we've made both our legendary Stumpjumper and Rockhopper models in a 29-inch wheeled version, with some important improvements over similar bikes on the market. Our unique geometry allows Specialized 29er mountain bikes to have a lower center of gravity and more stability than others of the breed, making for a nimble, yet stable ride. When combined with our new The CaptainTM tire in a 29-inch version, there's no better 29er to handle a wide range of conditions.
Fully butted M4 manipulated alloy frame with butted ORE DT, forged dropouts and replaceable alloy hanger
RockShox Tora 302 SL fork, 100mm travel, 32mm Cr-Mo stanchions and alloy steerer, Mag lowerand lockout
Avid Juicy 3 SL disc 6" hydraulic brakes, G2 clean sweep rotor
Shimano FC-M442-8 crankset, Octalink Spline
Specialized butted alloy 30.9 seatpost
Specyfikacje techniczne
FRAMESET
FRAME
M4 manipulated alloy frame, butted ORE DT, forged dropouts w/ replaceable 98954020 alloy hanger, disc only
HEADSET
1 1/8"" threadless
SEAT BINDER
Specialized alloy w/ QR, brass washer
SUSPENSION
FORK
RockShox Tora 302 SL, 100mm, 32mm Cr-Mo stanchions and alloy steerer, Mag lower, coil spring, preload adj., LO w/ reb. adj.
WHEELS
FRONT TIRE
Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead
REAR TIRE
Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead
RIMS
Specialized/Alex RHD 26, double wall, eyelets, for disc brakes
FRONT HUB
Specialized Hi Lo disc, 28h, CNC flange and disc mount, polished races, alloy QR
REAR HUB
Specialized Hi Lo disc, cassette, 32h, CNC flanges and disc mount, polished races, alloy QR
SPOKES
1.8mm (15g) stainless, alloy nipples, black
DRIVETRAIN
FRONT DERAILLEUR
Shimano Deore FD-M530, 34.9mm clamp
REAR DERAILLEUR
Shimano LX RD-M581, SGS cage
SHIFT LEVERS
Shimano Deore SL-M530 trigger
CHAIN
KMC X9, 1/2"" x 3/32"" w/ reusable Missing Link
CRANKSET
Shimano FC-M442-8, replaceable rings w/ alloy outer, Octalink Spline
CHAINRINGS
44A/32S/22S
BOTTOM BRACKET
Shimano BB-ES25, Octalink spline, cartridge bearing, 68 x 118mm for 50mm chainline
COCKPIT
STEM
Specialized 3D forged alloy w/ graphic, four bolt clamp, 7 degree rise
HANDLEBARS
Specialized alloy butted 31.8mm XC rise w/ graphic, 640mm wide, 8 degree back, 8 degree up sweep
SADDLE
Specialized Indie XC, 143mm width
BRAKES
FRONT BRAKE
Avid Juicy 3 SL, hydraulic, 6"" G2 clean sweep rotor
REAR BRAKE
Avid Juicy 3 SL, hydraulic, 6"" G2 Clean Sweep rotor
BRAKE LEVERS
Avid Juicy 3 SL, hydraulic
ACCESSORIES
PEDALS
Specialized alloy 1pc body and cage, 9/16""
*Wagi są podane dla ram malowanych seryjnie, jak na zdjęciu. Rzeczywista waga może się różnić w zależności od koloru, rozmiaru ramy i różnych komponentów. Dane techniczne mogą ulec zmianie bez uprzedniego powiadomienia.
Geometria
| 13 | 15 | 17 | 19 | 21 | 23 | |
|---|---|---|---|---|---|---|
| Bottom Bracket Height - Low Setting | 304mm | 304mm | 304mm | 304mm | 304mm | 304mm |
| Top Tube Length (Horizontal) | 545mm | 565mm | 590mm | 615mm | 640mm | 660mm |
| Head Tube Height | 100mm | 100mm | 110mm | 120mm | 140mm | 160mm |
| Head Tube Angle - Low Setting | 70° | 70° | 70° | 70° | 70° | 70° |
| Seat Tube Angle (Actual) - Low Setting | 73° | 73° | 73° | 73° | 73° | 73° |
| Top Tube Length (Actual) | 546mm | 551mm | 568mm | 590mm | 615mm | 638mm |
| Seat Tube Length - Center to Top | 330mm | 381mm | 432mm | 483mm | 533mm | 584mm |
| Wheel Base | 1030mm | 1050mm | 1075mm | 1101mm | 1127mm | 1148mm |
| Standover Height | 681mm | 715mm | 750mm | 783mm | 820mm | 855mm |
| Chainstay Length | 426mm | 426mm | 426mm | 426mm | 426mm | 426mm |
| Crank Length | 170mm | 170mm | 175mm | 175mm | 175mm | 175mm |
| Handlebar Width | 640mm | 640mm | 640mm | 640mm | 640mm | 640mm |
| Stem Length | 60mm | 75mm | 75mm | 90mm | 90mm | 90mm |
| Seatpost Length | 350mm | 350mm | 350mm | 400mm | 400mm | 400mm |
Instrukcje do pobrania
Ostrzeżenia dotyczące bezpieczeństwa można znaleźć w dokumentacji na tej stronie, w sekcji Instrukcje do pobrania.
