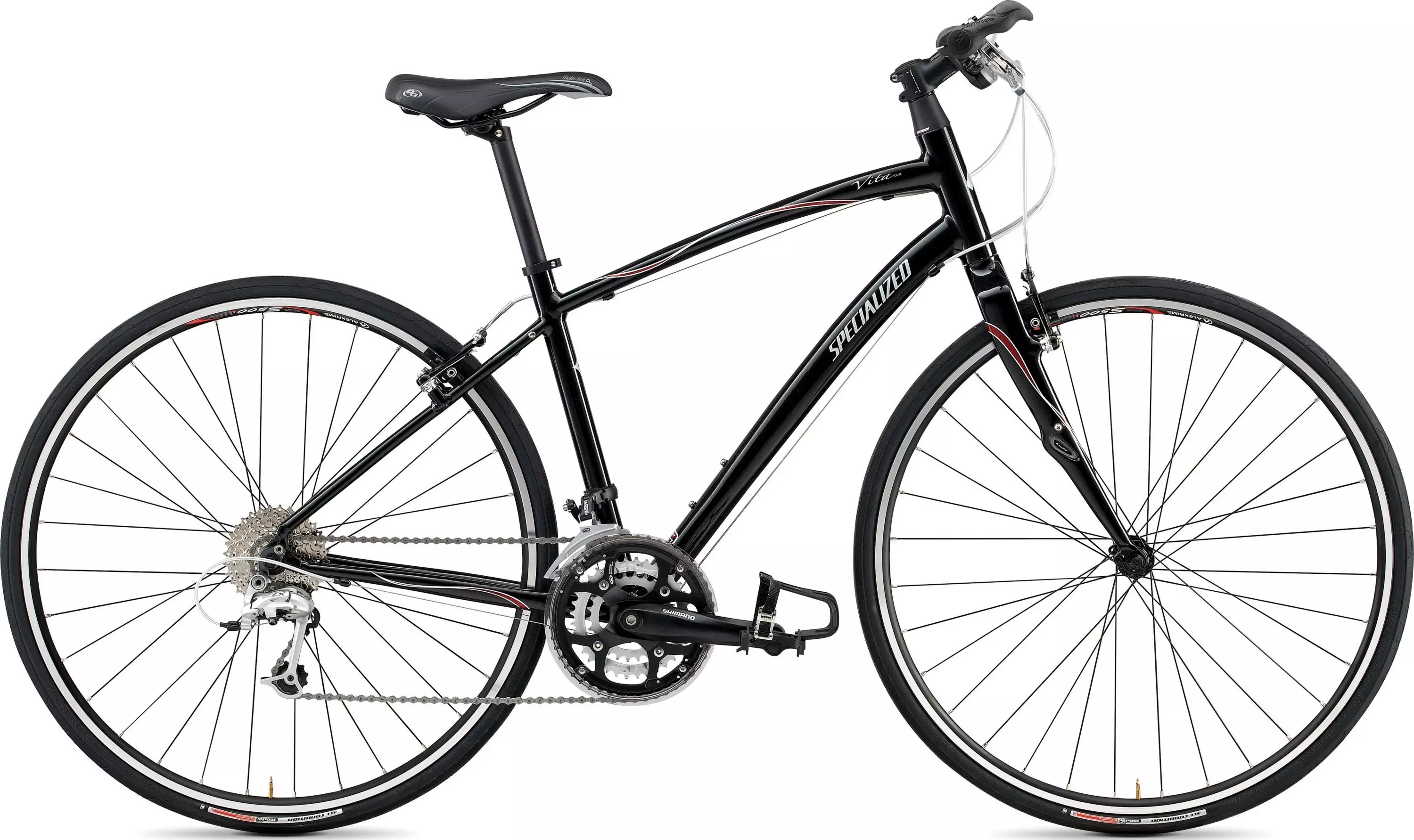

2010 Vita Elite
0 Reviews
Vita Elite
Colour:
Black
What's my size?
Select a Size
Product Details
Vita Elite
Flat aluminum handlebars add comfort and confidence to your ride
Adjustable 4-position stem with 31.8mm bar clamp for strength and versatile positioning
Women's Body Geometry Comfort grips alleviate hand pain and tingling fingers for all-day riding comfort
Body Geometry Dolce saddle provides cushioning where it counts, with enough comfort for long-distance rides
Carbon/aluminum fork—with rack eyelets for packing options—provides maximum strength at minimal weight, and Zertz inserts drown out bumps
Lightweight A1 Premium Aluminum women's compact frame with fitness geometry uses hourglass Speedstays for the perfect balance of performance and comfort
Technical Specifications
FRAMESET
FRAME
Vita A1 Premium aluminum, fully manipulated tubing, women's compact design, hourglass Speedstays, integrated headset
FORK
Vita carbon legs & crown, alloy steerer
HEADSET
Cage bearings integrated HS. w/ 20mm of spacers w/ top cap
SEAT BINDER
Alloy, 31.8mm
WHEELS
REAR HUB
Forged alloy, double-sealed, cassette, QR, 32h
SPOKES
Stainless 14g
FRONT TIRE
Specialized All Condition Sport, 700x28c, wire bead, 60TPI w/ Flak Jacket protection
REAR TIRE
Specialized All Condition Sport, 700x28c, wire bead, 60TPI w/ Flak Jacket protection
INNER TUBES
Standard presta valve
RIMS
Alex S500, aluminum, sleeve joint, CNC machined sidewalls
FRONT HUB
Forged alloy, sealed, QR, 32h
DRIVETRAIN
FRONT DERAILLEUR
Shimano Deore
REAR DERAILLEUR
Shimano Deore LX
SHIFT LEVERS
Shimano LX Rapidfire
CASSETTE
Shimano HG-50, 9-speed, 12-25t
CHAIN
HG-73
CRANKSET
Shimano FC-R443
CHAINRINGS
48 x 38 x 28T
BOTTOM BRACKET
Octalink
COCKPIT
STEM
Specialized Elite-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp
HANDLEBARS
2014 alloy, flat bar, 5-degree bend
TAPE
Body Geometry Comfort Grip, women's, open end /w plug, alloy barend
SADDLE
Body Geometry women's Dolce w/ steel rails
SEATPOST
Alloy, two-bolt clamp, 27.2mm
BRAKES
FRONT BRAKE
Forged 6061 aluminum Mini V-Brake, 85mm linear pull, w/ cartridge pads
REAR BRAKE
Forged 6061 aluminum Mini V-Brake, 85mm linear pull, w/ cartridge pads
BRAKE LEVERS
Tektro forged alloy lever
ACCESSORIES
PEDALS
Silver cage/black body, w/ black toe clips and strap
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Seat-Tube Angle | 76° | 76° | 75° | 74° | 73.5° |
| Head-Tube Length | 125mm | 140mm | 165mm | 190mm | 225mm |
| Seat-Post Length | 0mm | 0mm | 0mm | 0mm | 0mm |
| Head-Tube Angle | 69° | 69° | 70.5° | 71° | 71.5° |
| Chain-Stay Length | 440mm | 435mm | 435mm | 435mm | 435mm |
| Top-Tube Length, Horizontal | 500mm | 515mm | 535mm | 550mm | 570mm |
| Front-Center | 588mm | 607mm | 610mm | 614mm | 625mm |
| Handle-Bar Width | 580mm | 580mm | 580mm | 580mm | 580mm |
| Stand-Over Height | 698mm | 727mm | 757mm | 785mm | 821mm |
| Seat-Tube Length, B-B Center to Top | 360mm | 395mm | 440mm | 475mm | 510mm |
| Fork Rake | 51mm | 51mm | 51mm | 51mm | 51mm |
| B-B Drop | 76mm | 76mm | 74mm | 70mm | 70mm |
| Trail | 79mm | 79mm | 69mm | 66mm | 63mm |
| Wheelbase | 1016mm | 1030mm | 1034mm | 1039mm | 1051mm |
| Crank Length | 170mm | 170mm | 170mm | 170mm | 175mm |
| Stem Length | 90mm | 100mm | 100mm | 110mm | 120mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
