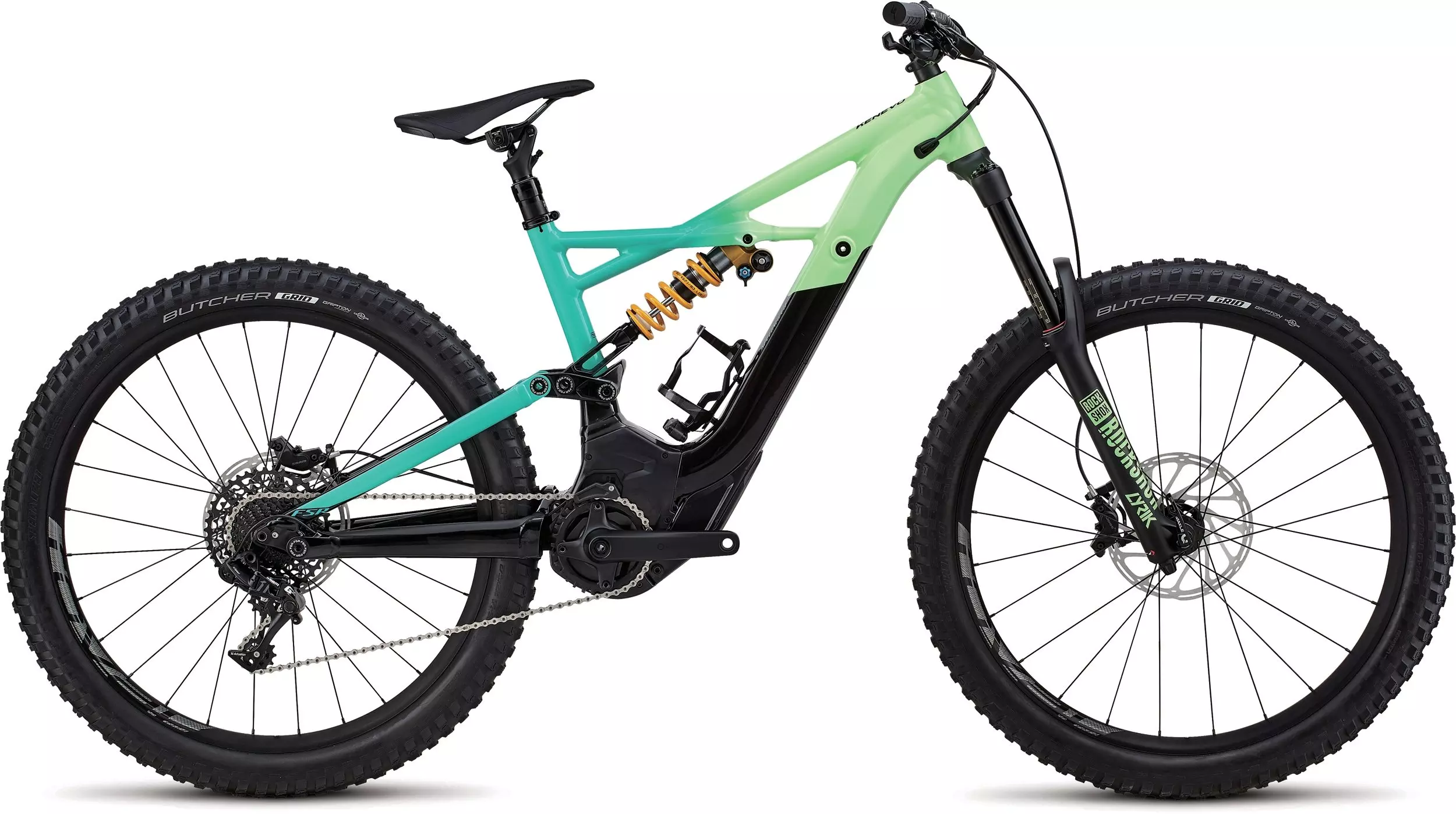

    TURBO KENEVO EXPERT 6FATTIE

    Icon

    2018 TURBO KENEVO EXPERT 6FATTIE

    Descending 1,000 straight feet of the rockiest, most technical, and gnarly trails is one of the most exhilarating feelings imaginable, but climbing back up, lap-after-lap, delivers a different kind of "tingly feeling." Not the adrenaline kind, but more of the quad-searing variety. And while we're all for getting a hard workout in, it's nice to have some extra power, and there's only one bike that allows you to do that without sacrificing big suspension travel—the Turbo Kenevo 6Fattie.

    With the Turbo Kenevo FSR, first and foremost, you get all of the hallmarks that our trail bikes are known for—a roomy top tube for an easy fit and better control, ultra-short chainstays for nimble handling, and a low bottom bracket that makes the bike feel glued to the trail. Top this off with 180 millimetres of front and rear travel, and you have a bike that's ready to send it off of anything.

    Then comes an M5 aluminium frame and efficient and powerful Turbo technology, integrating a battery, and a new Turbo 1.3 motor that delivers 15% more power than the previous version. This also delivers a significant increase in efficiency, while our exclusive Rx Trail Tune at the motor smoothly and quietly brings this additional power to the pedals, making climbing the steepest of trails nearly effortless. The output is fully adjustable to conserve energy, as well, while the custom motor is also the only one on the market that features instant pedal engagement, so you get immediate power the moment you need it, and consistent torque throughout the entire cadence range.

    At the battery, you'll find that it's fully integrated with the down tube and easily removable for quick charging or swaps. It has a lengthy lifespan for hitting long, out of the way trails and, along with the motor, it's strategically placed for optimal weight distribution. You'll also find our Mission Control App for full control of the Turbo technology, an integrated Trail Display with all of the ride metrics you need, a Trail Remote that lets your easily switch between modes without removing your hands from the bars, and a power meter that shows exactly how much power you're putting out vs. the motor.

    The Turbo Kenevo FSR 6Fattie features a build spec that leaves nothing to be desired, with an Öhlins TTX22M coil shock, a RockShox Lyrik fork with 180mm of travel, SRAM's GX one-by groupset, and hand-built Roval alloy wheels. It also features our 6Fattie wheel system that decreases deflection and dramatically increases traction, floatation, and fun over the trail.

    Technical Specifications

    Add Icon

    FRAMESET

    FRAME

    Specialized M5 Premium Aluminum, 6Fattie Trail Geometry, integrated down tube battery, internal cable and Command Post IR routing, 148mm spacing, fully sealed cartridge bearings, 180mm of travel

    FORK

    RockShox Lyrik RCT3, 27.5", Solo Air, Boost 15x110mm, 35mm stanchions, 180mm of travel

    SEAT BINDER

    Alloy, 38.6mm

    SUSPENSION

    REAR SHOCK

    Öhlins TTX Coil, S: 411 lb/in, M: 457 lb/in, L: 502 lb/in, XL: 548 lb/in 216x57

    WHEELS

    RIMS

    Roval Traverse 27.5, hookless alloy, 38mm inner width, tubeless ready, 24/28h

    FRONT HUB

    Specialized, sealed cartridge bearings, 15x110mm thru-axle, 24h

    REAR HUB

    Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h

    SPOKES

    DT Swiss, stainless

    FRONT TIRE

    Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.8"

    REAR TIRE

    Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 27.5 x 2.8"

    INNER TUBES

    27.5 x 2.3" / 3.0", 40mm Presta valve

    DRIVETRAIN

    REAR DERAILLEUR

    SRAM GX, long cage, 11-speed

    SHIFT LEVERS

    SRAM GXe, one-click lever

    CASSETTE

    SRAM PG-1130, 11-speed, 11-42t

    CHAIN

    KMC X11ET, 11-speed w/ Missing Link™

    CRANKSET

    Custom alloy crankarms

    CHAINRINGS

    Forged steel, 32T

    COCKPIT

    STEM

    Specialized Trail, 3D-forged alloy, 4-bolt, 6-degree rise

    HANDLEBARS

    Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm width

    GRIPS

    Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

    SADDLE

    Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm

    SEATPOST

    Command Post Wu, S/M: 125mm of travel, L/XL: 150mm, 34.9mm, 8mm offset

    BRAKES

    FRONT BRAKE

    SRAM Code R, 4-piston caliper, hydraulic disc, 200mm

    REAR BRAKE

    SRAM Code R, hydraulic disc, 200mm

    E-BIKE

    MOTOR

    Specialized 1.3, custom Rx Trail-tuned motor, 250W Nominal

    UI/REMOTE

    Trail Handlebar Remote, motor mode switch & walk-assist

    BATTERY

    Specialized M1-504, integrated Trail Display, ANT+/Bluetooth® module, 504Wh, Mission Control App connectivity

    CHARGER

    Custom charger, 42V4A w/ Rosenberger plug

    WIRING HARNESS

    Custom Specialized wiring harness

    ACCESSORIES

    PEDALS

    Specialized Platform, Cr-Mo axle, PP-Body

    * Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

    Geometry

    Add Icon
    SMLXL
    Crank Length165mm165mm165mm165mm
    Handlebar Width800mm800mm800mm800mm
    Stem Length45mm45mm45mm45mm
    Saddle Width143mm143mm143mm143mm
    Seatpost Length125mm150mm150mm150mm
    Stack601mm610mm619mm629mm
    Reach407mm431mm455mm478mm
    Head Tube Length100mm110mm120mm130mm
    Head Tube Angle65°65°65°65°
    BB Height350mm350mm350mm350mm
    BB Drop9mm9mm9mm9mm
    Trail117mm117mm117mm117mm
    Fork Length, Full574mm574mm574mm574mm
    Fork Rake/Offset46mm46mm46mm46mm
    Front Center734mm762mm790mm818mm
    Chainstay Length443mm443mm443mm443mm
    Wheelbase1177mm1205mm1233mm1261mm
    Top Tube Length, Horizontal566mm597mm626mm655mm
    Bike Standover Height776mm776mm785mm789mm
    Seat Tube Length424mm435mm468mm510mm
    Seat Tube Angle74.3°74.6°74.8°75.2°
    Geometry

    Rider Reviews

    • 5
    • 3 Reviews

    AMAZING BIKE

    This is a great bike and I am constantly looking forward to riding it a much as possible. It is on the heavier side but this does not take away from the handling and feel of the bike. It track and heads in the direction you point it and when it comes to hills it makes light work of these. Amazing piece of kit


    Name:
    Wazza

    Helpful?

    an insane piece of kit

    This bike is incredible beyond belief, it never stops amazing me on what trails I can now get up let alone go down, endless amounts of fun at my local spots, no more push ups and headwinds are a breeze, by far the most amazing bike I've owned.


    Name:
    Staircase G.

    Helpful?
