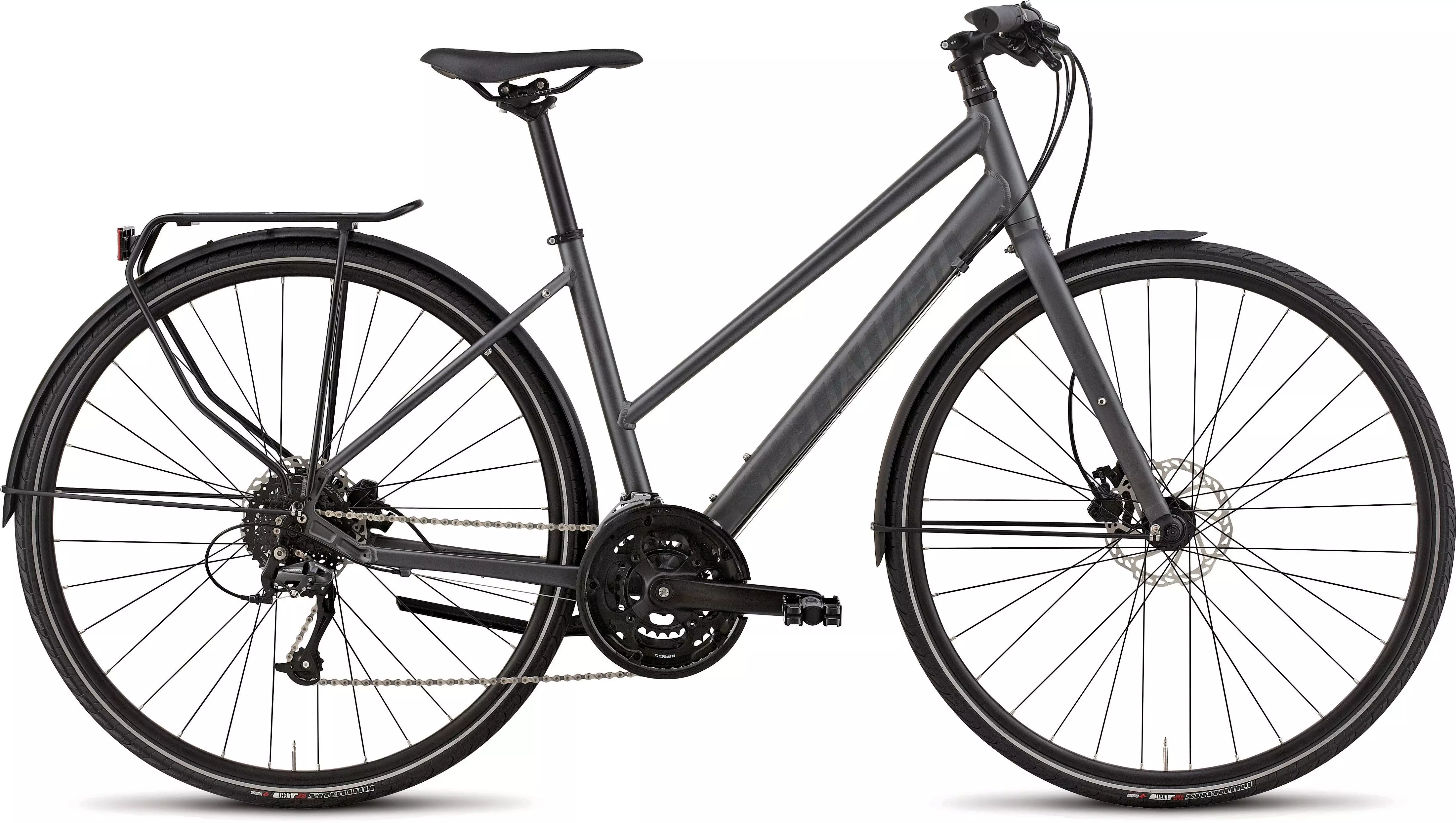

2015 Source Sport Disc Step Through

0 Reviews

A true multi-tasker for anything from commuting to a weekend camping trek down…

Colour:

Satin Graphite/Tint Graphic

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

A true multi-tasker for anything from commuting to a weekend camping trek down the coast with loaded panniers, the Source Sport Disc Step Through does it all anytime, anywhere with integrated rack, and mudguards, plus a step-through frame for added convenience.

Specialized A1 Premium Aluminium w/ mudguard/rack eyelets and step through design
Specialized aluminium mudguards keep you dry and grime free
Specialized aluminium mudguards keep you dry and grime free
Specialized A1 Premium Aluminium w/ mudguard/rack eyelets and step through design
Specialized A1 Premium Aluminium w/ mudguard/rack eyelets and step through design
Straight blade, alloy fork with mudguard mounts saves weight and adds durability
Specialized A1 Premium Aluminium w/ mudguard/rack eyelets and step through design

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminium step through, fully manipulated tubing, integrated headset, w/ fender/rack eyelets

HEADSET

1-1/8" sealed Cr-Mo bearings integrated w/ headset, 15mm alloy cone spacer

SEAT BINDER

Alloy, 31.8mm

SUSPENSION

FORK

Alloy legs/crown, Cr-Mo steerer, fender/rack eyelets, internal light cable routing

WHEELS

RIMS

Alloy, double-wall, disc

FRONT HUB

Specialized Stout, Hi Lo disc, alloy, double-sealed, ground race, QR, 32h

REAR HUB

Specialized Stout, Hi Lo disc, alloy, double-sealed, loose ball bearings, QR, 32h

SPOKES

Stainless, 14g, black

FRONT TYRE

Specialized Nimbus Light, reflective, 700x32c

REAR TYRE

Specialized Nimbus Light, reflective, 700x32c

INNER TUBES

Standard, Presta valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano FD-M191, top swing, dual pull

REAR DERAILLEUR

Shimano Acera, 8-speed

SHIFT LEVERS

Shimano Acera, 8-speed

CASSETTE

Shimano HG-31, 8-speed, 11-34

CHAIN

KMC X8, 8-speed, w/ reusable MissingLink

CRANKSET

Specialized Stout, forged alloy, 48/38/28T, w/ chainguard

CHAINRINGS

48/38/28

BOTTOM BRACKET

Square taper, cartridge bearings

COCKPIT

HANDLEBARS

Specialized Stout XC, flat bar, double-butted 6061 alloy, 9-degree backsweep, 4-degree upsweep, 31.8mm

GRIPS

Specialized Body Geometry Contour Women's, lock-on, closed end

SADDLE

Body Geometry Women's Riva, steel rails, 155mm

SEATPOST

Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm

STEM

Specialized, 3D forged alloy, 4-bolt, 7-degree rise

BRAKES

FRONT BRAKE

Tektro Auriga, hydraulic disc, resin/metallic pads, 160mm rotor

REAR BRAKE

Tektro Auriga, hydraulic disc, resin/metallic pads, 160mm rotor

BRAKE LEVERS

Tektro Auriga, hydraulic, reach adjust

ACCESSORIES

PEDALS

Nylon body, alloy cage, low profile bearing system

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	SM	MD	LG
Seat-Tube Angle	74.5°	74°	73°
Head-Tube Length	130mm	150mm	165mm
Seat-Post Length	350mm	350mm	350mm
Head-Tube Angle	70°	71°	71°
Chain-Stay Length	445mm	445mm	445mm
Top-Tube Length, Horizontal	535mm	550mm	565mm
Front-Center	616mm	617mm	622mm
Handle-Bar Width	660mm	680mm	680mm
Stand-Over Height	619mm	628mm	628mm
Seat-Tube Length, B-B Center to Top	395mm	440mm	475mm
Fork Rake	51mm	51mm	51mm
B-B Drop	70mm	70mm	70mm
Trail	73mm	67mm	67mm
Wheelbase	1052mm	1053mm	1057mm
Crank Length	170mm	175mm	175mm
Stem Length	75mm	90mm	90mm
