    Pitch Expert 1X

    Icon

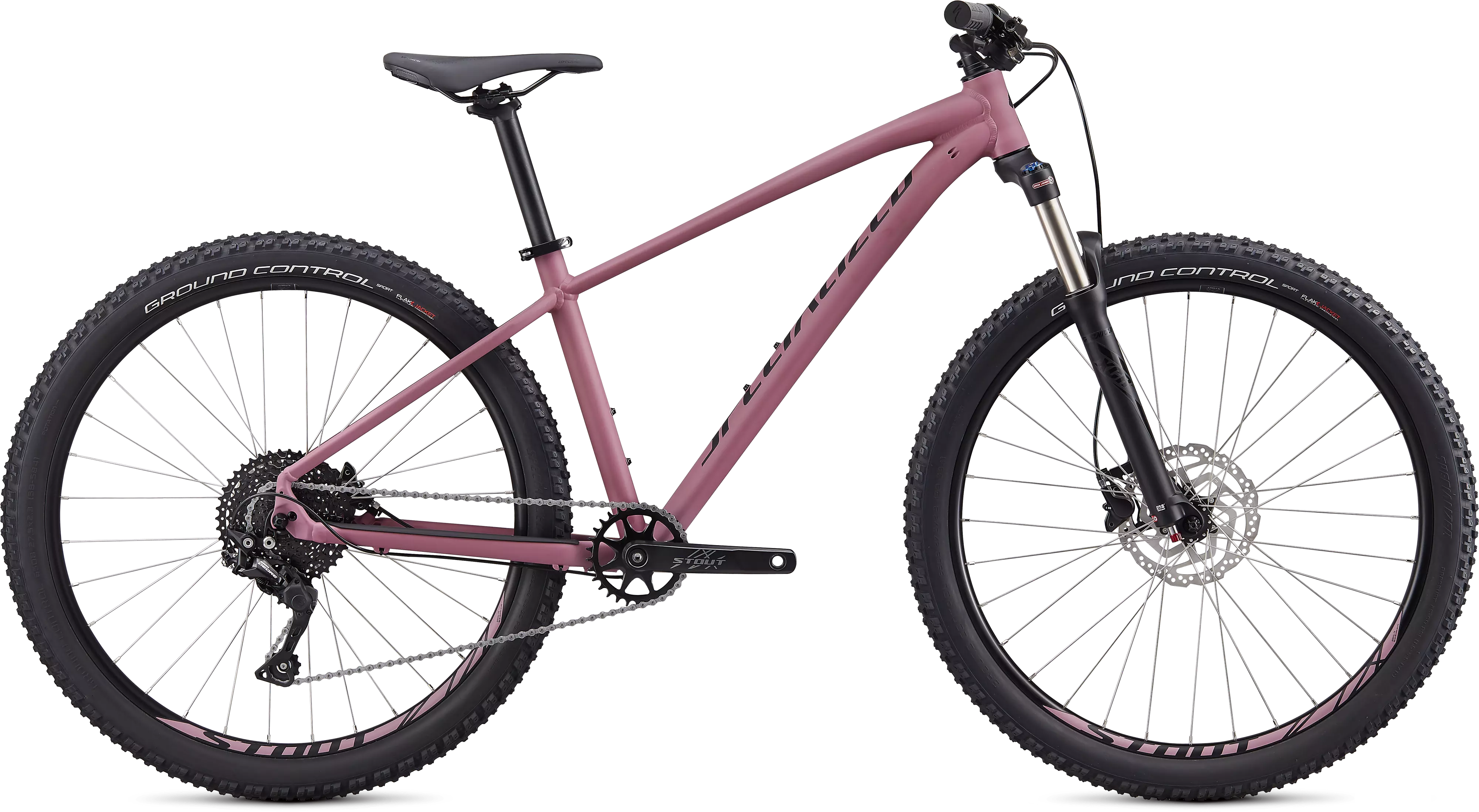

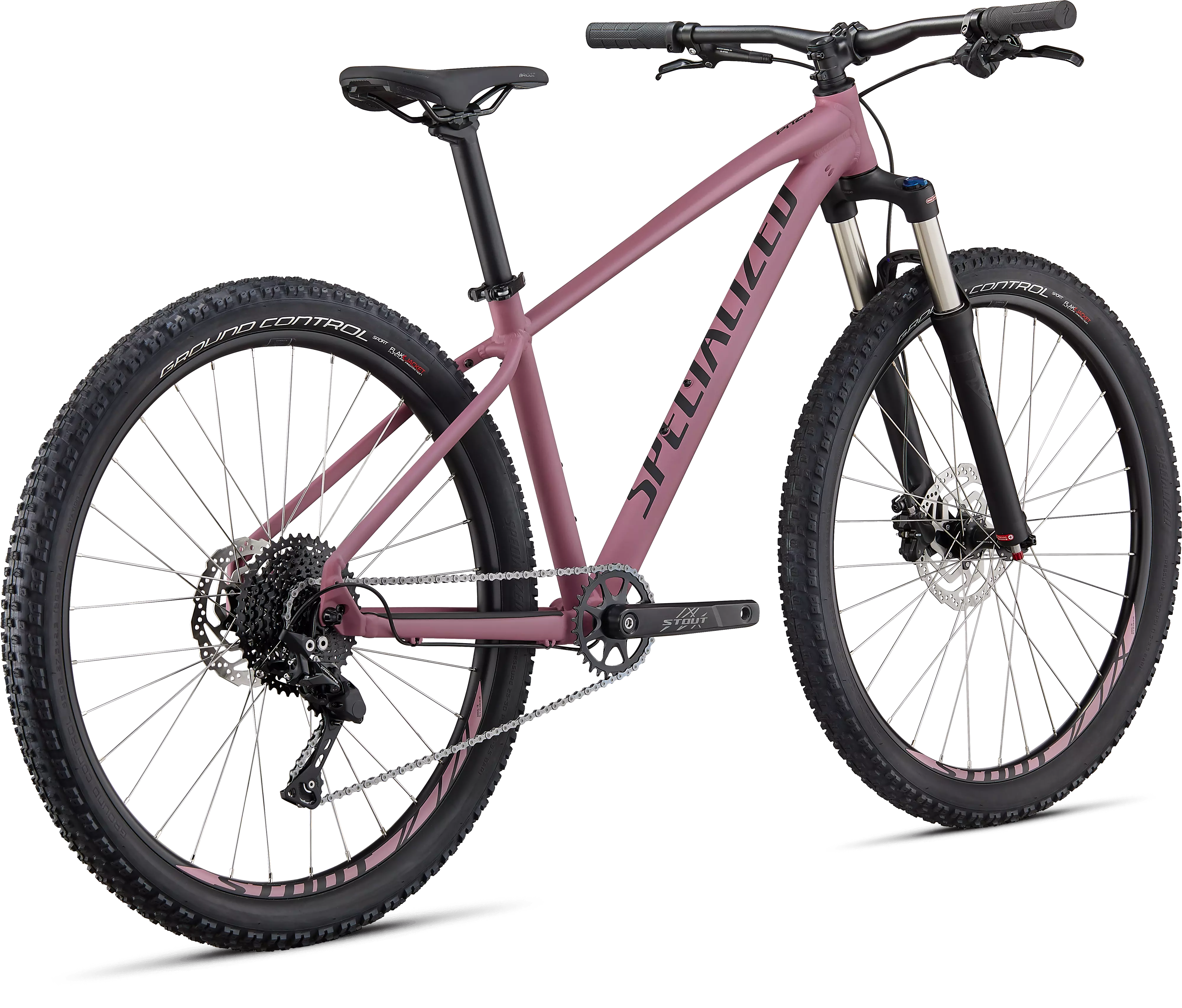

    2020 Pitch Expert 1X

    Are you ready for a seriously good time? Hit the trails on the Pitch Expert 1X, with a sturdy, lightweight aluminum frame for efficient climbing and dialed handling and high-quality suspension that turns any descent into the best rollercoaster you've ever been on.

    TRAIL-OPTIMIZED GEOMETRY

    The Sport Trail 27.5 geometry on the Pitch Expert 1X is designed for the perfect balance between stability and agility, with a position that keeps you perfectly balanced. The slack head angle offers precise line choice, while the short wheelbase mocks tight switchbacks.

    SUREFIRE SHIFTING

    The 10-speed Shimano Deore drivetrain features unparalleled performance in its class, with quick, quiet, precise shifts from the ergonomic Rapidfire Plus™ trigger shifter, and a clutch-style Shadow Plus™ rear derailleur that retains perfect chain tension to limit chain slap and bounce.

    The air-sprung SR SunTour XCR air suspension fork offers 80/90/100mm of lightweight, size-specific travel.

    Ground Control Sport tires in a wide 2.3-inch size keep the ride smooth and controlled.

    A1 Premium Aluminum frame is the perfect balance of light weight and durability.

    Technical Specifications

    Add Icon

    FRAMESET

    FRAME

    A1 Premium Aluminum, Sport Trail 27.5 Geometry, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger

    SEAT BINDER

    Alloy, QR clamp, 34.9mm

    SUSPENSION

    FORK

    SR SunTour XCR, air spring, 42mm offset, 80/100mm of travel (size-specific)

    COCKPIT

    STEM

    Stout 3D-forged alloy, 31.8mm, 6-degree rise

    HANDLEBARS

    Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm

    GRIPS

    Specialized MTB Grip, lock-on

    SEATPOST

    Alloy, 12mm offset, 2-bolt clamp, 30.9mm

    BRAKES

    FRONT BRAKE

    Shimano BR-MT200, hydraulic disc, 180/160mm

    REAR BRAKE

    Shimano BR-MT200, hydraulic disc, 160mm

    DRIVETRAIN

    REAR DERAILLEUR

    Shimano Deore, Shadow Plus, GS cage, 10-speed

    SHIFT LEVERS

    Shimano Deore, RapidFire Plus, 10-speed w/ Optical Gear Display

    CASSETTE

    SunRace, 11-42t, 10-speed

    CHAIN

    KMC, X10, EPT anti-corrosion coating, 10-speed w/ Missing Link™

    CRANKSET

    Stout 1x, forged alloy

    CHAINRINGS

    30T

    BOTTOM BRACKET

    Square-tapered, 73mm, internal bearings

    WHEELS

    RIMS

    Specialized alloy, disc only, double-wall, 25mm inner width, 32h

    FRONT HUB

    Shimano, Center Lock™ disc, 9x100mm spacing, quick-release, 32h

    REAR HUB

    Shimano FH-TX505, Center Lock™ disc, 9x135mm spacing, quick-release, 32h

    SPOKES

    Stainless, 14g

    FRONT TIRE

    Ground Control Sport, 27.5x2.3"

    REAR TIRE

    Ground Control Sport, 27.5x2.3"

    INNER TUBES

    Schrader, 40mm valve

    * Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

    Geometry

    Add Icon
    XSSMLXL
    Crank Length165170170175175
    Handlebar Width720mm720mm740mm740mm740mm
    Stem Length3545456060
    Saddle Width155mm155mm143mm143mm143mm
    Seatpost Length350350350400400
    Stack562mm562mm585mm604mm618mm
    Reach380mm400mm420mm440mm460mm
    Head Tube Length95mm95mm100mm120mm135mm
    Head Tube Angle68.5°68.5°68.5°68.5°68.5°
    BB Height310mm310mm310mm310mm310mm
    BB Drop43mm43mm43mm43mm43mm
    Trail94mm94mm94mm94mm94mm
    Fork Length, Full475mm475mm495mm495mm495mm
    Fork Rake/Offset42mm42mm42mm42mm42mm
    Front Center631mm651mm680mm708mm733mm
    Chainstay Length435mm435mm435mm435mm435mm
    Wheelbase1063mm1083mm1112mm1139mm1165mm
    Top Tube Length, Horizontal542mm572mm599mm625mm649mm
    Bike Standover Height660mm690mm739mm766mm808mm
    Seat Tube Length310mm360mm415mm450mm510mm
    Seat Tube Angle74°73°73°73°73°
