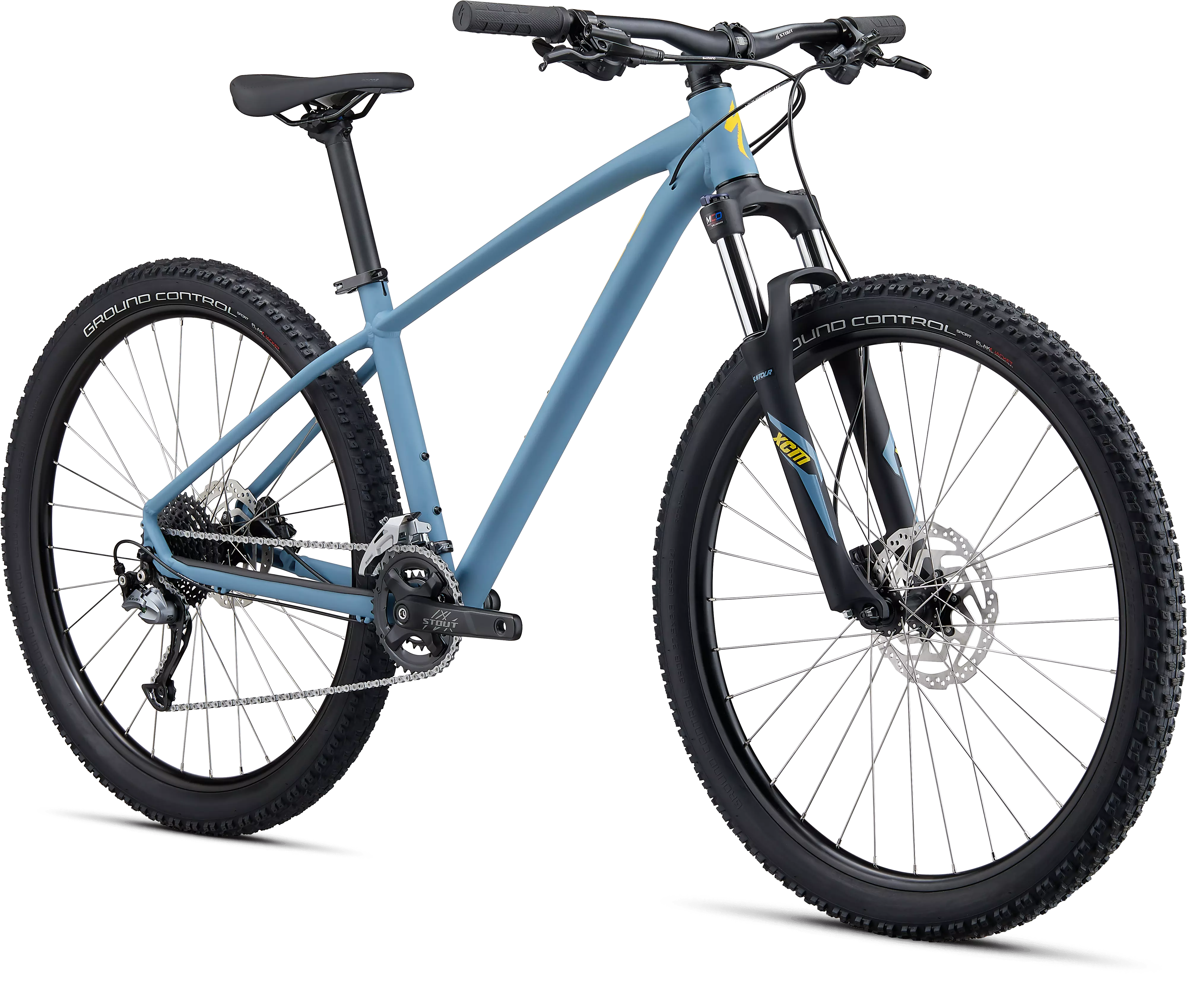

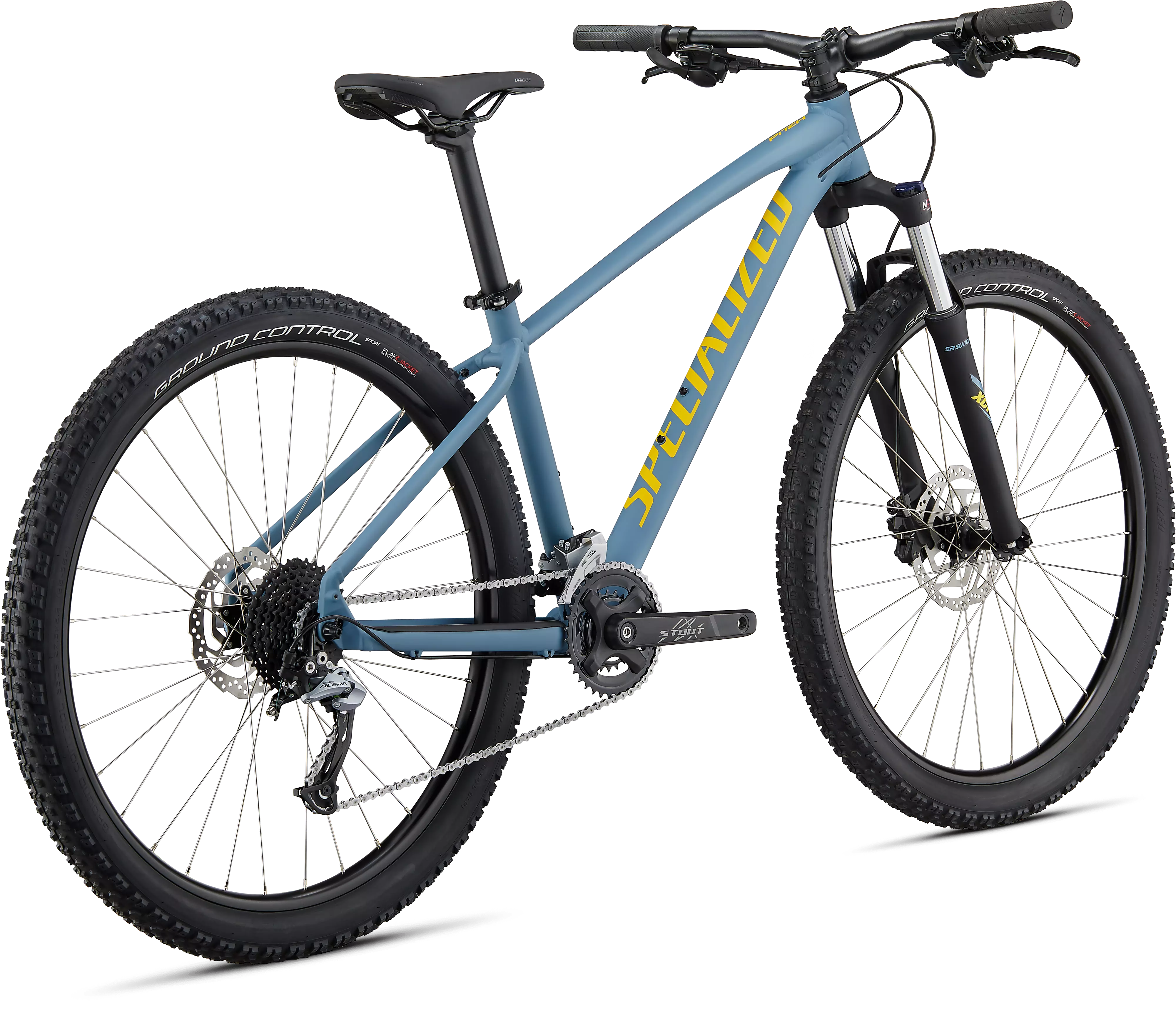

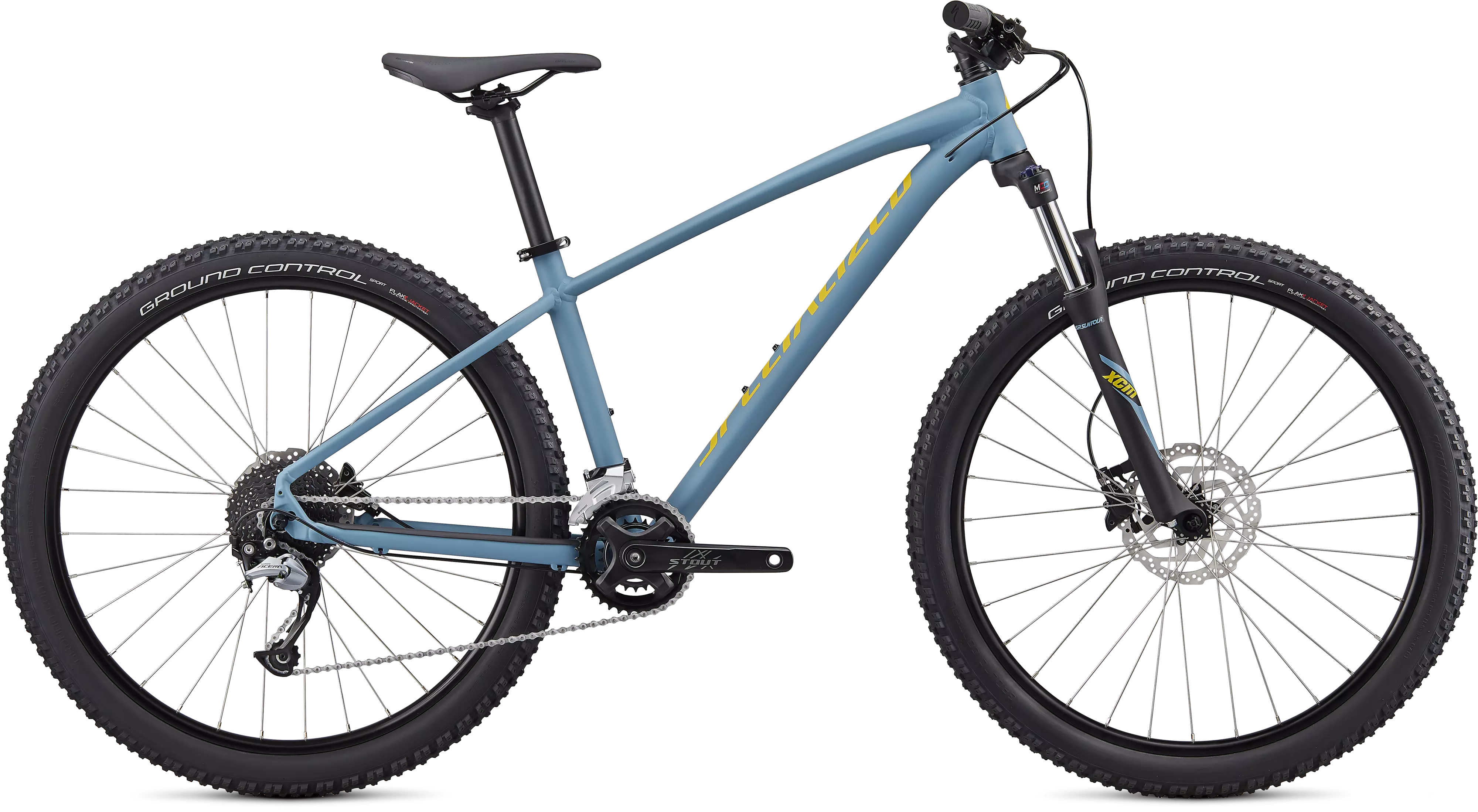

2020 Pitch Comp 2X

£549.00

0 Reviews

The rugged Pitch Comp is built to get you way out there and back on every adventure.…

Colour:

Satin Storm Grey/Golden Yellow/Black

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the colour and size you're looking for to search nearby store inventory.

Unavailable

This item is not eligible for ship to home

Unavailable

This item is not available for Find Nearby

Product Details

The rugged Pitch Comp is built to get you way out there and back on every adventure. We relentlessly refined the Pitch’s handling for an exquisite balance of an agile, playful feel, with stability at speed, all in a proven frame design with durable performance parts.

THE SWEET SPOT

What to pick, the nimble 26-inch wheel size or the fast-rolling 29er? Neither, we said. The the sweet spot for many riders, and trails, is right in between, so the Pitch rolls on 27.5-inch wheels that offer a 29er’s confident handling in a tighter, lighter package.

STRENGTH AND GRACE

The A1 Premium Aluminum frame is pretty much the definition of strong. But that doesn’t mean it rides like a brute. Our engineers carefully optimized the shape of every tube to ensure it offers a smooth, comfortable, confident ride even on the bumpiest trails.

TOP-CLASS PARTS

Double-chainring Shimano drivetrain handles steep climbs with ease.

SR Suntour XCM suspension fork with Multi-Circuit custom damping.

Sure-gripping Ground Control Sport tires for reliable traction.

Technical Specifications

FRAMESET

FRAME

A1 Premium Aluminum, Sport Trail 27.5 Geometry, zero-stack head tube, internal cable routing, 135x9mm forged dropouts, chainstay-mounted disc brake, replaceable alloy derailleur hanger

SEAT BINDER

Alloy, QR clamp, 34.9mm

SUSPENSION

FORK

SR Suntour XCM 27.5 w/HLO, coil, custom Multi-Circuit damping, 80/100mm of travel (size-specific)

COCKPIT

STEM

Stout 3D-forged alloy, 31.8mm, 6-degree rise

HANDLEBARS

Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm

GRIPS

Specialized MTB Grip, lock-on

SEATPOST

Alloy, 12mm offset, 2-bolt clamp, 30.9mm

BRAKES

FRONT BRAKE

Shimano BR-MT200, hydraulic disc, 180/160mm

REAR BRAKE

Shimano BR-MT200, hydraulic disc, 160mm

DRIVETRAIN

FRONT DERAILLEUR

Shimano Altus FD-M2020 2-speed

REAR DERAILLEUR

Shimano Acera, 9-speed

SHIFT LEVERS

Shimano Altus, RapidFire Plus, 9-speed

CASSETTE

SunRace, 9-Speed, 11-36t

CHAIN

KMC X9EPT, 9-speed, anti-corrosion coating w/ reusable Missing Link™

CRANKSET

Stout 2x, forged alloy

CHAINRINGS

36/22T

BOTTOM BRACKET

Square-tapered, 73mm, internal bearings

WHEELS

RIMS

Specialized alloy, disc only, double-wall, 25mm inner width, 32h

FRONT HUB

Shimano, Center Lock™ disc, 9x100mm spacing, quick-release, 32h

REAR HUB

Shimano FH-TX505, Center Lock™ disc, 9x135mm spacing, quick-release, 32h

SPOKES

Stainless, 14g

FRONT TIRE

Ground Control Sport, 27.5x2.3"

REAR TIRE

Ground Control Sport, 27.5x2.3"

INNER TUBES

Schrader, 40mm valve

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	S	M	L	XL
Crank Length	165	170	170	175	175
Handlebar Width	720mm	720mm	740mm	740mm	740mm
Stem Length	35	45	45	60	60
Saddle Width	155mm	155mm	143mm	143mm	143mm
Seatpost Length	350	350	350	400	400
Stack	562mm	562mm	585mm	604mm	618mm
Reach	380mm	400mm	420mm	440mm	460mm
Head Tube Length	95mm	95mm	100mm	120mm	135mm
Head Tube Angle	68.5°	68.5°	68.5°	68.5°	68.5°
BB Height	310mm	310mm	310mm	310mm	310mm
BB Drop	43mm	43mm	43mm	43mm	43mm
Trail	94mm	94mm	94mm	94mm	94mm
Fork Length, Full	475mm	475mm	495mm	495mm	495mm
Fork Rake/Offset	42mm	42mm	42mm	42mm	42mm
Front Center	631mm	651mm	680mm	708mm	733mm
Chainstay Length	435mm	435mm	435mm	435mm	435mm
Wheelbase	1063mm	1083mm	1112mm	1139mm	1165mm
Top Tube Length, Horizontal	542mm	572mm	599mm	625mm	649mm
Bike Standover Height	660mm	690mm	739mm	766mm	808mm
Seat Tube Length	310mm	360mm	415mm	450mm	510mm
Seat Tube Angle	74°	73°	73°	73°	73°
