2011 P.2 Int

Part No.: 9119-2622

0 Reviews

Marzocchi DJ2 fork smooths out the P.2 landing, while its double-butted Cr-Mo Reynolds…

Colour:

Black

Size:

N/A

Product Details

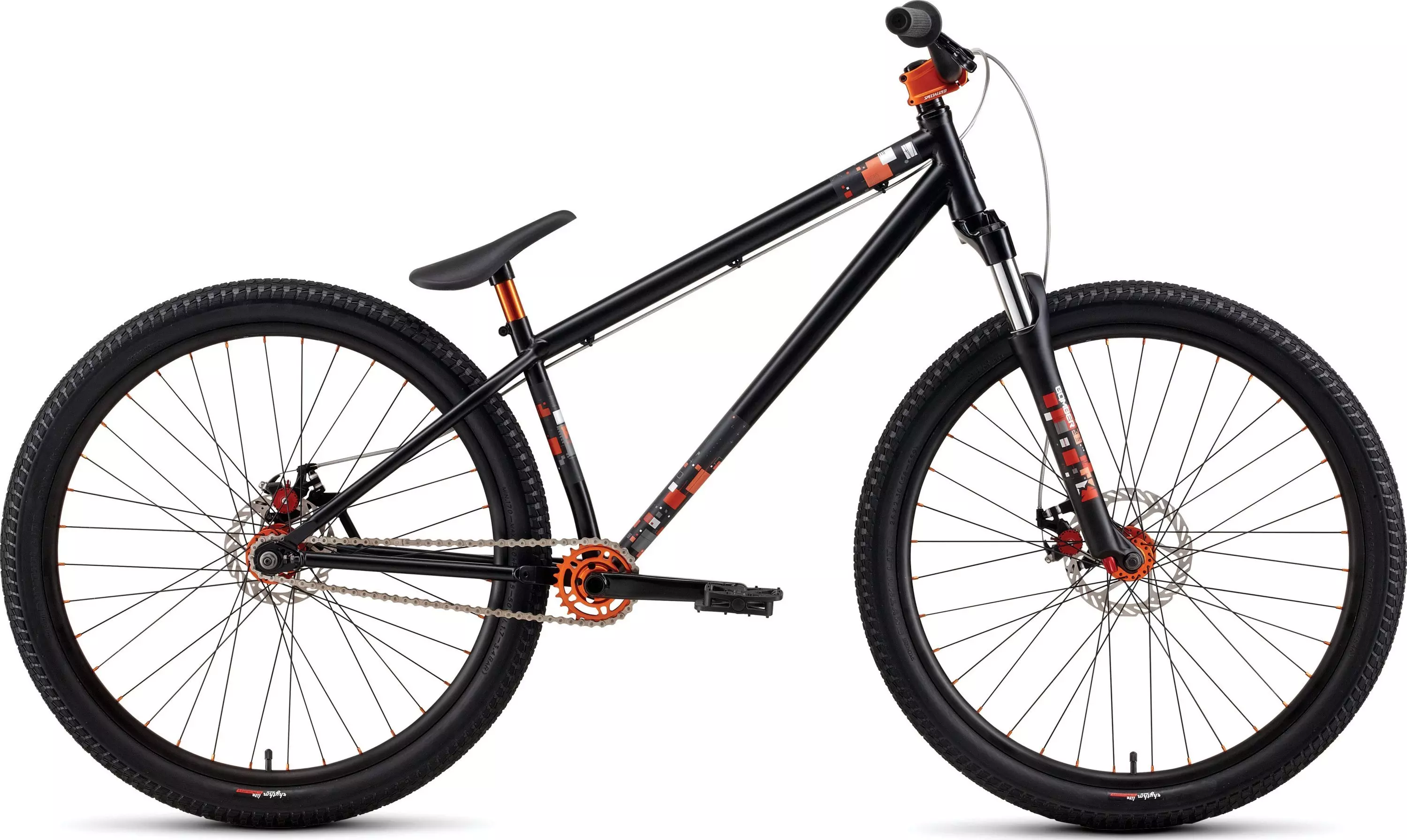

Marzocchi DJ2 fork smooths out the P.2 landing, while its double-butted Cr-Mo Reynolds steel frame can withstand the unplanned dismounts.

Sealed cartridge bearing MID BB handles abuse like no other system
Superlight and durable one-piece saddle/post combo can take a serious beating
36-spoke, double-walled and eyeletted 26" alloy rims are built to withstand endless abuse
Avid BB5 mechanical disc brake with 140mm G2 Clean Sweep rotor for smooth stopping power you can modulate when you need it
Lightweight plastic platform pedals take mercy on your shins, but remain strong enough to handle even the harshest landing
80mm-travel Marzocchi DJ2 fork features hydraulic damping and rebound/preload adjust with a "stiff" coil spring to take the edge off those larger hits
Pavement, concrete, or dirt, Specialized Rhythm Lite Control tires w/ Aramid bead are fast-rolling and durable, with ample bite for your dirt sessions
BMX style, 2-piece tubular Cr-Mo crankset is strong and light to boost with confidence, singlespeed 25t chainring resists bending and delivers the clearance you need
Butted singlespeed-specific Reynolds 520 Cr-Mo frame with integrated head tube, MID BB, and 3D-forged horizontal dropouts with integrated chain tensioner has perfectly dialed geos for dirt, park, or street

Technical Specifications

FRAMESET

FRAME

P. Series Reynolds 520 Cr-Mo, double-butted TT/DT, SS-specific dirt/park/street geo, integrated externally relieved HT, forged horizontal drop outs w/ disc mount and integrated tensioner

HEADSET

Integrated FSA Impact, 1-1/8"" threadless, Campy type cartridge bearings

SEAT BINDER

Integrated w/ replaceable single bolt

SUSPENSION

FORK

Marzocchi DJ2, 80mm, 32mm stanchions, magnesium lower, cold forged crown, hydraulic damping w/ rebound adj, coil spring w/ air preload adj.

WHEELS

RIMS

P. Disc 26"", alloy double wall, pinned w/ eyelets, 36h

FRONT HUB

Forged alloy, hi/low flange, double sealed, ground race, machined disc mount and flange, bolt on axle, 36h

REAR HUB

P. Disc Cassette, Forged alloy single speed cassette, machined flanges and disc mount, 3/8"" bolt on axle, cartridge bearings, 36h

SPOKES

2mm (14g) stainless

FRONT TIRE

Specialized Rhythm Lite Control, 26 x 2.3"", 60TPI, aramid bead

REAR TIRE

Specialized Rhythm Lite Control, 26 x 2.3"", 60TPI, aramid bead

INNER TUBES

Schraeder valve

DRIVETRAIN

CASSETTE

Cr-Mo 1/2x1/8x12t cog

CHAIN

KMC Z510HX, 1/2"" x 1/8"", anti-drop inner links

CRANKSET

P. 2pc Tubulars, heat treated Cr-Mo for 8 spline, 175mm length

CHAINRINGS

CNC cut 6061, 25t, Motostar design

BOTTOM BRACKET

Mid BB, 2x sealed cartridge bearing w/ 19mm spindle, alloy tube and cone spacers

COCKPIT

SEATPOST

Alloy, no offset, 25.4mm

STEM

SBC Aggro Stem, 3D forged/CNC, 4-bolt, 35mm length

HANDLEBARS

Butted 31.8mm alloy riserbar, 60mm rise, 8 degree back sweep, 6 degree up

GRIPS

P. Grip, flanged soft compound, closed end, 150mm

SADDLE

P. Combo, 1pc co-molded composite saddle and alloy seat post combination

BRAKES

FRONT BRAKE

Avid BB5, mechanical disc, 160mm G2 Clean Sweep rotor

REAR BRAKE

Avid BB5, mechanical disc, 140mm G2 Clean Sweep rotor

BRAKE LEVERS

Avid FR-5, alloy, two-finger, linear pull

ACCESSORIES

PEDALS

SBC Lo Pro plastic platform, loose ball, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	L
Ground-Top	872mm
Bottom Bracket Height - Low Setting	317mm
Top Tube Length (Horizontal)	600mm
Head Tube Height	128mm
Head Tube Angle - Low Setting	69.5°
Seat Tube Angle (Actual) - Low Setting	69°
Seat Tube Angle (Effective) - Low Setting	71°
Top Tube Length (Actual)	573mm
Seat Tube Length - Center to Top	332mm
Wheel Base	1049mm
Standover Height	712mm
Stack	555mm
Reach	382mm
Chainstay Length	390mm
