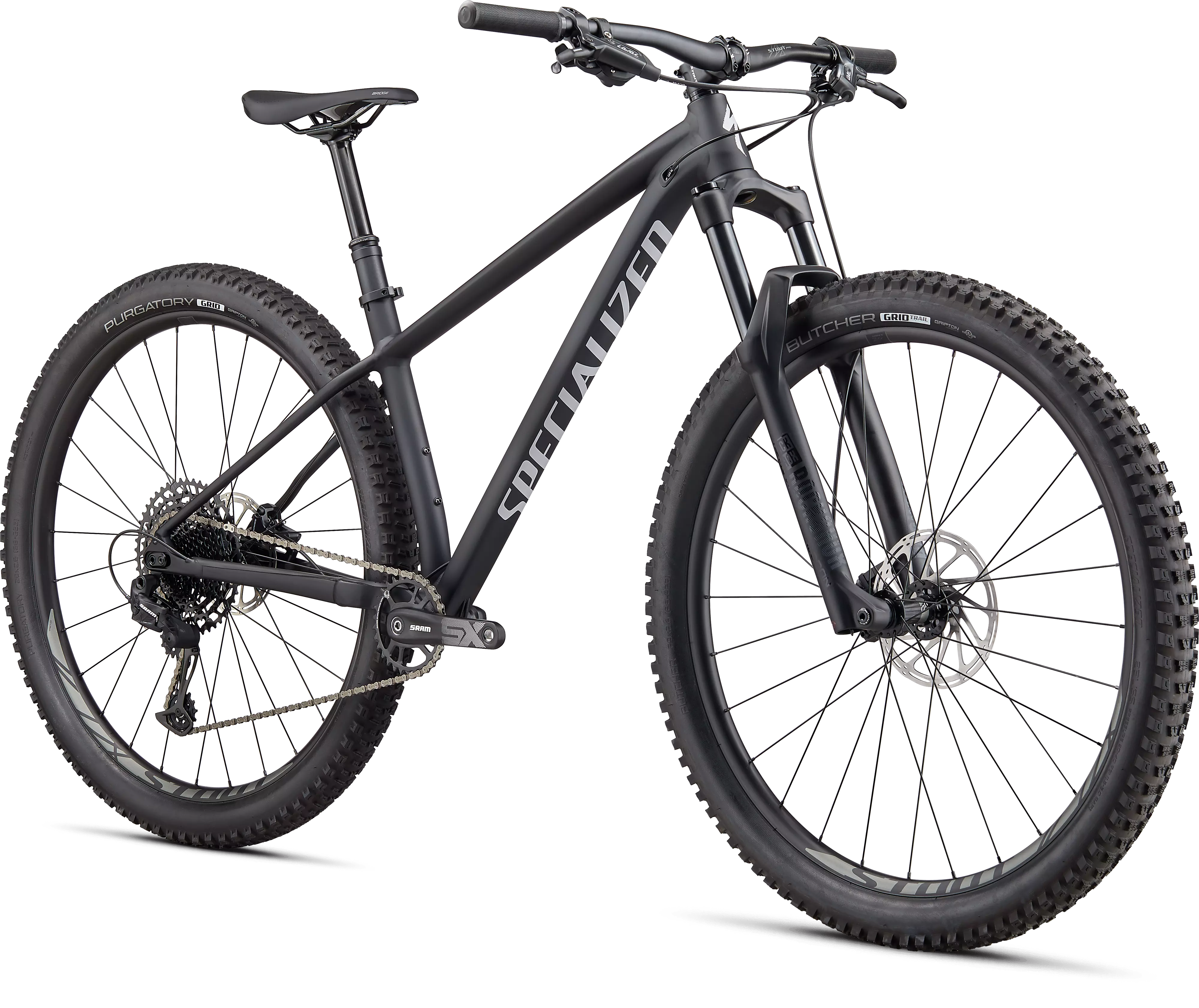

2020 Fuse Comp 29

£1,299.00

The Fuse Comp 29 punches way above its weight class thanks to a light-yet-burly M4…

Colour:

Satin Black/Dove Grey

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

The Fuse Comp 29 punches way above its weight class thanks to a light-yet-burly M4 aluminum chassis, frame geometry that lends the bike both playfulness and capability, and parts that withstand a serious flogging.

ROWDY BY DESIGN

The Fuse is loaded with smart touches. The wide-diameter down tube boosts stiffness. The low-slung top tube improves maneuverability. And while this Fuse’s 29x2.6 tires give it a precise, nimble feel, the M4 aluminum frame is also compatible with 27.5+ wheels and tires.

PERFECTLY DIALED

If you fail to nail the geometry, advanced materials and innovative designs still amount to nothing on the trail. Fuse gets it right. The long reach gives you even weight distribution. The slack head angle lends confidence on sketchy descents. The steep seat angle makes quick work of steep climbs.

BUILT TO SHRED

• 130-millimeters of plush suspension courtesy of a RockShox Recon RL fork.

• Highlights include powerful SRAM Level disc brakes and a TransX dropper post.

• SX Eagle 12-speed drivetrain gives you single-ring simplicity and gearing to spare.

Technical Specifications

WHEELS & TIRES

Spokes

Stainless, 14g

WHEELS

Rims

Alloy, disc only, double-wall, 29mm internal width, 28h, tubeless compatible

Front Hub

Specialized, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub

Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"

Rear Tire

Purgatory, GRID, GRIPTON® compound, 2Bliss Ready, 29x2.6"

Inner Tubes

Standard, Presta valve

DRIVETRAIN

Rear Derailleur

SRAM SX Eagle, 12-speed

Shift Levers

SRAM SX Eagle, trigger, 12-speed

Cassette

SRAM PG-1210 Eagle, 11-50t

Chain

SRAM SX Eagle, 12-speed

Crankset

SRAM SX Eagle, 170/175mm

Chainrings

30T

Bottom Bracket

SRAM Powerspline

COCKPIT

SeatPost

TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm

Stem

Stout 3D-forged alloy, 31.8mm, 6-degree rise

Tape

Specialized Trail Grips

Saddle

Bridge Comp, Hollow Cr-mo rails, 155/143mm

Handlebars

Stout Riser, double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm

BRAKES

Front Brake

SRAM Level, hydraulic disc, 200/180mm

Rear Brake

SRAM Level, hydraulic disc, 180/160mm

FRAMESET

Frame

Specialized M4 Premium Aluminum, 148mm thru-axle, adjustable dropout, SS compatible, tapered head tube, internal cable routing

Seat Binder

Alloy, 38.6mm

SUSPENSION

Fork

RockShox Recon RL, air spring, 46mm offset, 130mm of travel

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	XS	S	M	L	XL
Crank Length	170mm	170mm	170mm	170mm	175mm
Handlebar Width	750mm	750mm	780mm	780mm	780mm
Stem Length	45mm	45mm	45mm	45mm	45mm
Saddle Width	155mm	143mm	143mm	143mm	143mm
Seatpost Length	356mm	356mm	406mm	456mm	456mm
Seat-Tube Angle	74°	74°	74°	74°	74°
Head-Tube Length	95mm	95mm	95mm	110mm	125mm
Head-Tube Angle	66.5°	66.5°	66.5°	66.5°	66.5°
Front-Center	698mm	718mm	738mm	764mm	790mm
B-B Drop	60mm	60mm	60mm	60mm	60mm
B-B Height	315mm	315mm	315mm	315mm	315mm
Bike Stand-Over Height	727mm	747mm	750mm	754mm	793mm
Fork Length (full)	540mm	540mm	540mm	540mm	540mm
Top-Tube Length (horizontal)	579mm	599mm	619mm	643mm	667mm
Seat-Tube Length	340mm	375mm	410mm	455mm	505mm
Stack	625mm	625mm	625mm	639mm	652mm
Reach	400mm	420mm	440mm	460mm	480mm
Trail	113mm	113mm	113mm	113mm	113mm
Fork Rake/Offset	46mm	46mm	46mm	46mm	46mm
Wheelbase	1122mm	1142mm	1162mm	1188mm	1214mm
