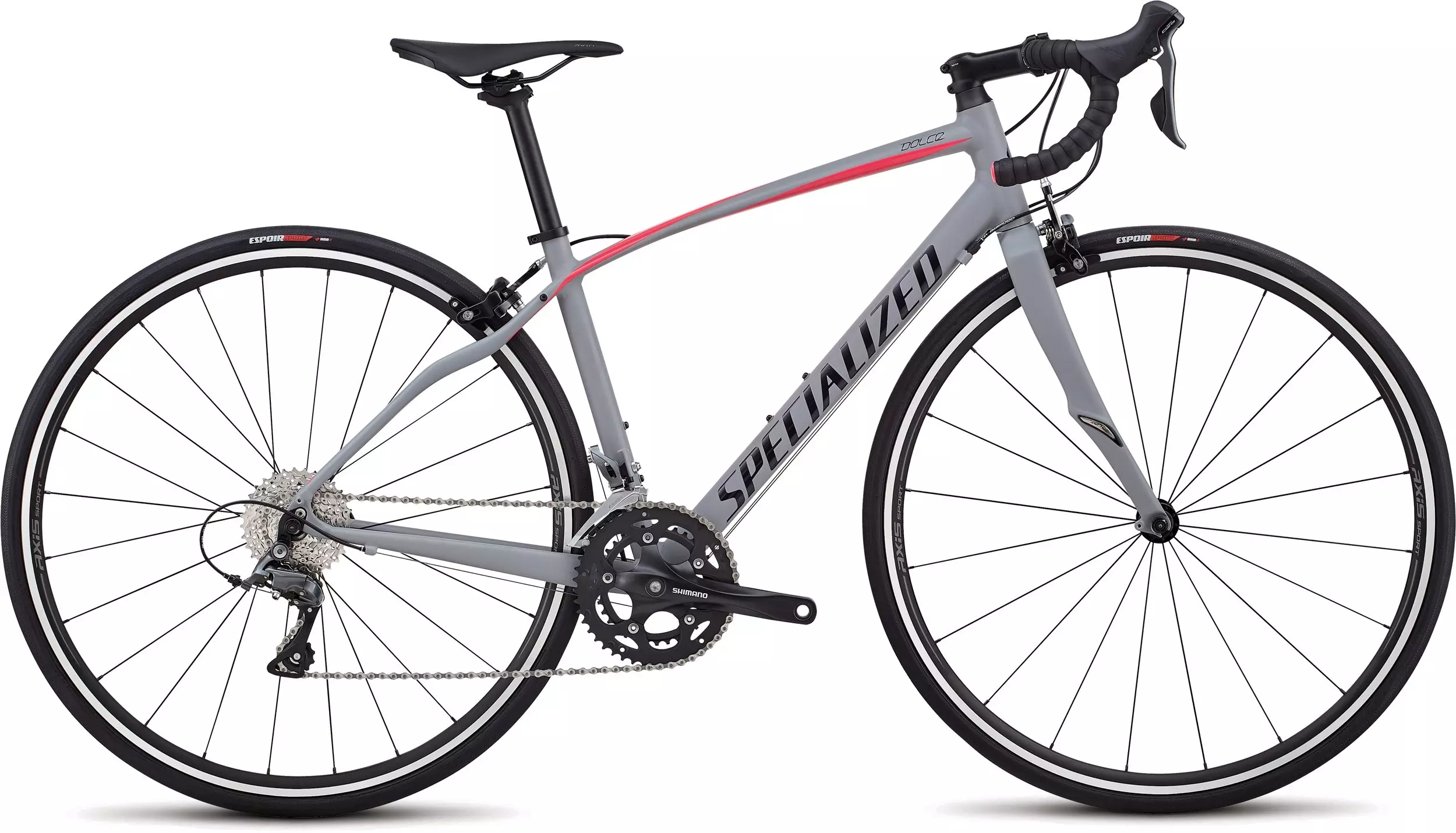

Dolce | Specialized.com

Technical Specifications

FRAMESET

FRAME	Specialized A1 Premium Aluminum, Women's Endurance Geometry, women's fully manipulated tube sets, threaded bottom bracket, 1-1/8" lower bearing, 130mm spacing
FORK	Specialized FACT carbon fiber, alloy steerer/crown, Zertz inserts
SEAT BINDER	Bolt type, alloy, 31.8mm

WHEELS

FRONT WHEEL	Axis Sport
REAR WHEEL	Axis Sport
FRONT TIRE	Espoir Sport, 60 TPI, wire bead, double BlackBelt protection, 700x25mm
REAR TIRE	Espoir Sport, 60 TPI, wire bead, double BlackBelt protection, 700x25mm
INNER TUBES	700x20/28mm, 40mm Presta valve

DRIVETRAIN

FRONT DERAILLEUR	Shimano Claris, braze-on
REAR DERAILLEUR	Shimano Claris, 8-speed
SHIFT LEVERS	Shimano Claris 2000, 8-speed
CASSETTE	Sunrace, 8-speed, 11-32t
CHAIN	KMC X8, 8-speed w/ Missing Link™
CRANKSET	Shimano RS200
CHAINRINGS	46/34T

COCKPIT

STEM	Specialized, 3D forged alloy, 4-bolt, 7-degree rise
HANDLEBARS	Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
TAPE	Specialized S-Wrap
SADDLE	Women's Body Geometry Myth Sport thin, steel rails, 155mm
SEATPOST	Alloy, 2-bolt clamp, 12mm offset, 27.2mm, anti-corrosion hardware

BRAKES

FRONT BRAKE	Tektro caliper, long reach, dual-pivot
REAR BRAKE	Tektro caliper, long reach, dual-pivot

ACCESSORIES

PEDALS

Nylon, 105x78x28mm, loose balls w/ reflectors

* Specifications are subject to change without notice

Manual Downloads

Specialized Bicycle Owner's Manual (All Languages)

2018 Rider/Bike Weight Limits and Terrain Conditions

Trainer Usage Addendum to the Bicycle Owner's Manual

Specialized Bicycle Owner's Manual Addendum: Riding With Kids

Specialized Mission Control App (Android)

Specialized Bicycle Owner's Manual (English)

Specialized Ride App (Android)

2017 Rider/Bike Weight Limits and Terrain Conditions

Specialized Ride App (iOS)

Dodatek - POUŽITÍ TRENAŽÉRU

Specialized Mission Control App (iOS)

Dolce - Geometry

Geometry

	44	48	51	54	57
Crank Length	165mm	165mm	170mm	170mm	170mm
Stem Length	70mm	80mm	90mm	90mm	100mm
Seatpost Length	350mm	350mm	350mm	400mm	400mm
Saddle Width	155mm	155mm	155mm	155mm	155mm
Handlebar Width	360mm	380mm	400mm	400mm	400mm
Reach	360mm	370mm	370mm	374mm	390mm
Top Tube Length, Horizontal	504mm	517mm	527mm	536mm	564mm
Stack	519mm	532mm	548mm	567mm	589mm
Wheelbase	975mm	984mm	984mm	994mm	1020mm
Chainstay Length	412mm	415mm	415mm	415mm	417mm
Front Center	574mm	580mm	580mm	590mm	614mm
BB Drop	73mm	73mm	73mm	73mm	72mm
BB Height	269.5mm	269.5mm	269.5mm	269.5mm	271mm
Seat Tube Angle	74.5°	74.5°	74°	74°	73.5°
Head Tube Angle	70.5°	71.5°	72°	72°	72°
Seat Tube Length	363mm	392mm	422mm	457mm	487mm
Head Tube Length	120mm	130mm	145mm	165mm	190mm
Bike Standover Height	679.5mm	699.8mm	720.8mm	750.6mm	778.5mm
Fork Rake/Offset	49mm	49mm	49mm	49mm	49mm
Fork Length, Full	369mm	369mm	369mm	369mm	369mm
Trail	69mm	63mm	60mm	60mm	60mm

Geometry Chart
