CruX Elite

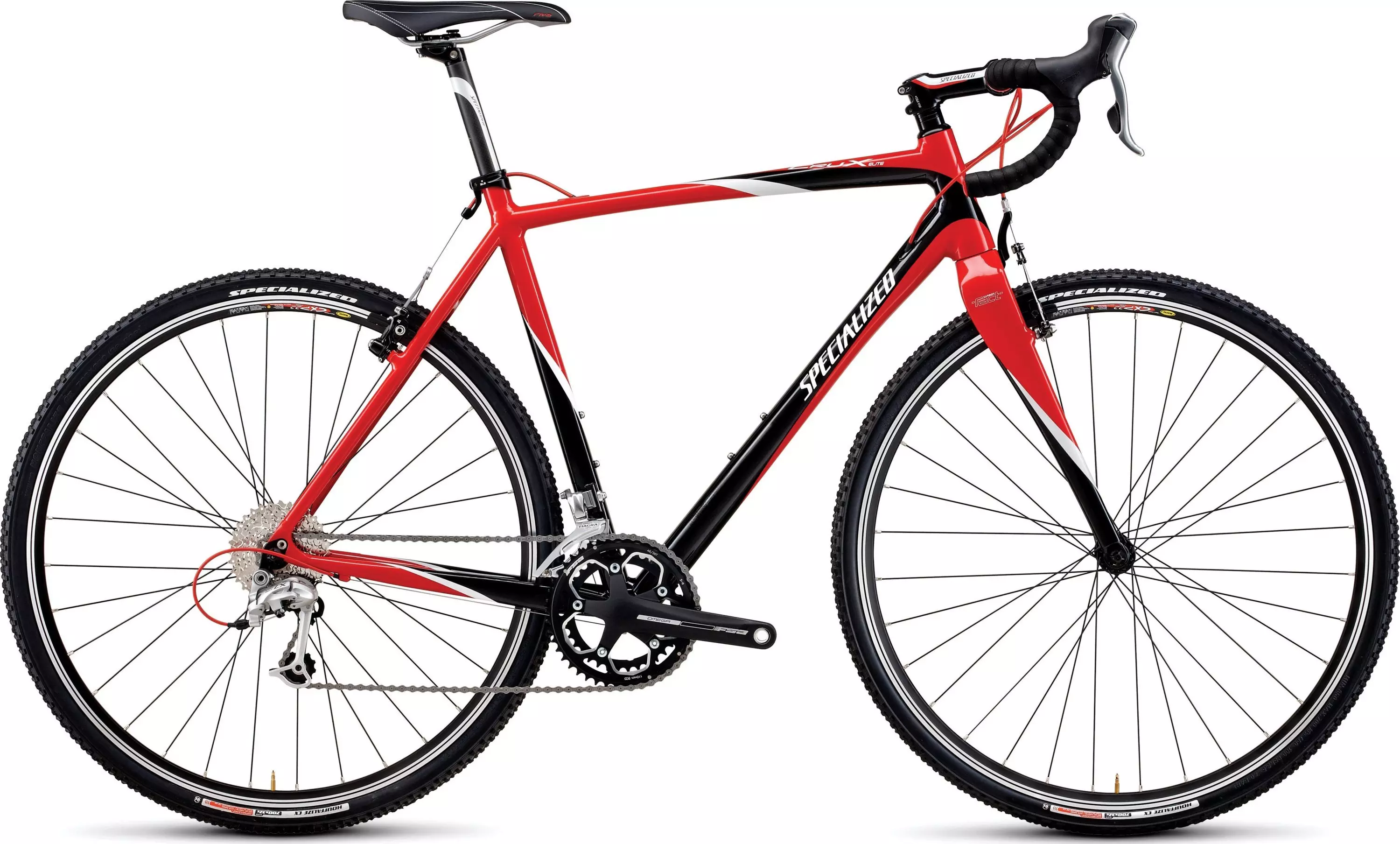

2011 CruX Elite

The all-new CruX is honed by and for the 'cross course with race-optimized geometry, internal cable routing, outstanding braking, and an unparalleled combination of light weight and stiffness.

Technical Specifications

FRAMESET

FRAME

Specialized E5 aluminum, fully manipulated tubing, smooth weld, semi-compact race design, shaped TT, 1-1/2"" lower bearing, internal cable routing, integrated headset, threaded BB

FORK

S-Works FACT carbon legs, alloy crown and steerer, 1-1/2"" lower bearing

HEADSET

1-1/8"" upper and 1-1/5"" lower Cr-Mo cartridge bearings integrated w/ headset, 8mm cone spacer with 20mm of spacers

SEAT BINDER

Forged alloy, 31.8mm

WHEELS

REAR HUB

Forged Alloy Hub, Sealed, 32 hole, for J Bend Round spokes, GCC

SPOKES

Stainless 14g

FRONT TIRE

Specialized Houffalize CX Sport, 700x32c, aramid bead, 60TPI, Dual Compound

REAR TIRE

Specialized Houffalize CX Sport, 700x32c, aramid bead, 60TPI, Dual Compound

INNER TUBES

Standard presta valve

RIMS

Mavic CXP22

FRONT HUB

Forged alloy Hub, sealed bearings, 32 hole, for J bend round spokes

DRIVETRAIN

FRONT DERAILLEUR

Shimano Tiagra

REAR DERAILLEUR

Shimano Deore LX

SHIFT LEVERS

Shimano Tiagra STI

CASSETTE

Shimano HG-50, 9-speed, 11-32t

CHAIN

HG-73

CRANKSET

FSA Omega

CHAINRINGS

46 x 36T

BOTTOM BRACKET

With crankset

COCKPIT

STEM

Specialized Comp-Set, 3D forged alloy, 4-position adjustable, 4-bolt 31.8mm clamp

HANDLEBARS

Specialized CX Comp 6061 alloy, short drop

TAPE

Specialized S-Wrap w/ 2.5 gel pads

SADDLE

Body Geometry Riva Road, w/ steel rails

SEATPOST

Specialized Comp, FACT carbon w/ Zertz insert, aluminum head, two-bolt clamp, 27.2mm

BRAKES

FRONT BRAKE

Tektro wide canti

REAR BRAKE

Tektro narrow canti

ACCESSORIES

PEDALS

Black cage, body & toe clips w/ strap

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	46	49	52	54	56	58	61
Seat-Tube Angle	75.5°	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	100mm	115mm	125mm	140mm	155mm	170mm	190mm
Seat-Post Length	300mm	300mm	350mm	350mm	350mm	350mm	350mm
Head-Tube Angle	69.5°	70.5°	71.5°	71.5°	72°	72.5°	73°
Chain-Stay Length	425mm	425mm	425mm	425mm	425mm	425mm	425mm
Top-Tube Length, Horizontal	510mm	516mm	537mm	549mm	560mm	570mm	587mm
Front-Center	593mm	595mm	595mm	601mm	606mm	609mm	615mm
Handle-Bar Width	400mm	400mm	420mm	420mm	440mm	440mm	440mm
Stand-Over Height	764mm	782mm	795mm	809mm	825mm	841mm	862mm
Seat-Tube Length, B-B Center to Top	460mm	490mm	520mm	540mm	560mm	580mm	610mm
Fork Rake	51mm	51mm	51mm	49mm	49mm	49mm	49mm
B-B Drop	71mm	71mm	71mm	69mm	69mm	67mm	67mm
Trail	75mm	69mm	62mm	64mm	61mm	58mm	55mm
Wheelbase	1008mm	1009mm	1009mm	1016mm	1022mm	1025mm	1031mm
Crank Length	170mm	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	75mm	75mm	90mm	90mm	100mm	110mm	120mm
