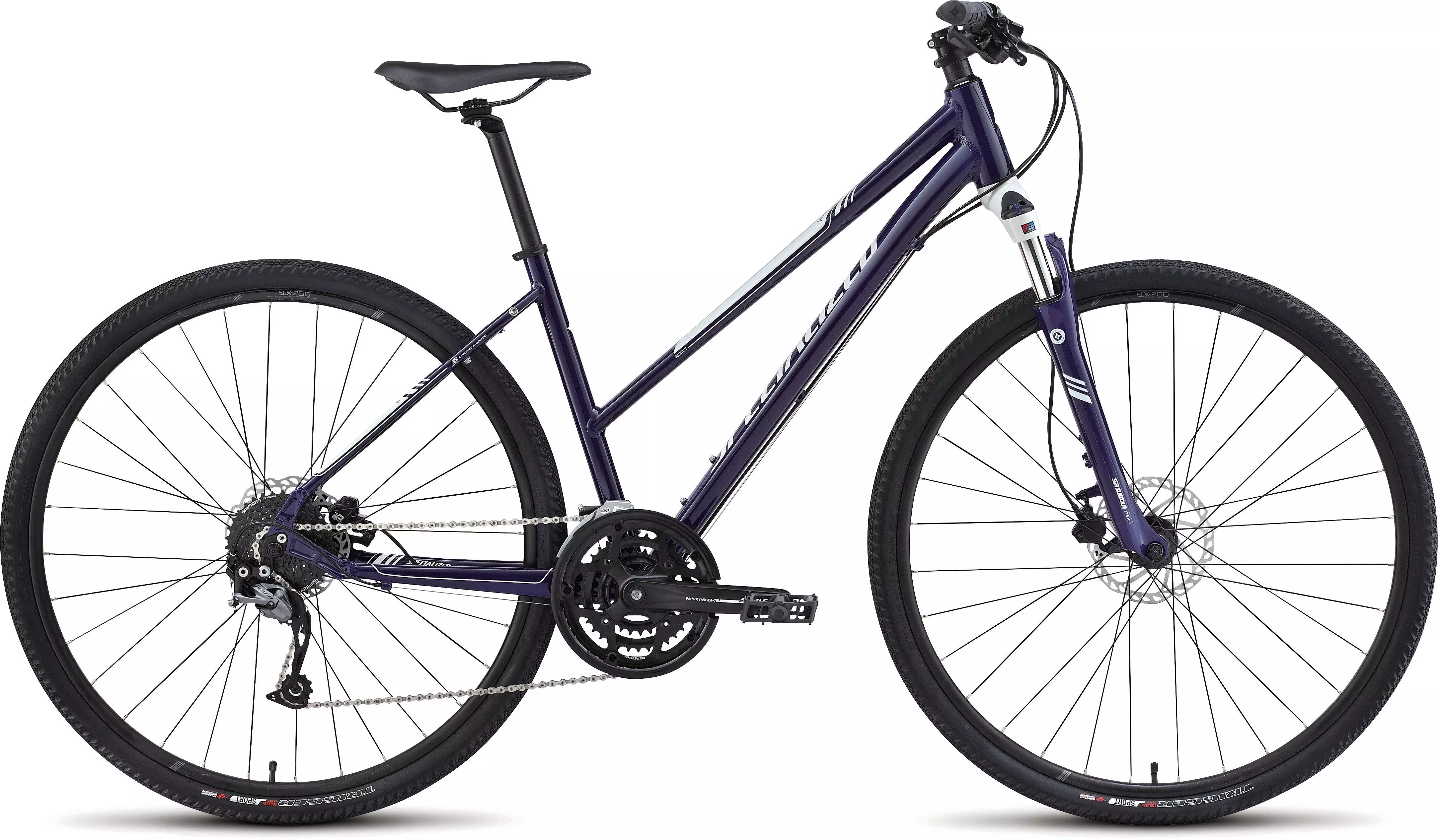

2015 Ariel Sport Disc Step Through

0 Reviews

With elements of both a road bike and mountain bike, the Ariel is for the female…

Colour:

Gloss Indigo/White

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

With elements of both a road bike and mountain bike, the Ariel is for the female rider looking to zip through the weekday commute and head out for weekend adventure. The Ariel Sport Disc Step Through features an A1 Premium Aluminium frame, Tektro Auriga hydraulic disc brakes, and 63mm-travel SR Suntour fork for a plush ride.

Versatile, A1 Premium Aluminium step-through frame w/ rack/mudguard mounts
Custom SR Suntour NEX 63mm-travel fork w/ exclusive Multi-Circuit Damping and hydraulic lockout
Body Geometry Women's Riva Sport Plus saddle features generous padding for all-day comfort
Custom SR Suntour NEX 63mm-travel fork w/ exclusive Multi-Circuit Damping and hydraulic lockout
Versatile, A1 Premium Aluminium step-through frame w/ rack/mudguard mounts
Body Geometry Women's Riva Sport Plus saddle features generous padding for all-day comfort
Versatile, A1 Premium Aluminium step-through frame w/ rack/mudguard mounts

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminium step through, smooth welds, forged dropouts, w/ mudguard/rack braze-ons, kickstand mount, internal light cable routing

HEADSET

Ahead, semi-integrated, loose ball, 8mm cone spacer

SEAT BINDER

Alloy, 31.8mm

SUSPENSION

FORK

Custom SR Suntour i-NEX, custom Multi-Circuit Damping, custom coil spring weights, 63mm travel, hydraulic lockout, preload adjust, 1-1/8" steerer, alloy lowers, Hi-Ten 28mm stanchions, post disc mount

WHEELS

RIMS

Alloy, double-wall, disc

FRONT HUB

Specialized Stout, Hi Lo disc, alloy, double-sealed, ground race, QR, 32h

REAR HUB

Specialized Stout, Hi Lo disc, alloy, double-sealed, loose ball bearings, QR, 32h

SPOKES

Stainless, 14g, black

FRONT TYRE

Specialized Trigger Sport, 60TPI, BlackBelt protection, 700x38mm

REAR TYRE

Specialized Trigger Sport, 60TPI, BlackBelt protection, 700x38mm

INNER TUBES

Standard, Schrader valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano M390, top swing, dual-pull

REAR DERAILLEUR

Shimano Alivio Shadow, 9-speed, SGS cage

SHIFT LEVERS

Shimano Acera Rapidfire Plus, 9-speed

CASSETTE

Shimano, 9-speed, 11-34

CHAIN

KMC X9, 9-speed, w/ reusable MissingLink

CRANKSET

Specialized Stout, forged alloy, 48/36/26T, w/ chainguard

CHAINRINGS

48/36/26

BOTTOM BRACKET

Square taper, cartridge bearings

COCKPIT

STEM

Specialized, 3D forged alloy, 4-bolt, 6-degree rise

HANDLEBARS

Specialized, double-butted 6061 alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm

GRIPS

Specialized Body Geometry XCT Women's, lock-on, closed end

SADDLE

Body Geometry Women's Riva Sport Plus, steel rails, 155mm

SEATPOST

Specialized alloy, 2-bolt, 15mm offset, 27.2mm

BRAKES

FRONT BRAKE

Tektro Auriga, hydraulic disc, resin/metallic pads, tooled women's reach adjust

REAR BRAKE

Tektro Auriga, hydraulic disc, resin/metallic pads, tooled women's reach adjust

BRAKE LEVERS

Tektro Auriga, hydraulic, women's short reach

ACCESSORIES

PEDALS

Plastic, 9/16", w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
