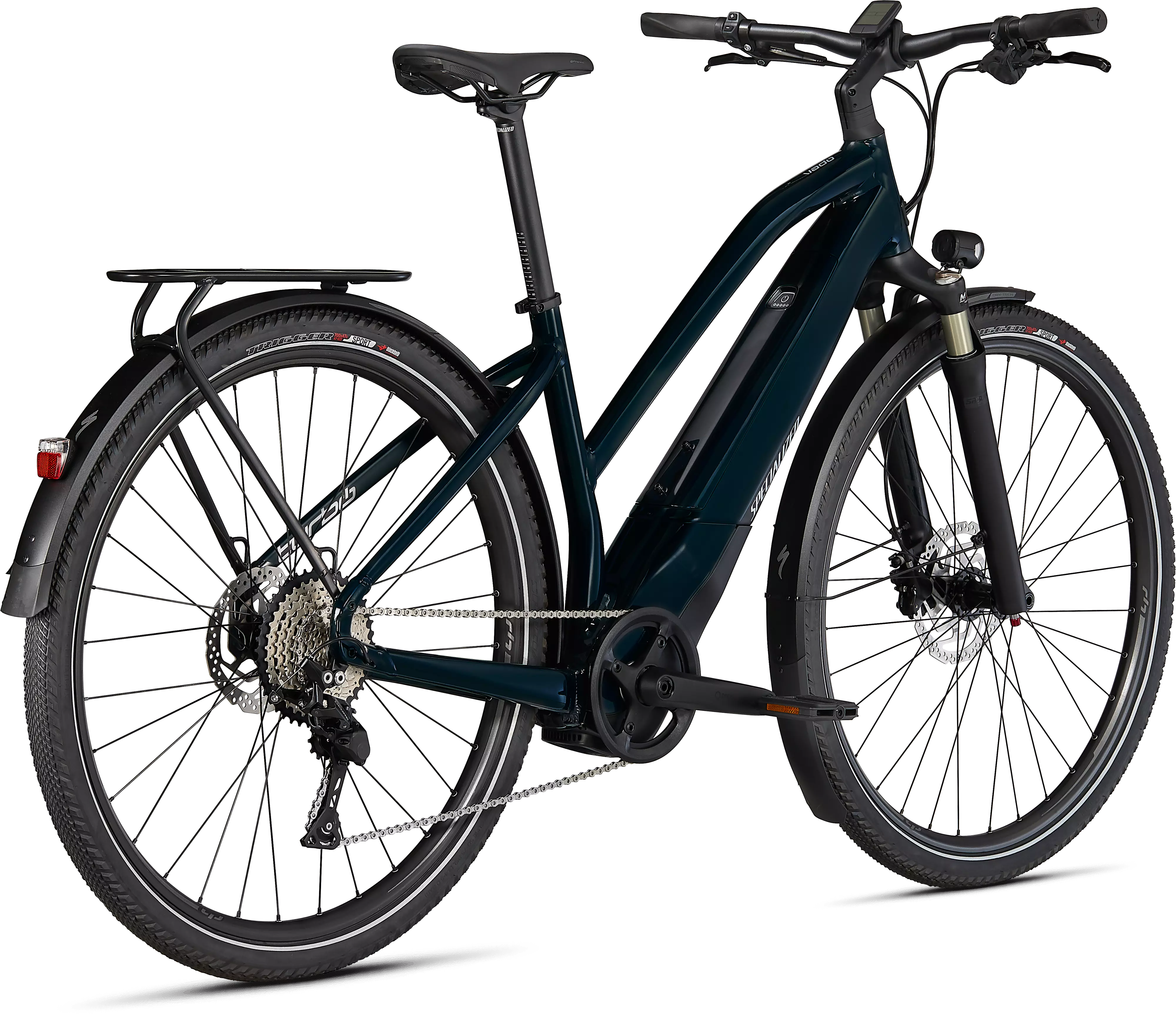

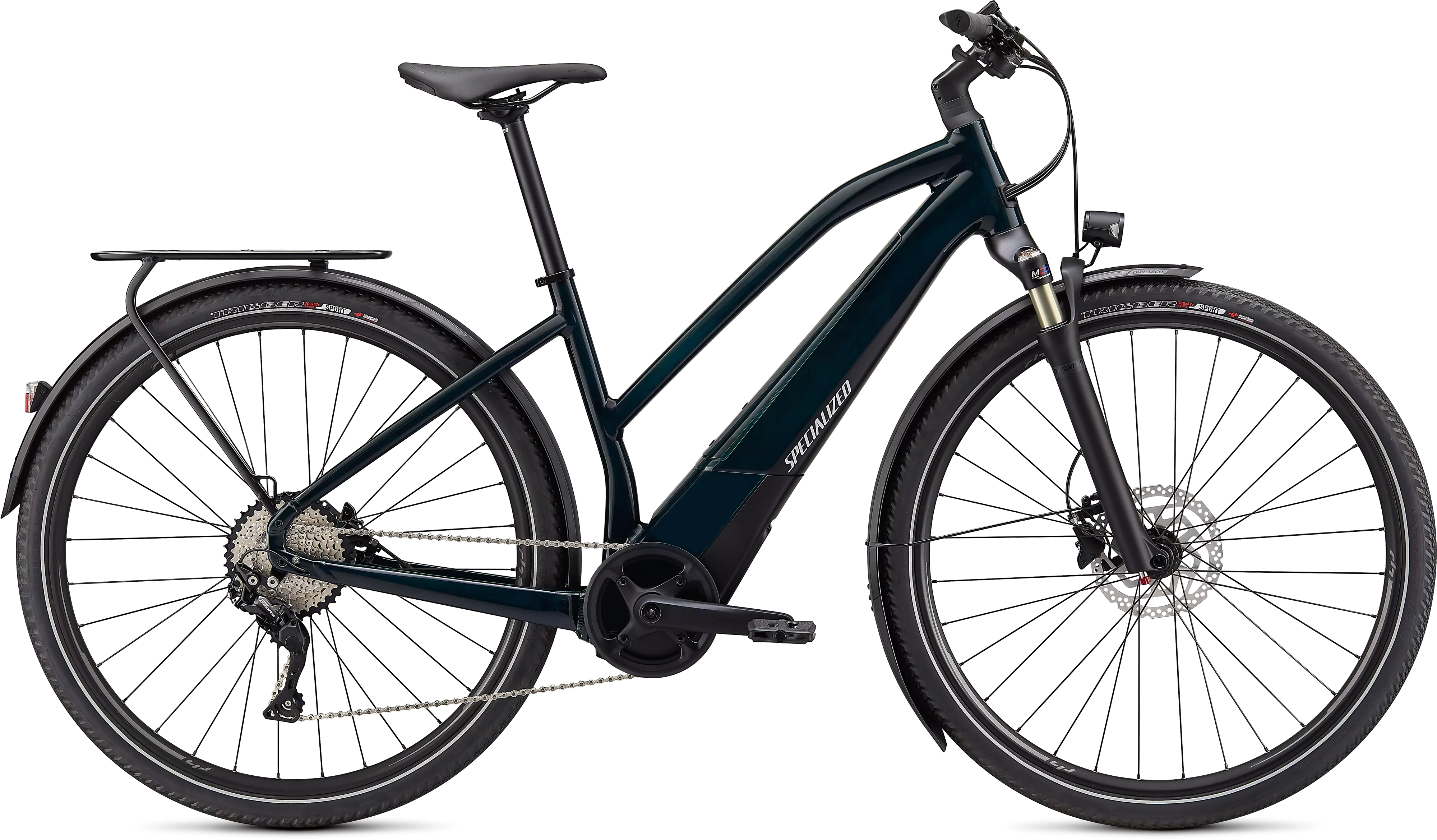

    2021 Turbo Vado 4.0 Step-Through

    $11.410.000

    0 Reseñas

    It's a busy world out there, and the sad thing is, it's getting faster all of the…

    Color:

    Forest Green / Black / Liquid Silver

    ¿Cuál es mi talla?

    Ingresa tu altura y calcularemos tu talla.

    Altura:

    Para obtener un resultado más preciso, sumá la longitud de tu canilla.

    Seleccione un Tamaño

    Detalles del producto

    Icon

    It's a busy world out there, and the sad thing is, it's getting faster all of the time. That's why we recommend faster bikes for busy lives, like the Turbo Vado 4.0 Step-Through. It takes our award-winning and exclusive technology and tailors it to a package that's designed for getting you around your day-to-day life quicker than ever before. It's you, only faster.

    Beginning with the integrated Specialized 1.2 motor, the Turbo Vado proves itself as the ultimate city bike. The 1.2 motor features a silent operating design with our Custom Rx Street Tune that takes the output and makes it the most usable for an urban environment. Think of it this way: The more power you put out, the more power the motor puts out, and this makes accelerations from a standstill both quick and efficient. The belt driven motor is also smooth, silent, and free of annoying vibrations. And the max speed? 28mph.

    For the Vado 4.0, we developed a custom Specialized U1-500 battery that seamlessly integrates into the frame, is lockable, and easily removable for simplified charging. In other words, there's plenty of juice to take you to and from work, a trip to the grocery store, or even to that new café on the other side of the city.

    The new Turbo Connect Display (TCD) is the best way to view data on your Turbo. It not only displays basic ride metrics (speed, cadence, power, battery level, and time), but it also lets you toggle between modes. Its design, meanwhile, is rugged and clean, and it has multiple mounting options for either road or mountain setups. As for the latest version of the Mission Control App, you’ll find that it now has more features and is even more intuitive to use. It lets you custom-tune nearly every aspect of the bike with ease, monitor your power usage, control your range, perform basic system diagnoses, and record/upload rides.

    To top off all of the innovative features, we chose a worry-free spec that features Shimano 10-speed components, hydraulic disc brakes, racks, front/rear lights, and fenders.

    • The Turbo Vado frame features an alloy step-through frame that's pretty light and super easy to get on or off of.

    • The Turbo Vado’s Specialized 1.2 motor has been fully integrated with the frame, and it's been custom-tuned for city riding. We designed it to intuitively react to the force of your pedaling, so the harder you pedal, the more power it delivers. And with an internal belt drive design, it does this without added vibration for the smoothest and most silent ride possible.

    • We made the custom 500 Wh battery to be fully integrated with the frame, removable for easy charging, and lockable for added security. It communicates with the display and has multiple modes to maximize the overall efficiency and range. For range estimates based upon a variety of variables, please refer to our Turbo Range Calculator.

    Especificaciones técnicas

    Icon

    COCKPIT

    SeatPost

    Specialized 2-bolt head, forged alloy, 8mm offset, micro-adjust, 30.9mm

    Saddle

    Bridge Sport, Steel rails, 155mm

    Stem

    Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp

    Tape

    Specialized Body Geometry Contour, lock-on

    Handlebars

    Specialized, alloy, 9-degree backsweep, 15mm rise, 31.8mm

    DRIVETRAIN

    Shift Levers

    Shimano Deore, RapidFire Plus, 10-speed w/ Optical Gear Display

    Rear Derailleur

    Shimano Deore, Shadow Plus, GS cage, 10-speed

    Cassette

    Shimano Deore, 10spd, 11-42t

    Chain

    KMC X10eT, 10-speed w/ Missing Link™

    Crankset

    Custom alloy forged crankarms

    Chainrings

    40T

    ACCESSORIES

    Kickstand

    Specialized kickstand, 40mm mount

    Fenders

    DRYTECH fenders, 52mm width, stainless steel fenderstays

    Bell

    Simple bell

    Pedals

    Specialized Commuter w/ grip tape & reflectors

    WHEELS & TIRES

    Inner Tubes

    Standard 40mm PV 700x32-50

    WHEELS

    Rims

    700c disc, double-wall alloy, pinned, 32h

    Rear Hub

    Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h

    Front Hub

    Specialized front hub disc, sealed bearings, 15x100mm thru-axle, 32h

    Spokes

    DT Swiss Industry

    Front Tire

    Trigger Sport Reflect, 700x47c

    Rear Tire

    Trigger Sport Reflect, 700x47c

    FRAMESET

    Frame

    E5 Aluminum, bottom bracket motor mount, Fitness/Transportation Geometry, fully integrated & lockable down tube battery, internal cable routing, fender/rack mounts, Smooth Welds

    Fork

    SR Suntour NCX E25, steel steerer, 15mm thru-axle, 44mm offset, 50mm of travel

    Seat Binder

    Alloy, bolt-type, 34.9mm

    E-BIKE

    Motor

    Specialized 1.2, custom Rx Street-tuned motor, 250W nominal

    UI/Remote

    Specialized TCD-W w/ handlebar remote & built-in anti-theft feature, Bluetooth® connectivity, 5 available display pages

    Battery

    Specialized U1-500, On/Off button, state of charge display, 500Wh

    Charger

    Custom charger, 42V4A w/ Rosenberger plug, 100-240V

    Wiring Harness

    Custom Specialized harness

    BRAKES

    Front Brake

    Shimano BR-MT200, hydraulic disc, 180mm

    Rear Brake

    Shimano BR-MT200, hydraulic disc, 180mm

    * Pesos basados en cuadros pintados de producción como se muestra en la imagen. Los pesos reales variarán en función del color, tamaño del cuadro y variación de componentes. Las especificaciones están sujetas a cambios sin previo aviso.

    Geometría

    Icon
    SMLXL
    Largo de biela170mm170mm175mm175mm
    Largo de poste de asiento300mm350mm400mm400mm
    Ancho de manubrio680mm680mm680mm680mm
    Largo de avance60mm75mm75mm90mm
    Saddle Width155mm155mm155mm155mm
    Stack619mm629mm629mm652mm
    Alcance396mm404mm428mm441mm
    Seat Tube Length, BB Center to Top Vertical400mm450mm485mm535mm
    BB Drop-70mm-70mm-70mm-70mm
    Largo de vaina inferior478mm478mm478mm478mm
    Ángulo de tubo de dirección70°70°70°70°
    Rake de horquilla44mm44mm44mm44mm
    Trail86mm86mm86mm86mm
    Distancia647mm658mm683mm704mm
    Distancia entre ejes1116mm1127mm1152mm1173mm
    Altura de standover715mm720mm727mm744mm
    Largo de tubo de dirección145mm145mm155mm170mm
